Manufacturing of Mini-Channel by Electrical Chemical Machining Processes

Abstract:

The manufacturing industry is now growing rapidly in the area of non-conventional machining, especially Electrical Chemical Machining (ECM). The ECM can be used for machining of very hard material and very complex shape. This research is performed in order to manufacture mini-channel, which has a complex shape. The ECM machine cutting conditions are as follow; voltage: 7 Volt, feed rate: 1 .0 mm/minute, electrolyte: Natrium Cloride (NaCl), electrolyte concentration: 15 %, electrolyte speed: 3.32 m/s. The result shows that the mini-channel can be manufactured with the average of Material Removal Rate 0.035 g/min with the overcut average is 0.481 mm, and the surface roughness is 5.19 micro meter.

You might also be interested in these eBooks

Materials and Technologies in Modern Mechanical Engineering

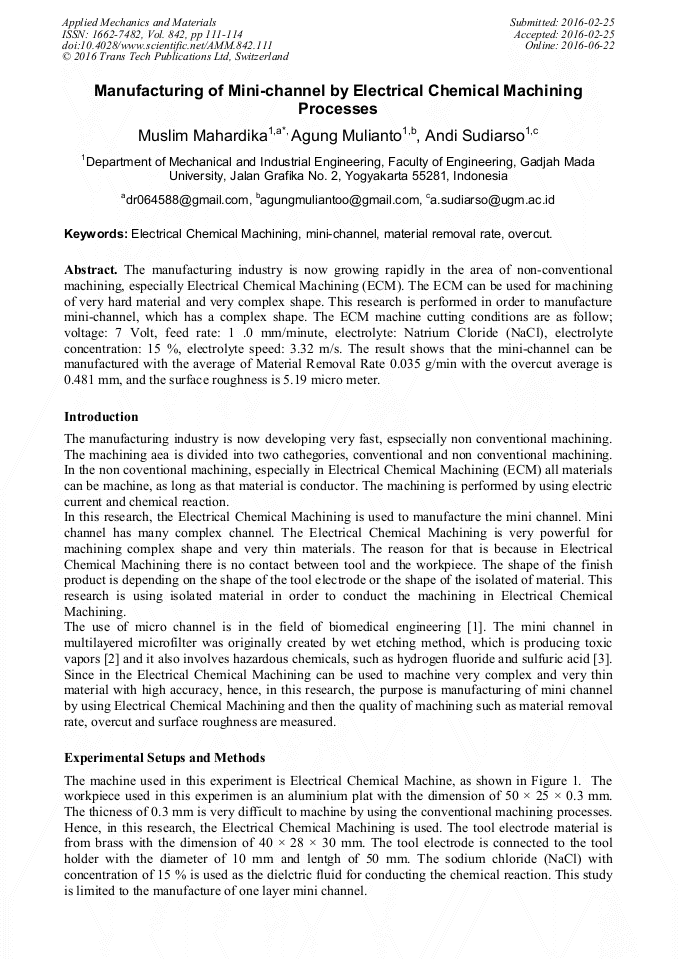

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 842)

Pages:

111-114

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.842.111

Citation:

Cite this paper

Online since:

June 2016

Authors:

Muslim Mahardika*, Agung Mulianto, Andi Sudiarso

Keywords:

Electrical Chemical Machining, Material Removal Rate, Mini-Channel, Overcut

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Y. Gu and N. Miki, Multilayered Microfilter Using A Nanoporous PES Membrane and Applicable As the Dialyzer of A Wearable Artificial Kidney, J of Micromechanics and Microengineering 19, 1-8 (2009).

DOI: 10.1088/0960-1317/19/6/065031

Google Scholar

[2] H.Y. Kang, An Introduction of Etch Process, Hynix, Gumi Process Team (2008).

Google Scholar

[3] I.K. Abdul, Using Wet & Dry Etching Technologies to Etch Si-Wafers, Journal of College of Education, 5 (2010).

Google Scholar
