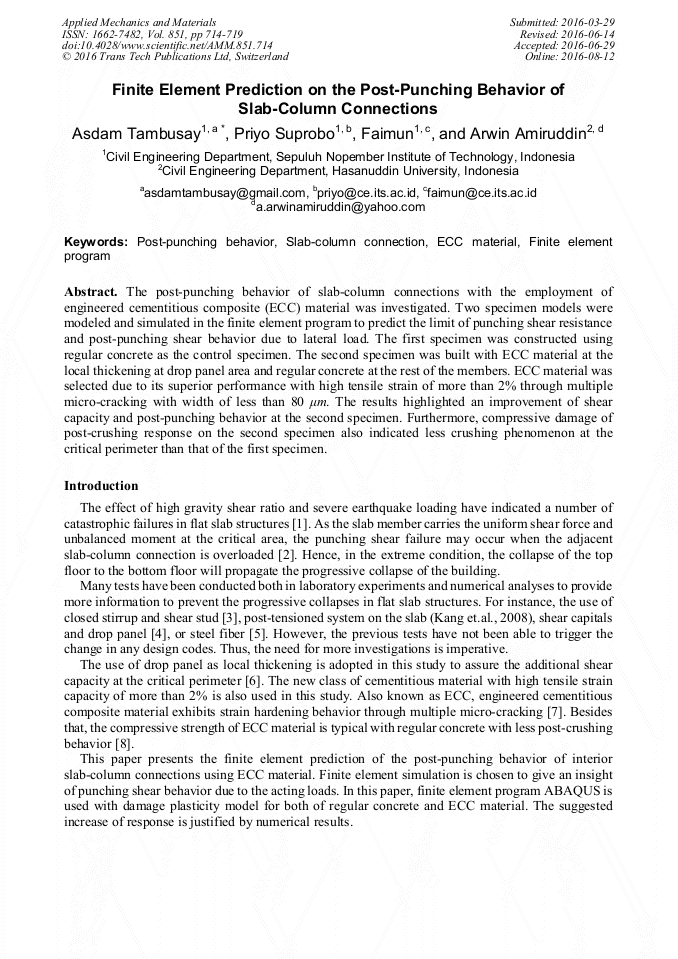

Finite Element Prediction on the Post-Punching Behavior of Slab-Column Connections

Abstract:

The post-punching behavior of slab-column connections with the employment of engineered cementitious composite (ECC) material was investigated. Two specimen models were modeled and simulated in the finite element program to predict the limit of punching shear resistance and post-punching shear behavior due to lateral load. The first specimen was constructed using regular concrete as the control specimen. The second specimen was built with ECC material at the local thickening at drop panel area and regular concrete at the rest of the members. ECC material was selected due to its superior performance with high tensile strain of more than 2% through multiple micro-cracking with width of less than 80 μm. The results highlighted an improvement of shear capacity and post-punching behavior at the second specimen. Furthermore, compressive damage of post-crushing response on the second specimen also indicated less crushing phenomenon at the critical perimeter than that of the first specimen.

• Periodical: Applied Mechanics and Materials (Volume 851)
• Pages: 714-719
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.851.714
• Online since: August 2016
• Authors: Asdam Tambusay*, Priyo Suprobo, Faimun Faimun, Arwin Amiruddin
• Keywords: ECC Material, Finite Element Program, Post-Punching Behavior, Slab-Column Connection

References

[1] E. D. Redl, Post-Punching Response of Flat Plate Slab-Column Connections, Master Thesis, Department of Civil Engineering and Applied Mechanics, McGill University, Montreal, Canada, (2009).

[2] I. N. Robertson, G. Johnson, Cyclic Lateral Loading of Non-Ductile Slab-Column Connections, ACI Struct. J. 103(3) (2006) 356-364.

[3] I. N. Robertson, T. Kawai, J. Lee, B. Enomoto, Cyclic Testing of Slab-Column Connections with Shear Reinforcement, ACI Struct. J. 99(5) (2000) 605-613.

[4] S. Megally, A. Ghali, Punching Shear Design of Earthquake-Resistant Slab-Column Connections, ACI Struct. J. 97(5) (2000) 720-730.

DOI: 10.14359/8807

[5] P. J. McHarg, W. D. Cook, D. Mitchell, Y. S. Yoon, Benefits of Concentrated Slab Reinforcement and Steel Fibers on Performance of Slab-Column Connections, ACI Struct. J. 97(2) (2000) 225-235.

DOI: 10.14359/851

[6] K. Qian, B. Li, Experimental Study of Drop-Panel Effects on Response of Reinforcement Concrete Flat Slabs after Loss of Corner Column, ACI Struct. J. 110(2) (2013) 319-330.

DOI: 10.14359/51684411

[7] M. Sahmaran, V. C. Li, Durability of Mechanically Loaded Engineered Cementitious Composites under Highly Alkaline Environments, J. Cement Based Compos. 30(2) (2008) 72-81.

DOI: 10.1016/j.cemconcomp.2007.09.004

[8] V. C. Li, T. Kanda, Engineered Cementitious Composites for Structural Application, ASCE J. Mater. Civil Eng. 10(2) (1998) 66-69.

[9] R. Gunadi, B. Budiono, I. Imran, A. Sofwan, The Behavior of Slab-Column Connections with Modified Shear Reinforcement under Cyclic Load, J. Eng. Tech. Sci. 46(1) (2014) 17-36.

DOI: 10.5614/j.eng.technol.sci.2014.46.1.2

[10] A. Tambusay, P. Suprobo, Faimun, A. A. Amiruddin, Analyses Behavior of Slab-Column Connections Using ECC Material Based on Finite Element Approach, EASEC-14, Ho Chi Minh City, Vietnam, (2016).

DOI: 10.11113/jt.v79.5380

[11] A. S. Genikomsou, M. A. Polak, Finite Element Analysis of a Reinforced Concrete Slab-Column Connection Using ABAQUS. Structure Congress ASCE (2014) 813-823.

DOI: 10.1061/9780784413357.072

[12] A. Wasatko, J. Pamin, M. A. Polak, Application of Damage-Plasticity Models in Finite Element Analysis of Punching Shear, Comput. Struct. 151 (2015) 73-85.

DOI: 10.1016/j.compstruc.2015.01.008

[13] ACI Committee 318, Building Code Requirements for Structural Concrete (ACI 318-11), American Concrete Institute, (2011).

DOI: 10.1061/(asce)1076-0431(1996)2:3(120.3)
