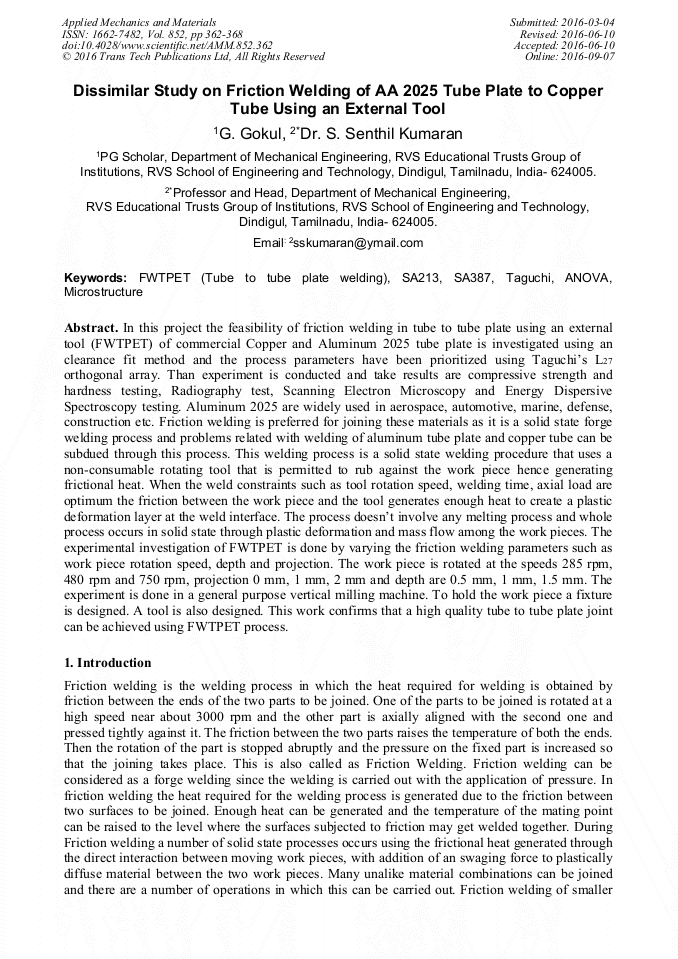

Dissimilar Study on Friction Welding of AA 2025 Tube Plate to Copper Tube Using an External Tool

Abstract:

In this project the feasibility of friction welding in tube to tube plate using an external tool (FWTPET) of commercial Copper and Aluminum 2025 tube plate is investigated using an clearance fit method and the process parameters have been prioritized using Taguchi’s L₂₇ orthogonal array. Than experiment is conducted and take results are compressive strength and hardness testing, Radiography test, Scanning Electron Microscopy and Energy Dispersive Spectroscopy testing. Aluminum 2025 are widely used in aerospace, automotive, marine, defense, construction etc. Friction welding is preferred for joining these materials as it is a solid state forge welding process and problems related with welding of aluminum tube plate and copper tube can be subdued through this process. This welding process is a solid state welding procedure that uses a non-consumable rotating tool that is permitted to rub against the work piece hence generating frictional heat. When the weld constraints such as tool rotation speed, welding time, axial load are optimum the friction between the work piece and the tool generates enough heat to create a plastic deformation layer at the weld interface. The process doesn’t involve any melting process and whole process occurs in solid state through plastic deformation and mass flow among the work pieces. The experimental investigation of FWTPET is done by varying the friction welding parameters such as work piece rotation speed, depth and projection. The work piece is rotated at the speeds 285 rpm, 480 rpm and 750rpm, projection 0 mm,1 mm,2 mm and depth are0.5 mm,1 mm,1.5 mm.The experiment is done in a general purpose vertical milling machine. To hold the work piece a fixture is designed. A tool is also designed. This work confirms that a high quality tube to tube plate joint can be achieved using FWTPET process.

• Periodical: Applied Mechanics and Materials (Volume 852)
• Pages: 362-368
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.852.362
• Online since: September 2016
• Authors: G. Gokul, S. Senthil Kumaran*
• Keywords: ANOVA, FWTPET (Tube To Tube Plate Welding), Microstructure, SA213, SA387, Taguchi

References

[1] Indira Rani M., Marpu R.N. and A.C.S. Kumar, A Study of process parameters of friction stir welded AA 6061 Aluminium alloy in O and T6 conditions, ARPN Journal of Engineering and Applied Sciences, VOL. 6, NO. 2, FEBRUARY (2011).

[2] Bussu G and Irving P E: Static and fatigue performance of friction stir welded 2024-T351 Aluminium joints,. Proc 1st Int Symposium on Friction Stir Welding, Thousand Oaks, CA, 14-16 June (1999).

DOI: 10.1016/s0142-1123(02)00038-5

[3] R. Nandan,T. DebRoy H.K.D.H. Bhadeshia; Recent Advances in Friction Stir Welding – Process, Weldment Structure and Properties, Progress in Materials Science 53 (2008) 980-1023.

DOI: 10.1016/j.pmatsci.2008.05.001

[4] Yong-Jai Kwon, Seong-Beom Shim, Dong-Hwan Park, Friction stir welding of 5052 aluminum alloy plates, Trans. Nonferrous Met. Soc. China 19(2009) s23−s27.

DOI: 10.1016/s1003-6326(10)60239-7

[5] G. Cao, S. Kou, friction stir welding of 2219 aluminum: behavior of theta (Al2Cu) particles, The Welding Journal, January (2005).

[6] J. Adamowski , C. Gambaro, E. Lertora, M. Ponte, M. Szkodo, analysis of FSW welds made of Aluminium alloy AW 6082-T6, Archives of Materials Science and Engineering, Volume 28, Issue 8, August (2007).

[7] H. J. LIU, H. FUJII, K. NOGI, Friction stir welding characteristics of 2017-T351 aluminum alloy sheet, JOURNAL OF MATERIALS SCIENCE 40 (2005) 3297 – 3299.

DOI: 10.1007/s10853-005-2705-1

[8] M. Vural, A. Ogur, G. Cam, C. Ozarpa, On the friction stir welding of Aluminium alloys EN AW 2024-0 and EN AW 5754-H22, Archives of Materials Science and Engineering, Volume 28, Issue 1, January (2007).

[9] D. M. Rodrigues, C. Leita˜o, R. Louro, H. Gouveia and A. Loureiro, High speed friction stir welding of Aluminium alloys, Science and Technology of Welding and Joining, (2010).

DOI: 10.1179/136217110x12785889550181

[10] SYazdanian, Z W Chen, Effect of friction stir lap welding conditions on joint strength of Aluminium alloy 6060, Processing, Microstructure and Performance of materials, IOP Conference series: Material Science and Engineering 4(2009).

DOI: 10.1088/1757-899x/4/1/012021
