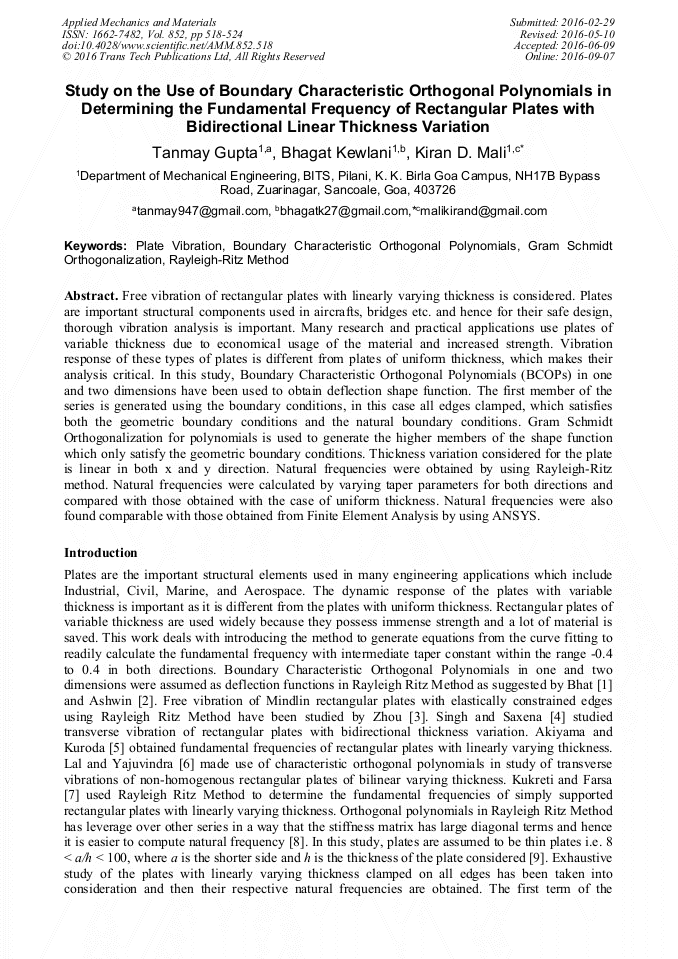

Study on the Use of Boundary Characteristic Orthogonal Polynomials in Determining the Fundamental Frequency of Rectangular Plates with Bidirectional Linear Thickness Variation

Abstract:

Free vibration of rectangular plates with linearly varying thickness is considered. Plates are important structural components used in aircrafts, bridges etc. and hence for their safe design, thorough vibration analysis is important. Many research and practical applications use plates of variable thickness due to economical usage of the material and increased strength. Vibration response of these types of plates is different from plates of uniform thickness, which makes their analysis critical. In this study, Boundary Characteristic Orthogonal Polynomials (BCOPs) in one and two dimensions have been used to obtain deflection shape function. The first member of the series is generated using the boundary conditions, in this case all edges clamped, which satisfies both the geometric boundary conditions and the natural boundary conditions. Gram Schmidt Orthogonalization for polynomials is used to generate the higher members of the shape function which only satisfy the geometric boundary conditions. Thickness variation considered for the plate is linear in both x and y direction. Natural frequencies were obtained by using Rayleigh-Ritz method. Natural frequencies were calculated by varying taper parameters for both directions and compared with those obtained with the case of uniform thickness. Natural frequencies were also found comparable with those obtained from Finite Element Analysis by using ANSYS.

• Periodical: Applied Mechanics and Materials (Volume 852)
• Pages: 518-524
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.852.518
• Online since: September 2016
• Authors: Tanmay Gupta, Bhagat Kewlani, Kiran D. Mali*
• Keywords: Boundary Characteristic Orthogonal Polynomials, Gram Schmidt Orthogonalization, Plate Vibration, Rayleigh-Ritz Method

References

[1] Rama. B. Bhat, Natural Frequencies of Rectangular Plates using Characteristic Orthogonal Polynomials in Rayleigh Ritz Method, Journal of Sound and Vibration, 102(4), 493-499 (1985).

DOI: 10.1016/s0022-460x(85)80109-7

[2] Ashwin Balasubramanian, Plate Analysis with Different Geometries and Arbitrary Boundary Conditions, PhD. Thesis (2011).

[3] D. Zhou, Vibration of Mindlin Rectangular Plates with Elastically Constrained Edges Using Static Timoshenko Beam Functions, International Journal of Solids and Structures, 38, 5565-5580 (2001).

DOI: 10.1016/s0020-7683(00)00384-x

[4] B. Singh and V. Saxena, Transverse Vibration of a Rectangular Plate with Bidirectional Thickness Variation, Journal of Sound and Vibration, 198(1), 51–65 (1996).

DOI: 10.1006/jsvi.1996.0556

[5] H. Akiyama and M. Kuroda, Fundamental Frequencies of Rectangular Plates with Variable Varying Thickness, Journal of Sound and Vibration, 205(3), 380-384 (1997).

DOI: 10.1006/jsvi.1997.1058

[6] R. Lal and Kumar Yajuvindra, Characteristic Orthogonal Polynomials in Study of Transverse Vibrations of Non-homogenous Rectangular Orthotropic Plates of Bilinearly Varying Thickness, Shock and Vibration, 19, 349-364 (2011).

DOI: 10.1007/s11012-011-9430-4

[7] A.R. Kukreti, J. Farsa, C.W. Bert Differential Quadrature and Rayleigh Ritz Methods to Determine the Fundamental Frequencies of Simply Supported Rectangular Plates with Linearly Varying Thickness, Journal of Sound and Vibration, Volume 189, 103-122 (1996).

DOI: 10.1006/jsvi.1996.0008

[8] Rama B. Bhat, Vibration of Beams Using Novel Boundary Characteristic Orthogonal Polynomials Satisfying All Boundary Conditions, Advances in Mechanical Engineering, 1-7 (2015).

DOI: 10.1177/1687814015578355

[9] Eduard Ventsel and Theodor Krauthammer, Thin Plates and Shells: Theory, Applications and Analysis, Marcel Dekker, (2001).

DOI: 10.1201/9780203908723

[10] S. Chakraverty, Vibration of Plates, CRC Press, Taylor and Francis Group (2009).
