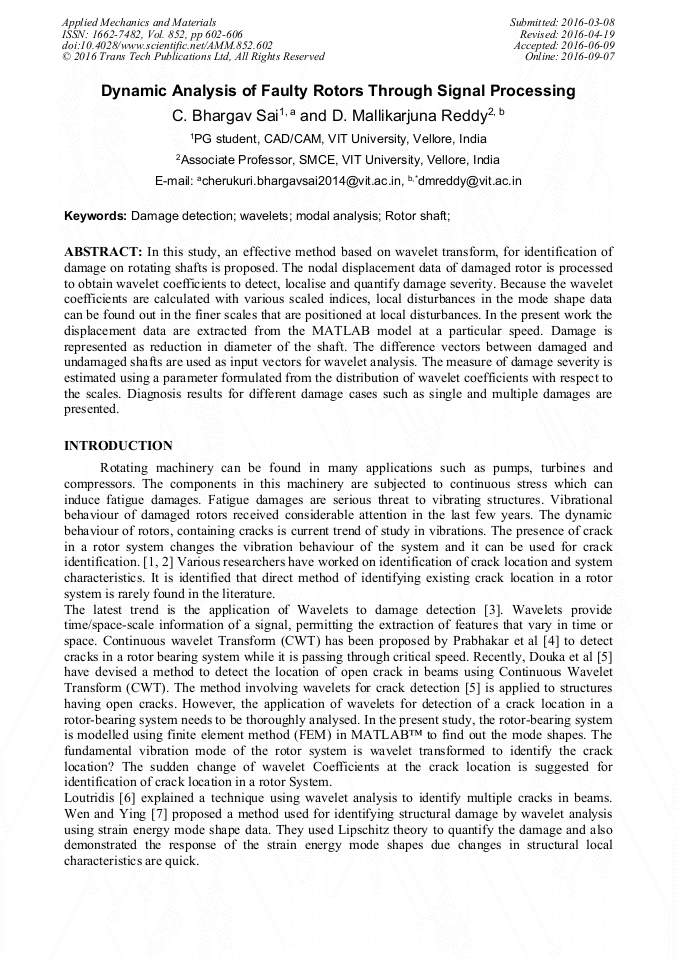

Dynamic Analysis of Faulty Rotors through Signal Processing

Abstract:

In this study, an effective method based on wavelet transform, for identification of damage on rotating shafts is proposed. The nodal displacement data of damaged rotor is processed to obtain wavelet coefficients to detect, localise and quantify damage severity. Because the wavelet coefficients are calculated with various scaled indices, local disturbances in the mode shape data can be found out in the finer scales that are positioned at local disturbances. In the present work the displacement data are extracted from the MATLAB model at a particular speed. Damage is represented as reduction in diameter of the shaft. The difference vectors between damaged and undamaged shafts are used as input vectors for wavelet analysis. The measure of damage severity is estimated using a parameter formulated from the distribution of wavelet coefficients with respect to the scales. Diagnosis results for different damage cases such as single and multiple damages are presented.

• Periodical: Applied Mechanics and Materials (Volume 852)
• Pages: 602-606
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.852.602
• Online since: September 2016
• Authors: Cherukuri Bhargav Sai, D. Mallikarjuna Reddy*
• Keywords: Damage Detection, Modal Analysis, Rotor Shaft, Wavelets

References

[1] R. Gaush, A survey of the dynamic behaviour of simple rotating shaft with a transverse Crack, Journal of Sound and Vibration, 160, 313-332, (1993).

DOI: 10.1006/jsvi.1993.1026

[2] A. D. Dimarogonas, Vibration of cracked structures: A state of the Art review, Engg Fracture Mechanics, 55, 831-857, (1996).

DOI: 10.1016/0013-7944(94)00175-8

[3] W. J. Staszewski, Structural and mechanical damage detection using wavelets, The Shock and Vibration Digest 30(6), 457-472, (1998).

DOI: 10.1177/058310249803000602

[4] S. Prabhakar. ,A. S. Sekhar and A. R. Mohanty Detection and Monitoring of cracks in a rotor-bearing system using wavelet transforms, Journal of Mechanical Systems and Signal Processing 15, 447-450, (2001).

DOI: 10.1006/mssp.2000.1381

[5] E. Douka, S. Loutridis and A. Trochidis, Crack Identification in Beams using Wavelet Analysis, International Journal of Solids and Structures, 40, 3557-3569, (2003).

DOI: 10.1016/s0020-7683(03)00147-1

[6] S. Loutridisa, E. Doukab, A. Trochidisa, Crack identification in double-cracked beams using wavelet analysis, Journal of Sound and Vibration 277 (2004) 1025–1039.

DOI: 10.1016/j.jsv.2003.09.035

[7] Teng Hai-Wen and Haung Ying (2010), Strain mode parameter identification of damaged Structure based on continuous wavelet analysis, International Conference on mechanic Automation and Control Engineering (MACE) pp.934-937, 26-28 June (2010).

DOI: 10.1109/mace.2010.5536246
