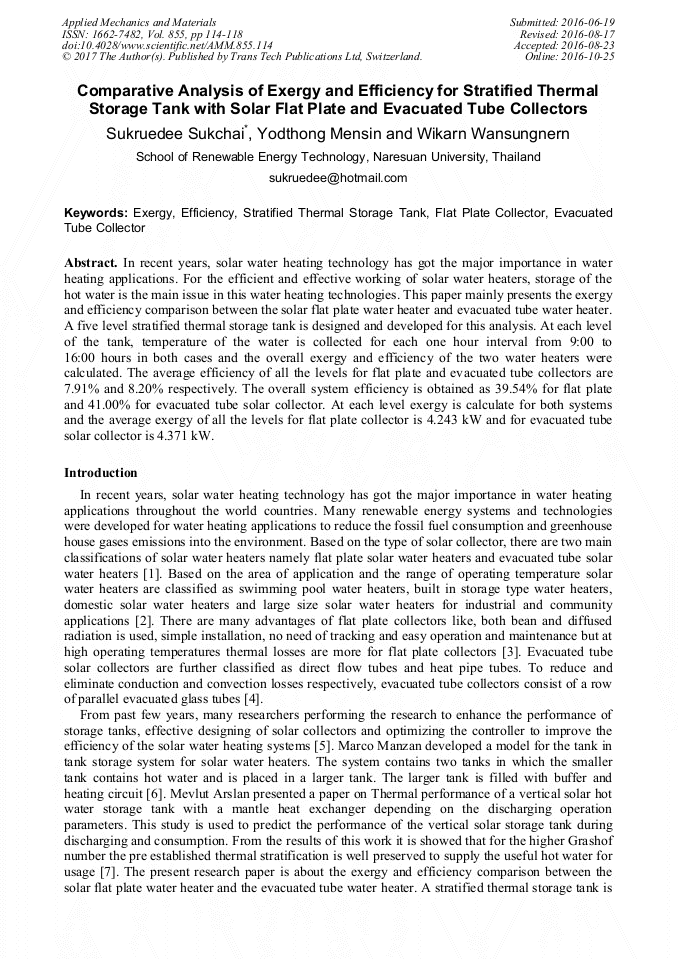

Comparative Analysis of Exergy and Efficiency for Stratified Thermal Storage Tank with Solar Flat Plate and Evacuated Tube Collectors

Abstract:

In recent years, solar water heating technology has got the major importance in water heating applications. For the efficient and effective working of solar water heaters, storage of the hot water is the main issue in this water heating technologies. This paper mainly presents the exergy and efficiency comparison between the solar flat plate water heater and evacuated tube water heater. A five level stratified thermal storage tank is designed and developed for this analysis. At each level of the tank, temperature of the water is collected for each one hour interval from 9:00 to 16:00 hours in both cases and the overall exergy and efficiency of the two water heaters were calculated. The average efficiency of all the levels for flat plate and evacuated tube collectors are 7.91% and 8.20% respectively. The overall system efficiency is obtained as 39.54% for flat plate and 41.00% for evacuated tube solar collector. At each level exergy is calculate for both systems and the average exergy of all the levels for flat plate collector is 4.243 kW and for evacuated tube solar collector is 4.371 kW.

• Periodical: Applied Mechanics and Materials (Volume 855)
• Pages: 114-118
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.855.114
• Online since: October 2016
• Authors: Sukruedee Sukchai*, Yodthong Mensin, Wikarn Wansungnern
• Keywords: Efficiency, Evacuated Tube Collector, Exergy, Flat Plate Collector, Stratified Thermal Storage Tank

References

[1] Tiwari , G. and s. Suneja, Solar Thermal Engineering Systems. 1997, New Delhi: Narosa Publishing House.

[2] Garg, H.P. and J. Prakash, Solar energy : fundamentals and applications. 2000: New Delhi: Tata McGraw-Hill Publishing, c2000.

[3] Weiss, W., Process Heat Collectors: State of the Art Within Task 33/IV; IEA SHC-Task 33 and SolarPACES-Task IV: Solar Heat for Industrial Processes. 2008: AEE INTEC.

DOI: 10.18777/ieashc-task49-2016-0004

[4] Kumar, R., et al., Thermal performance of a solar pressure cooker based on evacuated tube solar collector. Applied Thermal Engineering, 2001. 21(16): pp.1699-1706.

DOI: 10.1016/s1359-4311(01)00018-7

[5] Li, S., et al., Study on Performance of Storage Tanks in Solar Water Heater System in Charge and Discharge Progress. Energy Procedia, 2014. 48: pp.384-393.

DOI: 10.1016/j.egypro.2014.02.045

[6] Padovan, R., et al., Model Development and Validation for a Tank in Tank Water Thermal Storage for Domestic Application. Energy Procedia, 2015. 81: pp.74-81.

DOI: 10.1016/j.egypro.2015.12.061

[7] Arslan, M. and A.A. Igci, Thermal performance of a vertical solar hot water storage tank with a mantle heat exchanger depending on the discharging operation parameters. Solar Energy, 2015. 116: pp.184-204.

DOI: 10.1016/j.solener.2015.03.045

[8] Sukruedee Sukchai, Y.M., Tawat Suriwong, Wikran Wangsungnern, Energy and exergy analysis of stratified thermal storage tank combine with solar flat plate collector.

[9] Saranyanit, S., heat transfer, T.P.A.T. -. Japan), Editor. 2002: Bangkok.
