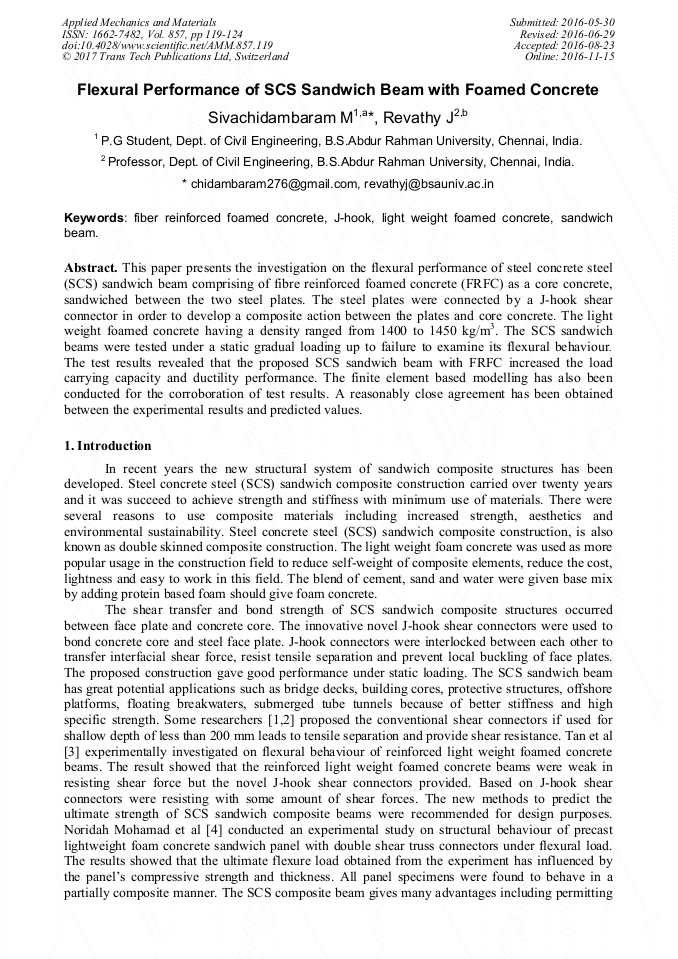

Flexural Performance of SCS Sandwich Beam with Foamed Concrete

Abstract:

This paper presents the investigation on the flexural performance of steel concrete steel (SCS) sandwich beam comprising of fibre reinforced foamed concrete (FRFC) as a core concrete, sandwiched between the two steel plates. The steel plates were connected by a J-hook shear connector in order to develop a composite action between the plates and core concrete. The light weight foamed concrete having a density ranged from 1400 to 1450 kg/m³. The SCS sandwich beams were tested under a static gradual loading up to failure to examine its flexural behaviour. The test results revealed that the proposed SCS sandwich beam with FRFC increased the load carrying capacity and ductility performance. The finite element based modelling has also been conducted for the corroboration of test results. A reasonably close agreement has been obtained between the experimental results and predicted values.

• Periodical: Applied Mechanics and Materials (Volume 857)
• Pages: 119-124
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.857.119
• Online since: November 2016
• Authors: M. Sivachidambaram*, J. Revathy
• Keywords: Fiber Reinforced Foamed Concrete, J-Hook, Light Weight Foamed Concrete, Sandwich Beam

References

[1] Liew J.Y. R, Koh C. G, Sohel K.M. A, Impact tests on steel–concrete–steel sandwich beams with lightweight concrete core, Eng Struct. 31 (9) (2009) 2045–(2059).

DOI: 10.1016/j.engstruct.2009.03.007

[2] Sohel K.M. A, Liew J.Y. R, Alwis W.A. M, Paramasivam P, Experimental investigation of low-velocity impact characteristics of steel-concrete-steel sandwich beams, J. Steel compos Struct. 3 (4) (2003) 289-306.

DOI: 10.12989/scs.2003.3.4.289

[3] J.H. Tan, S.K. Lim, J.H. Lim, Flexural behaviour of reinforced lightweight foamed concrete beams, Magazine of Concrete Research, 27 (2005) 21-31.

[4] Noridah Mohamad, A. I. Khalil, A. A. Abdul Samad, and W. I. Goh, Structural behavior of precast lightweight foam concrete sandwich panel with double shear truss connectors under flexural load, ISRN Civil Engg. (2014) 1-7.

DOI: 10.1155/2014/317941

[5] Jia-Bao Yan, J.Y. Richard Liew, Min-Hong Zhang, Experimental and analytical study on ultimate strength behaviour of steel-concrete-steel sandwich composite beam structures, Material and Structures, 48 (2015) 1523-1544.

DOI: 10.1617/s11527-014-0252-4

[6] Liew J.Y. R, Sohel K. MA, Structural performance of steel–concrete–steel sandwich composite structures, Adv Struct Eng. 13(3) (2010) 453–470.

DOI: 10.1260/1369-4332.13.3.453

[7] IS 4031-1996 (Part-1), Methods of physical tests for hydraulic cement, Determination of fineness by dry sieving, Bureau of Indian Standards.

[8] IS 4031-1988 (Part-4), Methods of physical tests for hydraulic cement, Determination of consistency of standard cement paste, Bureau of Indian Standards.

[9] IS 4031-1988 (Part-5), Methods of physical tests for hydraulic cement, Determination of initial and final setting times, Bureau of Indian Standards.
