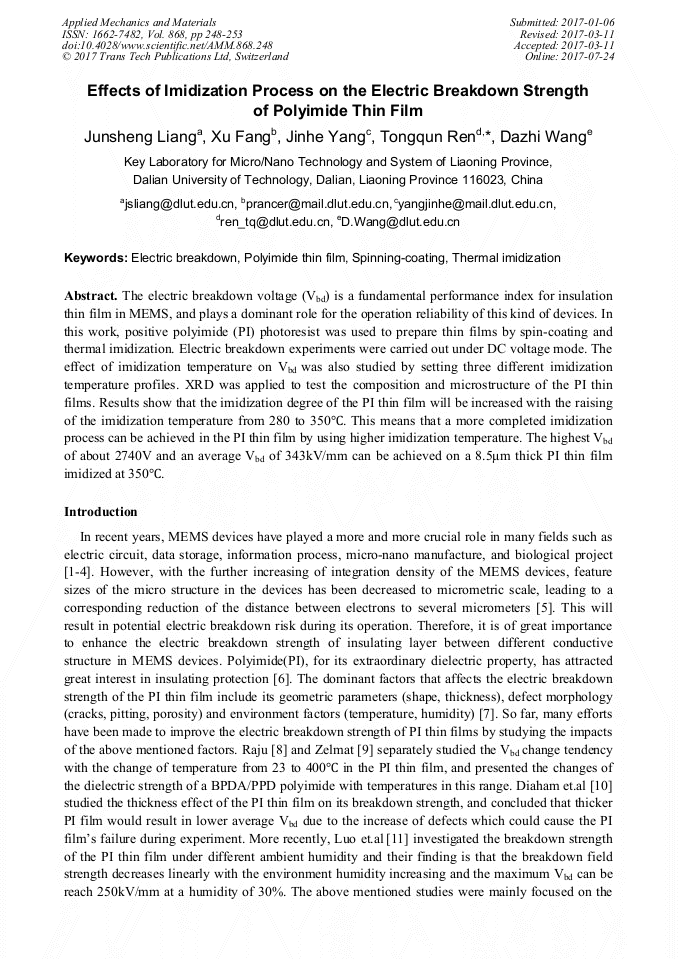

Effects of Imidization Process on the Electric Breakdown Strength of Polyimide Thin Film

Abstract:

The electric breakdown voltage (V_bd) is a fundamental performance index for insulation thin film in MEMS, and plays a dominant role for the operation reliability of this kind of devices. In this work, positive polyimide (PI) photoresist was used to prepare thin films by spin-coating and thermal imidization. Electric breakdown experiments were carried out under DC voltage mode. The effect of imidization temperature on V_bd was also studied by setting three different imidization temperature profiles. XRD was applied to test the composition and microstructure of the PI thin films. Results show that the imidization degree of the PI thin film will be increased with the raising of the imidization temperature from 280 to 350°C. This means that a more completed imidization process can be achieved in the PI thin film by using higher imidization temperature. The highest V_bd of about 2740V and an average V_bd of 343kV/mm can be achieved on a 8.5μm thick PI thin film imidized at 350°C.

• Periodical: Applied Mechanics and Materials (Volume 868)
• Pages: 248-253
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.868.248
• Online since: July 2017
• Authors: Jun Sheng Liang*, Xu Fang, Jin He Yang, Tong Qun Ren, Da Zhi Wang
• Keywords: Electric Breakdown, Polyimide Thin Film, Spinning-Coating, Thermal Imidization

References

[1] Tilli, M., Motooka, T., Airaksinen, V. M., Franssila, S., Paulasto-Krockel, M, Lindroos V, Handbook of silicon based MEMS materials and technologies(2015).

[2] Xu Min, Chen Di, Zhou Ran, Chen Xiang, Zhu Jun, New Fabrication of Retina Electrodes by Micro-Patterning of PI, J. MEMS Device &Technology (2010) 02-0105-05.

[3] El-Kady M F, Kaner R B, Scalable fabrication of high-power graphene micro-supercapacitors for flexible and on-chip energy storage, J. Nature communications(2013) 4-1475.

DOI: 10.1038/ncomms2446

[4] N. Saeidi, J. Strutwolf, A. Marechal, Capacitive Humidity Sensor Suitable for CMOS Integration, Sensor Journal. 13(2013) 4487-4495.

DOI: 10.1109/jsen.2013.2270105

[5] Carazzetti P, Renaud P, Shea H R. Experimental study of electrical breakdown in MEMS devices with micrometer scale gaps, [C]MOEMS-MEMS Micro and Nanofabrication. International Society for Optics and Photonics (2008) 688404-11.

DOI: 10.1117/12.763195

[6] Mittal, Kashmiri Lal, Polyimides: synthesis, characterization, and applications. (2013) Vol. 1.

[7] Grabowski C A, Fillery S P, Westing N M, Dielectric Breakdown in Silica–Amorphous Polymer Nanocomposite Films: The Role of the Polymer Matrix, J. ACS applied materials & interfaces, 5(12) (2013) 5486-5492.

DOI: 10.1021/am4005623

[8] Raju G, Katebian A, Jafri S Z, Breakdown voltages of polymers in the temperature range 23-250 ℃, J. Transactions on Dielectrics and Electrical Insulation, 10-1(2003)117-127.

DOI: 10.1109/tdei.2003.1176573

[9] Zelmat S, Diaham S, Decup M, Weibull Statistical Dielectric Breakdown in Polyimide up to 400℃, 2008 Annual Report Conference on Electrical Insulation and Dielectric Phenomena, (2008) 583-586.

DOI: 10.1109/ceidp.2008.4772832

[10] Diaham S, Zelmat S, Locatelli M L, Dielectric breakdown of polyimide films: Area, thickness and temperature dependence, J. Transactions on Dielectrics and Electrical Insulation, 17-1(2010)18-27.

DOI: 10.1109/tdei.2010.5411997

[11] Luo Yang, Wu Guang, Liu Ji, Influences of Elevated Temperature and Humidity on Breakdown Characteristics of Polyimide Film, J. Proceedings of the CSEE, 34(2014): 6578-6587.

[12] Sawada T, Ando S. Synthesis, characterization, and optical properties of metal-containing fluorinated polyimide films, J. Chemistry of materials, 10-11(1998): 3368-3378.

DOI: 10.1021/cm980051j

[13] Jin Li, Boxue Du, Zhonglei Li, Han Tao, Yunqi Xing, Xiaolong Li. Effect of surface fluorination on water absorption characteristics, breakdown voltage and surface charge characteristics of polyimide films, J. High voltage technology, 09(2016).
