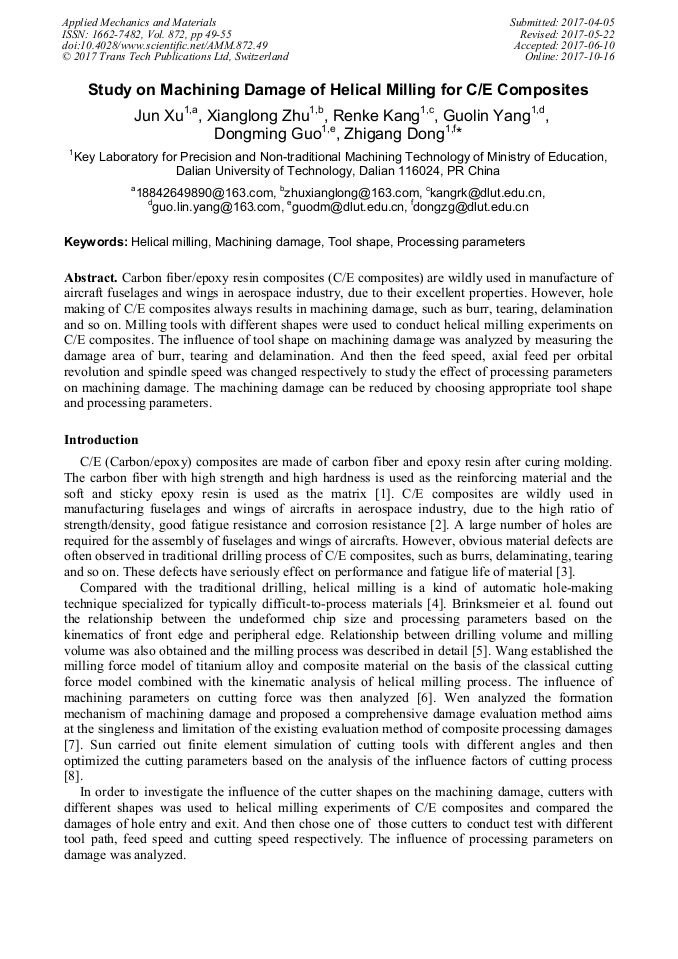

Study on Machining Damage of Helical Milling for C/E Composites

Abstract:

Carbon fiber/epoxy resin composites (C/E composites) are wildly used in manufacture of aircraft fuselages and wings in aerospace industry, due to their excellent properties. However, hole making of C/E composites always results in machining damage, such as burr, tearing, delamination and so on. Milling tools with different shapes were used to conduct helical milling experiments on C/E composites. The influence of tool shape on machining damage was analyzed by measuring the damage area of burr, tearing and delamination. And then the feed speed, axial feed per orbital revolution and spindle speed was changed respectively to study the effect of processing parameters on machining damage. The machining damage can be reduced by choosing appropriate tool shape and processing parameters.

• Periodical: Applied Mechanics and Materials (Volume 872)
• Pages: 49-55
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.872.49
• Online since: October 2017
• Authors: Jun Xu, Xiang Long Zhu, Ren Ke Kang, Guo Lin Yang, Dong Ming Guo, Zhi Gang Dong*
• Keywords: Helical Milling, Machining Damage, Processing Parameters, Tool Shape

References

[1] Y. F. He, W. C. Jiao, F. Yang, et al. The Development of Polymer Composites Forming Process, J. Fiber Comp. (02) (2011) 7-13.

[2] Z. Shen, Application of Carbon Fiber Composites in Aircraft Structures, J. Hi-Tech. Fiber. Appl. (04) (2010) 1-4.

[3] X. L. Cui, B. Tian, Y. G. Wang, Carbon fiber reinforced plastic drilling defect analysis, J. Mech. Electr. Eng. (02) (2013) 182-185.

[4] H. Kihlman, I. Eriksson, M. Ennis. Robotic orbital drilling of structures for aerospace applications, R. 2002-01-2636, (2002).

DOI: 10.4271/2002-01-2636

[5] E. Brinksmeier, S. Fangmann, I. Meyer. Orbital drilling kinematics, J. Prod. Proc. (02) (2008) 277-283.

DOI: 10.1007/s11740-008-0111-7

[6] H. Y. Wang, Study on Dynamics in Helical Milling of Difficult-to-Cut Materials, D. Tianjin University, (2012).

[7] Q. Wen, Study of Formation Mechanism and Evaluation Method of C/E Composites Hole-making Damages, D. Dalian University of Technology, (2013).

[8] X. T. Sun, Optimization and Experimental Research of Helical Milling Special Tool for CFRP/Titanium Alloy, D. Tianjin University, (2012).

[9] H. Hocheng, C. C. Tsao. Effects of special drill bits on drilling-induced delamination of composite materials, J. Int. J. Mach. Tool. Manuf. (12) (2006) 1403-1416.

DOI: 10.1016/j.ijmachtools.2005.10.004

[10] B. Wang, H. Gao, M. Z. Bi, et al. Mechanism of Reduction of Damage during Orbital Drilling of C/E Composites, J. Mech. Eng. (15) (2012) 173-181.

[11] G. Liu, H. Zhang, Y. F. Wang, et al. Study on cutting force and machining quality of orbital drilling for CFRP, J. Acta Mater. Comp. Sin. (05) (2014) 1292-1299.

[12] B. Denkena, D. Boehnke, J. H. Dege, Helical milling of CFRP-titanium layer compounds, J. CIRP J. Manuf. Sci. Tech. (01) (2008) 64-69.

DOI: 10.1016/j.cirpj.2008.09.009

[13] A. Hassui. Modeling of cutting forces in helical milling by analysis of tool contact angle and respective depths of cut, J. Int. J. Adv. Manuf. Tech. (68) (2013) 2311-2319.

DOI: 10.1007/s00170-013-4837-9

[14] H. Zhang, Study on Numerical Simulation and Experiment of Orbital Drilling for Hard Machining Materials, D. Zhejiang University, (2014).

[15] X. D. Qin, B. Wang, Y. D. Jiang, et al. Study on the effect of the Process parameters on the Delamination in Helical Milling of CFRP, J. Mech. Sci. Tech. Aerosp. Eng. (05) (2015) 707-709.

[16] G. He, H. Li, Y. Jiang, et al. Helical milling of CFRP/Ti-6Al-4V stacks with varying machining parameters, J. Trans. Tianjin University, (1) (2015) 56-63.

DOI: 10.1007/s12209-015-2360-9
