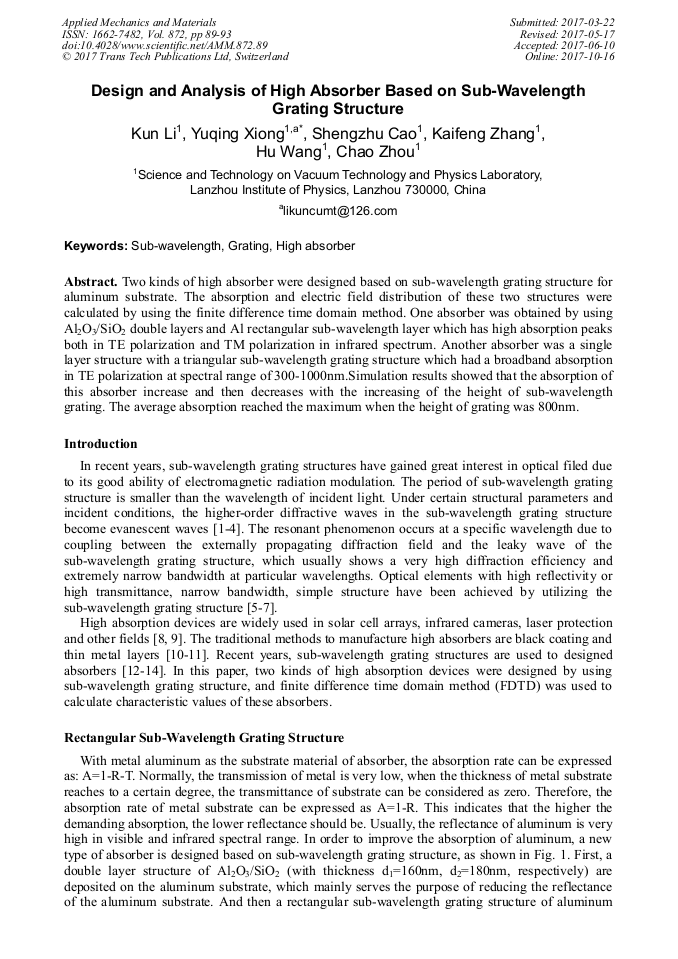

Design and Analysis of High Absorber Based on Sub-Wavelength Grating Structure

Abstract:

Two kinds of high absorber were designed based on sub-wavelength grating structure for aluminum substrate. The absorption and electric field distribution of these two structures were calculated by using the finite difference time domain method. One absorber was obtained by using Al₂O₃/SiO₂ double layers and Al rectangular sub-wavelength layer which has high absorption peaks both in TE polarization and TM polarization in infrared spectrum. Another absorber was a single layer structure with a triangular sub-wavelength grating structure which had a broadband absorption in TE polarization at spectral range of 300-1000nm.Simulation results showed that the absorption of this absorber increase and then decreases with the increasing of the height of sub-wavelength grating. The average absorption reached the maximum when the height of grating was 800nm.

• Periodical: Applied Mechanics and Materials (Volume 872)
• Pages: 89-93
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.872.89
• Online since: October 2017
• Authors: Kun Li, Yu Qing Xiong*, Sheng Zhu Cao, Kai Feng Zhang, Hu Wang, Chao Zhou
• Keywords: Grating, High Absorber, Sub-Wavelength

References

[1] R. Magnusson, S. S. Wang, New principle for optical filters, Appl. Phys. Lett. 61(9) (1992) 1022-1024.

DOI: 10.1063/1.107703

[2] W. L. Wang, X. H. Rong, Design of sub-wavelength grating structure for filter regardless of polarization, Optik, 127 (2016) 802-805.

DOI: 10.1016/j.ijleo.2015.10.185

[3] C. WANG, X. ZHANG, X. Y. LIU, Broadband filter using multi-layer sub-wavelength high-contrast grating structure, Front. Optoelectr. 7(3) (2014) 393-398.

DOI: 10.1007/s12200-014-0444-0

[4] C. Y. HWANG, Y. S. YI, C. G. CHOI, Reflection-type spatial amplitude modulation of visible light based on a sub-wavelength plasmonic absorber, Opt. Lett. 41(5) (2016) 990-993.

DOI: 10.1364/ol.41.000990

[5] J. J. Zhang, J. B. Yang, H. Y. Lu. Subwavelength TE/TM grating coupler based on silicon-on-insulator, Infr. Phys. Tech. 71 (2015) 542-546.

DOI: 10.1016/j.infrared.2015.06.018

[6] L. Y. Qian, D. W. Zhang, Y. S. Huang. Performance of a double-layer guided mode resonance filter with non-subwavelength grating period at oblique incidence, Opt. Laser Tech. 72 (2015) 42-47.

DOI: 10.1016/j.optlastec.2015.02.017

[7] Y. H. Ko, J. S. Yu, Design and fabrication of antireflective GaN subwavelength grating structures using periodic silica sphere monolayer array patterning, Appl. Phys. B, 113(4) (2013) 567-573.

DOI: 10.1007/s00340-013-5511-5

[8] G. Ritt, S. Dengler, B. Eberle, Protection of optical systems against laser radiation, Proc. SPIE, (2009) 7481: 74810U.

[9] B. S. Zhang, M. J. Ma, Y. Q. Xiong, Study on design and deposition of minus filters for laser protection application, Phys. Proc. 18 (2011) 81-84.

[10] N. C. Kothari, Environmental degradation of solar plate collector surface, Solar World Congress, 3 (1983) 1919-(1924).

[11] J. Wang, Z. J. Chen, D. J. Li, The Optical Design of Mo Two-dimensional Surface Gratings for High-temperature Solar Selective Absorption Surface, Acta Energ. Solar. Sin. 32(7) (2011) 1087-1090.

[12] J. Wu, C. H. Zhou, J. J. Yu. TE polarization broadband absorber based on stacked metal-dielectric grating structure, Opt. Commun. (341) (2015) 85-90.

DOI: 10.1016/j.optcom.2014.12.017

[13] C. Y. Yang, W. D. Shen, Y. G. Zhang. Multi-narrowband absorber based on subwavelength grating structure, Opt. Commun. (331) (2014) 310-315.

DOI: 10.1016/j.optcom.2014.06.036

[14] J. Wu, C. H. Zhou, J. J. Yu. TE polarization selective absorber based on metal-dielectric grating structure for infrared frequencies, Opt. Commun. (329) (2014) 38-43.

DOI: 10.1016/j.optcom.2014.05.012
