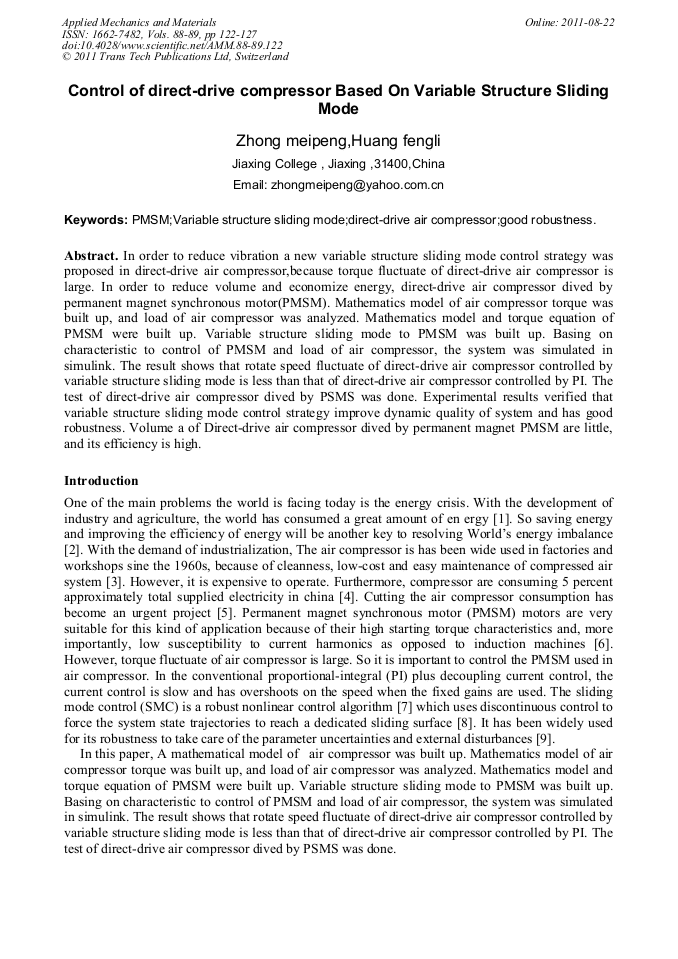

Control of Direct-Drive Compressor Based on Variable Structure Sliding Mode

Abstract:

In order to reduce vibration a new variable structure sliding mode control strategy was proposed in direct-drive air compressor,because torque fluctuate of direct-drive air compressor is large. In order to reduce volume and economize energy, direct-drive air compressor dived by permanent magnet synchronous motor(PMSM). Mathematics model of air compressor torque was built up, and load of air compressor was analyzed. Mathematics model and torque equation of PMSM were built up. Variable structure sliding mode to PMSM was built up. Basing on characteristic to control of PMSM and load of air compressor, the system was simulated in simulink. The result shows that rotate speed fluctuate of direct-drive air compressor controlled by variable structure sliding mode is less than that of direct-drive air compressor controlled by PI. The test of direct-drive air compressor dived by PSMS was done. Experimental results verified that variable structure sliding mode control strategy improve dynamic quality of system and has good robustness. Volume a of Direct-drive air compressor dived by permanent magnet PMSM are little, and its efficiency is high.

• Periodical: Applied Mechanics and Materials (Volumes 88-89)
• Pages: 122-127
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.88-89.122
• Online since: August 2011
• Authors: Mei Peng Zhong, Feng Li Huang
• Keywords: Direct-Drive Air Compressor, Good Robustness, Permanent Magnet Synchronous Motor (PMSM), Sliding Mode Variable Structure

References

[1] LEE J H, KIM J. Sound transmission through cylindrical shell of hermetic compressors[C] /Proceedings of the 2000 International Compressor Engineering Conference at Purdue. West Lafayette: Purdue University Press. 2000: 933-940.

[2] HAN Jian-hai, Noritsugu Toshiro. Pneumatic position control system directly driven by a miniature air compressor. [J] Chinese Journal of Mechanical Engineering, 2003. 39(6)11-18.E. Bowman, The schedule-sequencing problem, Operations Research, vol. 7, no. pp.621-624, (1959).

DOI: 10.3901/jme.2003.06.067

[3] Schmidt Chris, Kissock Kelly. Modeling and simulation of air compressor energy use[C]/ 2005 ACEEE Summer Study on Energy Efficiency in Industry: Cutting the High Cost of Energy. 2005 : 131-142.

[4] Terrell, Robert E. Improving compressed air system efficiency - know what you really need[J]. Fairmont Press Inc, Lilburn, GA, USA: 1999 96(1).

DOI: 10.1080/01998595.1999.10530444

[5] Fang Yu-ying, Zuo Ya-nyan. Vibration Analysis of an Air Compressor[J]Transactions of The Chinese Society of Agricultural Machinery. 2002. 33(3)95-97.

[6] HU Qing-bo, LU Zheng-yu. Novel close-loop speed control technique for brushless direct current motor. Journal of Zhejiang University Engineering (Science). [J]: 2003. 41(2)282-286.

[7] Ulkin V I. Sliding mode and their application in VSSs [M]. Moscow: (1978).

[8] Lin F J, Shyu K K, Lin Y S. Variable structure adaptive control for PM synchronous servo motor drive[J]. IEEE Proc-Electr Power Appl, 1999, 146(2): 173-185.

DOI: 10.1049/ip-epa:19990113

[9] Emelyanov S V. Variable structure automatic systems [M]. Moscow: (1967).
