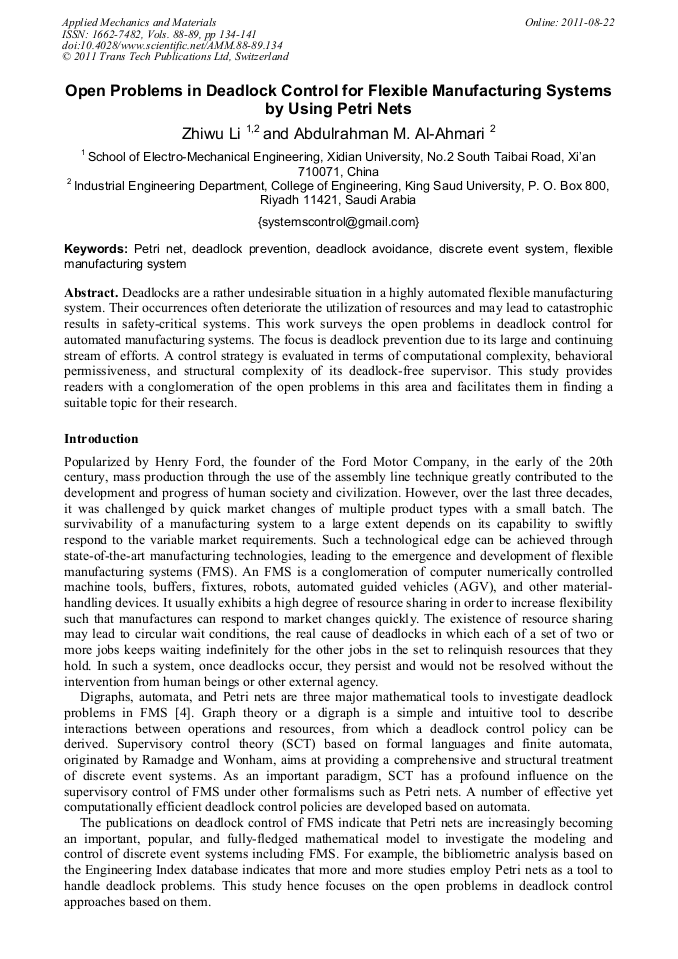

Open Problems in Deadlock Control for Flexible Manufacturing Systems by Using Petri Nets

Abstract:

Deadlocks are a rather undesirable situation in a highly automated flexible manufacturing system. Their occurrences often deteriorate the utilization of resources and may lead to catastrophic results in safety-critical systems. This work surveys the open problems in deadlock control for automated manufacturing systems. The focus is deadlock prevention due to its large and continuing stream of efforts. A control strategy is evaluated in terms of computational complexity, behavioral permissiveness, and structural complexity of its deadlock-free supervisor. This study provides readers with a conglomeration of the open problems in this area and facilitates them in finding a suitable topic for their research.

• Periodical: Applied Mechanics and Materials (Volumes 88-89)
• Pages: 134-141
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.88-89.134
• Online since: August 2011
• Authors: Zhi Wu Li, Abdulrahman M. Al-Ahmari
• Keywords: Deadlock Avoidance, Deadlock Prevention, Discrete Event System, Flexible Manufacturing System, Petri Net
