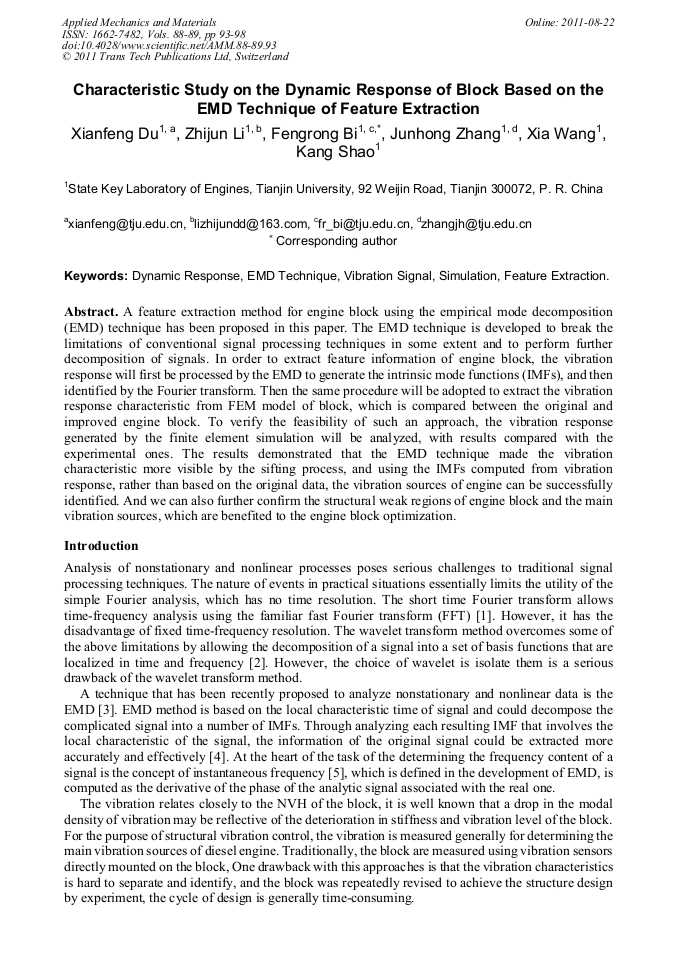

Characteristic Study on the Dynamic Response of Block Based on the EMD Technique of Feature Extraction

Abstract:

A feature extraction method for engine block using the empirical mode decomposition (EMD) technique has been proposed in this paper. The EMD technique is developed to break the limitations of conventional signal processing techniques in some extent and to perform further decomposition of signals. In order to extract feature information of engine block, the vibration response will first be processed by the EMD to generate the intrinsic mode functions (IMFs), and then identified by the Fourier transform. Then the same procedure will be adopted to extract the vibration response characteristic from FEM model of block, which is compared between the original and improved engine block. To verify the feasibility of such an approach, the vibration response generated by the finite element simulation will be analyzed, with results compared with the experimental ones. The results demonstrated that the EMD technique made the vibration characteristic more visible by the sifting process, and using the IMFs computed from vibration response, rather than based on the original data, the vibration sources of engine can be successfully identified. And we can also further confirm the structural weak regions of engine block and the main vibration sources, which are benefited to the engine block optimization.

• Periodical: Applied Mechanics and Materials (Volumes 88-89)
• Pages: 93-98
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.88-89.93
• Online since: August 2011
• Authors: Xian Feng Du, Zhi Jun Li, Fong Rong Bi, Jun Hong Zhang, Xia Wang, Kang Shao
• Keywords: Dynamic Response, EMD Technique, Feature Extraction, Simulation, Vibration Signal

References

[1] Jacob R, Thomas, Unnikrishnan A. Applications of fractional Fourier transform in sonar signal processing. IETE Journal of Research, Vol. 55, No. 1, pp.16-27, (2009).

DOI: 10.4103/0377-2063.51323

[2] Yan ZH, Miyamoto A, Jiang ZW. Frequency slice wavelet transform for transient vibration response analysis. Mechanical Systems and Signal Processing, Vol. 23, No. 5, pp.1474-1489, (2009).

DOI: 10.1016/j.ymssp.2009.01.008

[3] Du QH, Yang SN. Application of the EMD method in the vibration analysis of ball bearings. Mechanical Systems and Signal Processing, Vol. 21, No. 6, pp.2634-2644, (2007).

DOI: 10.1016/j.ymssp.2007.01.006

[4] Wu FJ, Qu LS. Diagnosis of subharmonic faults of large rotating machinery based on EMD. Mechanical Systems and Signal Processing, Vol. 23, No. 2, pp.467-475, (2009).

DOI: 10.1016/j.ymssp.2008.03.007

[5] Cheng JS, Yu DJ, Yang Y. Research on the intrinsic mode function (IMF) criterion in EMD method. Mechanical Systems and Signal Processing, Vol. 20, No. 4, pp.817-822, (2006).

DOI: 10.1016/j.ymssp.2005.09.011
