The Design and Prototype Manufacture of Helical Gear Reducers with Two Gear Pairs

Abstract:

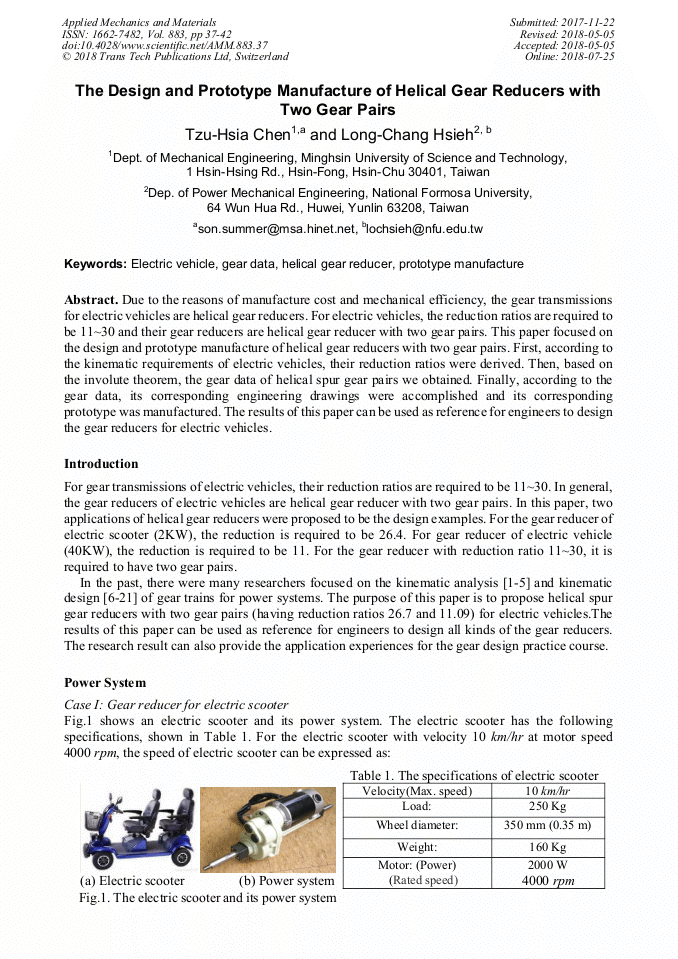

Article Preview

Due to the reasons of manufacture cost and mechanical efficiency, the gear transmissions for electric vehicles are helical gear reducers. For electric vehicles, the reduction ratios are required to be 11~30 and their gear reducers are helical gear reducer with two gear pairs. This paper focused on the design and prototype manufacture of helical gear reducers with two gear pairs. First, according to the kinematic requirements of electric vehicles, their reduction ratios were derived. Then, based on the involute theorem, the gear data of helical spur gear pairs we obtained. Finally, according to the gear data, its corresponding engineering drawings were accomplished and its corresponding prototype was manufactured. The results of this paper can be used as reference for engineers to design the gear reducers for electric vehicles.
