Effects of Starting Materials on Preparation and Properties of Pure SiC Ceramics via the HTPVT Method

Abstract:

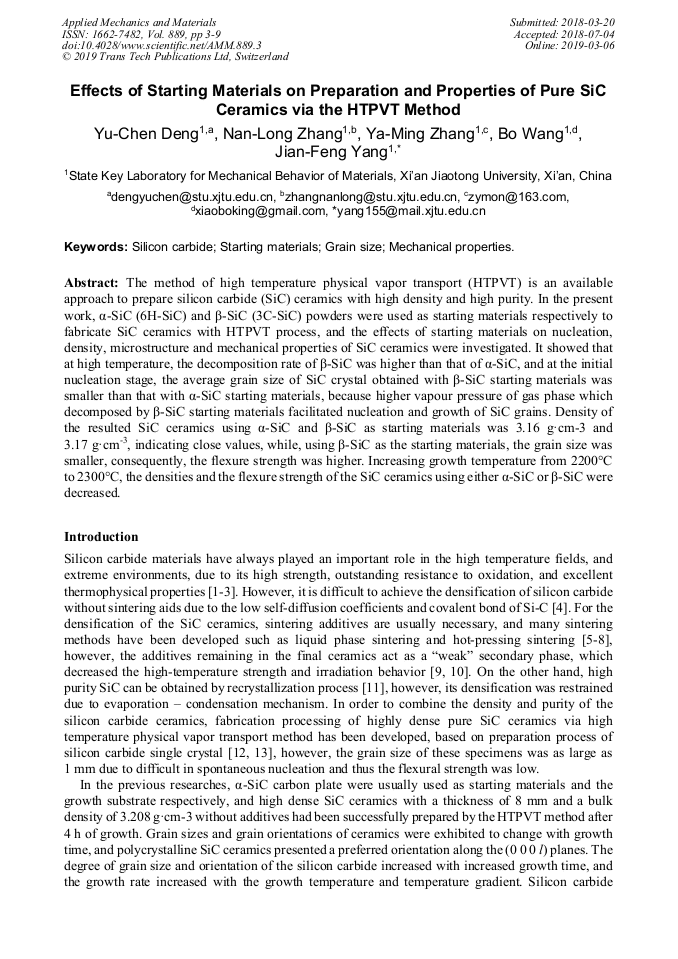

The method of high temperature physical vapor transport (HTPVT) is an available approach to prepare silicon carbide (SiC) ceramics with high density and high purity. In the present work, α-SiC (6H-SiC) and β-SiC (3C-SiC) powders were used as starting materials respectively to fabricate SiC ceramics with HTPVT process, and the effects of starting materials on nucleation, density, microstructure and mechanical properties of SiC ceramics were investigated. It showed that at high temperature, the decomposition rate of β-SiC was higher than that of α-SiC, and at the initial nucleation stage, the average grain size of SiC crystal obtained with β-SiC starting materials was smaller than that with α-SiC starting materials, because higher vapour pressure of gas phase which decomposed by β-SiC starting materials facilitated nucleation and growth of SiC grains. Density of the resulted SiC ceramics using α-SiC and β-SiC as starting materials was 3.16 g·cm-3 and 3.17 g·cm^-3, indicating close values, while, using β-SiC as the starting materials, the grain size was smaller, consequently, the flexure strength was higher. Increasing growth temperature from 2200°C to 2300°C, the densities and the flexure strength of the SiC ceramics using either α-SiC or β-SiC were decreased.

• Periodical: Applied Mechanics and Materials (Volume 889)
• Pages: 3-9
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.889.3
• Online since: March 2019
• Authors: Yu Chen Deng, Nan Long Zhang, Ya Ming Zhang, Bo Wang, Jian Feng Yang*
• Keywords: Grain Size, Mechanical Properties, Silicon Carbide, Starting Materials

References

[1] J. R. Ervin, Oxidation Behavior of Silicon Carbide, J. Am. Ceram. Soc. 41 (1958) 347–352.

[2] Q. W. Huang, L. H. Zhu, High-temperature strength and toughness behaviors for reaction-bonded SiC ceramics below 1400°C, Mater. Lett. 59 (2005) 1732-1735.

DOI: 10.1016/j.matlet.2005.01.049

[3] B. K. Jang, Y. Sakka, Influence of microstructure on the thermophysical properties of sintered SiC ceramics, J. Alloys Compd. 463 (2008) 493-397.

DOI: 10.1016/j.jallcom.2007.09.055

[4] B.G. Ravi, O. A. Omotoye, T.S. Srivatsan, M. Petrorali, and T. S. Sudarshan, The microstructure and hardness of silicon carbide synthesized by plasma pressure compaction, J. Alloys Compd. 299 (2000) 292-296.

DOI: 10.1016/s0925-8388(99)00815-4

[5] G. Rixecker, I. Wiedmann, A. Rosinus, F. Aldinger, High temperature effects in the fracture mechanical behaviour of silicon carbide liquid-phase sintered with AlN-Y2O3 additives, J. Eur. Ceram. Soc. 21 (2001) 1013-1019.

DOI: 10.1016/s0955-2219(00)00317-4

[6] Y. Zhou, K. Hirao, Y. Yamauchi, S. Kanzaki, Effects of rare-earth oxide and alumina additives on thermal conductivity of liquid-phase-sintered silicon carbide, J. Mater. Res. 18 (2001) 1854-1862.

DOI: 10.1557/jmr.2003.0259

[7] D. M. Cupid, O. Fabrichnaya, and H. J. Seifert, Thermodynamic aspects of liquid phase sintering of SiC using Al2O3 and Y2O3, Int. J. Mater. Res. 98 (2007) 976-986.

DOI: 10.3139/146.101557

[8] J. H. She, J. K. Guo, and D. L. Jiang, Hot isostatic pressing of α-silicon carbide ceramics, Ceram. Int. 19 (1993) 347-351.

DOI: 10.1016/0272-8842(93)90048-v

[9] Y. W. Kim, Y. S. Chun, T. Nishimura, M. Mitomo, Y. H. Lee, High-temperature strength of silicon carbide ceramics sintered with rare-earth oxide and aluminum nitride, Acta Mater. 55 (2007) 727-736.

DOI: 10.1016/j.actamat.2006.08.059

[10] T. Suzuki, T. Maruyama, T. Iseki, Effects of sintering aids on the length change of neutron irradiated SiC ceramics during annealing at high temperature, J. Nucl. Mater. 165 (1989) 247-251.

DOI: 10.1016/0022-3115(89)90202-x

[11] W. Guo, H. Xiao, W. Xie, J. Hu, Q. Li, P.Z. Gao, A new design for preparation of high performance recrystallized silicon carbide, Ceram. Int. 38 (2012) 2475-2481.

DOI: 10.1016/j.ceramint.2011.11.016

[12] Y.M. Tairov, V.F. Tsvetkov, Investigation of growth processes of ingots of silicon carbide single crystals, J. Cryst. Growth 43 (1978) 209-212.

DOI: 10.1016/0022-0248(78)90169-0

[13] W. Bahng, Y. Kitou, S. Nishizawa, H. Yamaguchi, M. N. Khan, N. Oyangaji, S. Nishino, K. Arai, Rapid enlargement of SiC single crystal using a cone-shaped platform, J. Cryst. Growth 209 (2000) 767-772.

DOI: 10.1016/s0022-0248(99)00754-x

[14] P.Y. Dai, Y.Z. Wang, G.L. Guo, B. Wang, G.S. Yong, J.F. Yang, G.J. Qiao, H.J. Wang, Fabrication of highly dense pure SiC ceramics via the HTPVT method, Acta Mater. 59 (2011) 6257-6263.

DOI: 10.1016/j.actamat.2011.06.035

[15] J.S. Lee, S.H. Lee, T. Nishimura, N. Hirosaki, H. Tanaka, A ternary compound additive for vacuum densification of β-silicon carbide at low temperature, J. Eur. Ceram. Soc. 29 (2009) 3419-3423.

DOI: 10.1016/j.jeurceramsoc.2009.07.011
