Analysis of Ultimate Load-Bearing Capacity of Long-Span CFST Arch Bridges

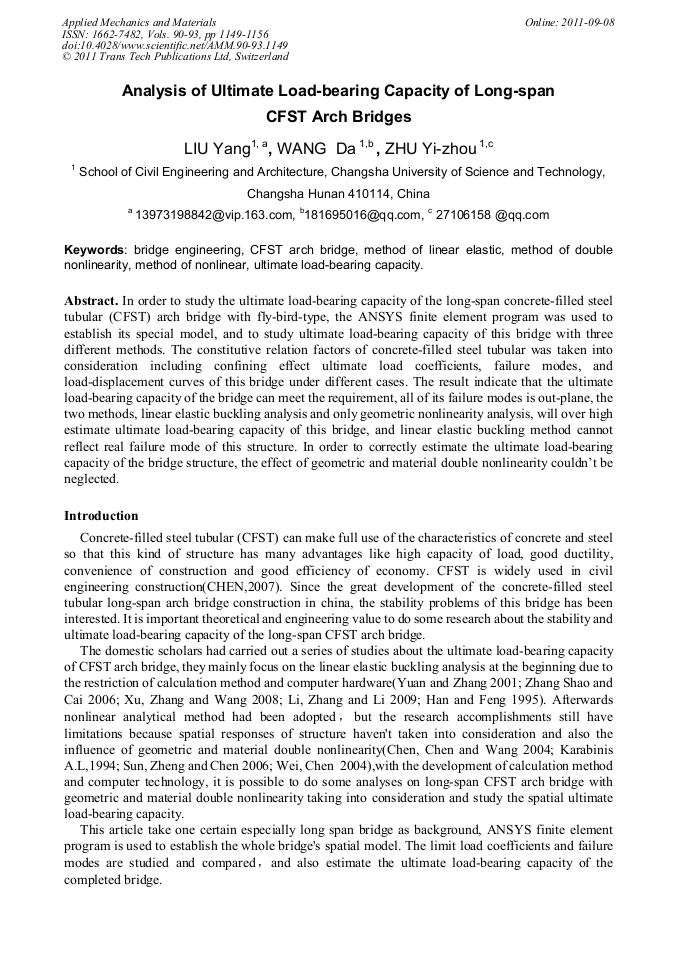

Abstract:

In order to study the ultimate load-bearing capacity of the long-span concrete-filled steel tubular (CFST) arch bridge with fly-bird-type, the ANSYS finite element program was used to establish its special model, and to study ultimate load-bearing capacity of this bridge with three different methods. The constitutive relation factors of concrete-filled steel tubular was taken into consideration including confining effect ultimate load coefficients, failure modes, and load-displacement curves of this bridge under different cases. The result indicate that the ultimate load-bearing capacity of the bridge can meet the requirement, all of its failure modes is out-plane, the two methods, linear elastic buckling analysis and only geometric nonlinearity analysis, will over high estimate ultimate load-bearing capacity of this bridge, and linear elastic buckling method cannot reflect real failure mode of this structure. In order to correctly estimate the ultimate load-bearing capacity of the bridge structure, the effect of geometric and material double nonlinearity couldn’t be neglected.

• Periodical: Applied Mechanics and Materials (Volumes 90-93)
• Pages: 1149-1156
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.90-93.1149
• Online since: September 2011
• Authors: Yang Liu, Da Wang, Yi Zhou Zhu
• Keywords: Bridge Engineering, CFST Arch Bridge, Method of Double Nonlinearity, Method of Linear Elastic, Method of Nonlinear, Ultimate Load-Bearing Capacity

References

[1] Chen Bao-chun．Concrete-filled steel tubular arch bridge (Second Edition).China communication press，2007．

[2] Yuan hong-ying, Zhang Gui-ming. Study on Hybrid Non-linearity Characteristics and Reasonable Design for Concrete-filled Steel Tubular Arch Bridge with Long-span. Highway，2001，(12)：41-44.

[3] Zhang Yang，Shao Xu-dong，Cai Sony-bai, et al. Spatial Nonlinear Finite Element Analysis for Long-Span Trussed CFST Arch Bridge. China Journal of Highway and Transport．2006, 19(4)：65-70.

[4] Xu Kai-ming, Zhang Ming-zhong, Wang Ji. Nonlinear stability analysis of long span CFST arch bridge under construction. Xi'an University of Arch.&Tech. (Natural Science Edition)．2008, 40(4)：556-560.

[5] Li Yuan-bing, Zhang Qi-wei, Li Ya-dong. Stability of Concrete-filled Steel Tube Arch Bridge during Construction and Guy-cable Effects. Journal of Highway and Transportation Research and Development．2009, 26(3)：59-63.

[6] Han Lin-hai, Feng Jiu-bin. Constitutive Relations of Concrete and Its Applications in the Integral Analysis of Concrete Filled Steel Tube. Journal of Harbin University of civil Engineering and Architecture．1995, 28(5)：26-32.

[7] Chen Bao-chun, Cen You-jie, WANG Lai-yong. Study of stress-strain relation of concrete filled steel tubular eccentric compression column. China Journal of Highway and Transport. 2004, 17(1)：24-28.

[8] Karabinis A.L, Effects of confinement on concrete columns. Plasticity Approach, Journal of Structural Engineering. 1994, 120 (9)：2747-2767.

DOI: 10.1061/(asce)0733-9445(1994)120:9(2747)

[9] Sun Chao, Zheng Huai-ying, Chen Bao-chun. The double nonlinear finite element analysis of Dong guan channel bridge in plane. Journal of Fuzhou University (Natural Science). 2006, 34(1)：109-113.

[10] Wei Jian-gang, Chen Bao-chun. Finite element methods for analysis on material nonlinearity of concrete-filled steel tubular arch. Journal of Fuzhou University (Natural Science).2004, 32(3)：345-349.
