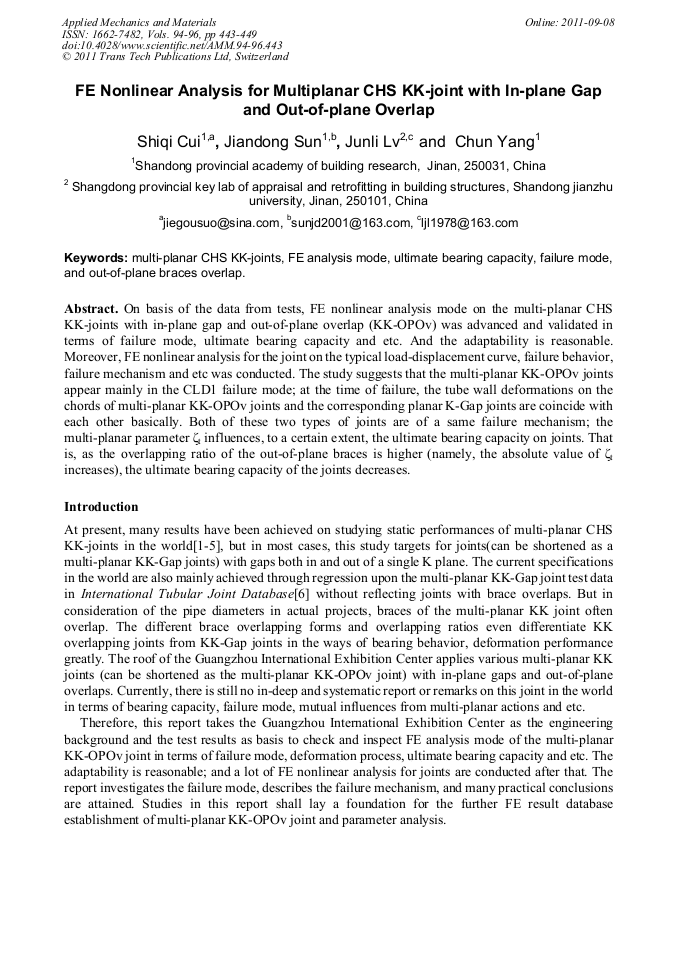

FE Nonlinear Analysis for Multiplanar CHS KK-Joint with in-Plane Gap and Out-of-Plane Overlap

Abstract:

On basis of the data from tests, FE nonlinear analysis mode on the multi-planar CHS KK-joints with in-plane gap and out-of-plane overlap (KK-OPOv) was advanced and validated in terms of failure mode, ultimate bearing capacity and etc. And the adaptability is reasonable. Moreover, FE nonlinear analysis for the joint on the typical load-displacement curve, failure behavior, failure mechanism and etc was conducted. The study suggests that the multi-planar KK-OPOv joints appear mainly in the CLD1 failure mode; at the time of failure, the tube wall deformations on the chords of multi-planar KK-OPOv joints and the corresponding planar K-Gap joints are coincide with each other basically. Both of these two types of joints are of a same failure mechanism; the multi-planar parameter ζt influences, to a certain extent, the ultimate bearing capacity on joints. That is, as the overlapping ratio of the out-of-plane braces is higher (namely, the absolute value of ζt increases), the ultimate bearing capacity of the joints decreases.

• Periodical: Applied Mechanics and Materials (Volumes 94-96)
• Pages: 443-449
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.94-96.443
• Online since: September 2011
• Authors: Shi Qi Cui, Jian Dong Sun, Jun Li Lv, Chun Yang
• Keywords: Failure Mode, FE Analysis Mode, Multi-Planar Chs Kk-Joints, Out-of-Plane Braces Overlap, Ultimate Bearing Capacity

References

[1] Joop C. Paul, Yuji Makino, Yoshiaki Kurobane. ASCE, 1994,120(10):2853-2870.

[2] M.M.K. Lee, S.R. Wilmshurst. Journal of Structural Engineering, ASCE, 1996,122(8):893- 904.

[3] M.M.K. Lee, S.R. Wilmshurst. ASCE, 1997,123(6):755- 764.

[4] J. Wardenier, Y. Kurobane, J.A. Packer, Vegte G.J. van der and X.L. Zhao. Design guide for circular hollow section (CHS) joints under predominantly static loading. 2nd Edition, CIDECT Series "Construction with hollow steel sections" No.1, CIDECT, ISBN 978-3-938817-03-2, 2008.

DOI: 10.1002/stco.201410021

[5] IIW, Static design procedure for welded hollow section joints-Recommendations. 3rd Edition, International Institute of Welding, Sub-commission XV-E, Annual Assembly, Singapore, IIW Doc. XV-1329-09, 2009.

[6] Y. Makino, Y. Kurobane, K Ochi, et al. Database of Test and Numerical Analysis Results for Unstiffened Tubular Joints, II W Doc. XV-E-96-220, Hungary, 1996.

[7] Simple joint tests from the steel structure research office in Tongji University in Guangzhou International Exhibition Center, 2002.

[8] J. Wardenier, Qinlin Zhang, Dakang Liu. Hollow sections in structural applications[M]. Shanghai: Tongji University Press, 2004.

[9] E. M. Dexter, M. M. K. Lee .ASCE, 1999, 125 (2): 194-201.

[10] J.Wardenier. Hollow sections in structural applications[M]. The Netherlands, 2002.

[11] M. M. K. Lee, S.R. Wilmshurst. Journal of Structural Engineering, 1996, 122(8): 893-904.

[12] Jiandong Sun. Research on static behaviour and design method of unstiffened CHS K-joint series [D]. Shanghai: Tongji University, College of Civil Engineering, 2009.
