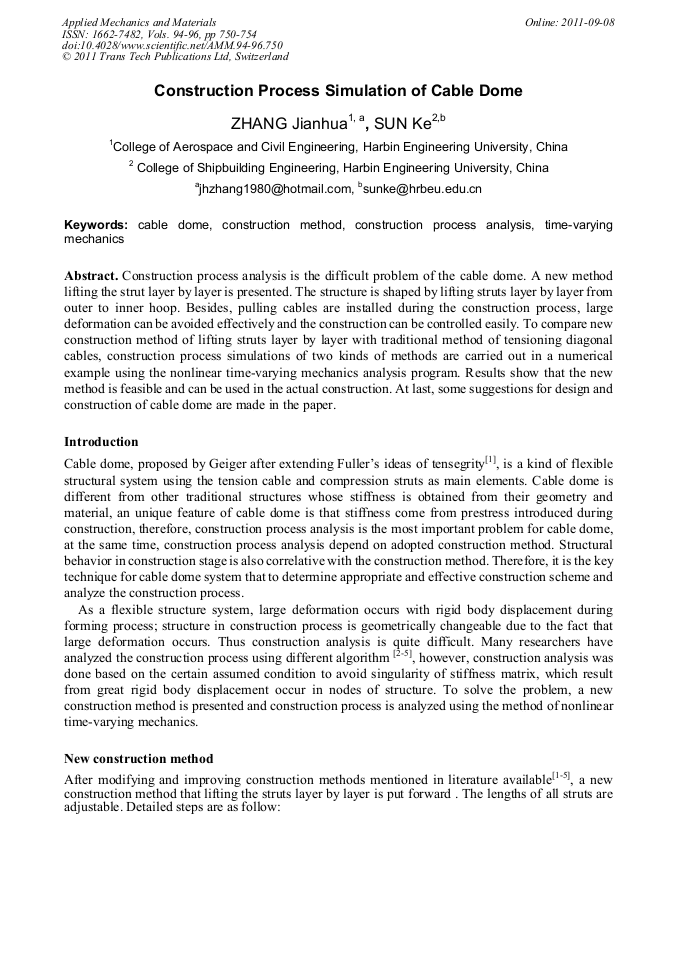

Construction Process Simulation of Cable Dome

Abstract:

Construction process analysis is the difficult problem of the cable dome. A new method lifting the strut layer by layer is presented. The structure is shaped by lifting struts layer by layer from outer to inner hoop. Besides, pulling cables are installed during the construction process, large deformation can be avoided effectively and the construction can be controlled easily. To compare new construction method of lifting struts layer by layer with traditional method of tensioning diagonal cables, construction process simulations of two kinds of methods are carried out in a numerical example using the nonlinear time-varying mechanics analysis program. Results show that the new method is feasible and can be used in the actual construction. At last, some suggestions for design and construction of cable dome are made in the paper.

• Periodical: Applied Mechanics and Materials (Volumes 94-96)
• Pages: 750-754
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.94-96.750
• Online since: September 2011
• Authors: Jian Hua Zhang, Ke Sun
• Keywords: Cable Dome, Construction Method, Construction Process Analysis, Time-Varying Mechanics

References

[1] D. H. Geiger, The Design and Construction of Two Cable Domes for the Korean Olympics, Proceedings of IASS-ASCE International Symposium on Shells, Membranes and Space Frames, Osaka. (1986), pp.265-272

[2] M. P. Levy. The Georgia Dome and Beyond Achieving Lightweight-long span Structure, Proceedings, IASS-ASCE International Symposium, (1994)560-562.

[3] Jianmin Tang, Zuyan Shen: The Research of Computation Method of Construction Process Simulation for Axial Symmetric Cable Domes With Circular Plane, China Civil Engineering Journal, Vol. 31(1998), pp.24-32. (In Chinese)

[4] Xingfe Yuan i, Shilin Dong: Inverse Analysis of Construction Process of Cable Dome, Journal of Building Structures, Vol. 22(2001), pp.74-78.(In Chinese)

[5] Zuyan Shen, Lixin Zhang:Simulation of Erection Procedures of Cable Dome Based on Nonlinear FEM, Chinese Journal of Computational Mechanics, Vol. 4(2002), pp.466-4717.

[6] Zhiyuan Cao :Construction Mechanics and Time-Varying Mechanics in Civil Engineering", China Civil Engineering Journal, Vol. 34(2001), pp.41-46. (In Chinese)

[7] Jianhua Zhang, Yigang Zhang:Application of the Secondary Development of ANSYS in Cable Dome Computation Program Design, Building Science Research of Shichuan, Vol. 33, (2007), pp.21-24. (In Chinese)
