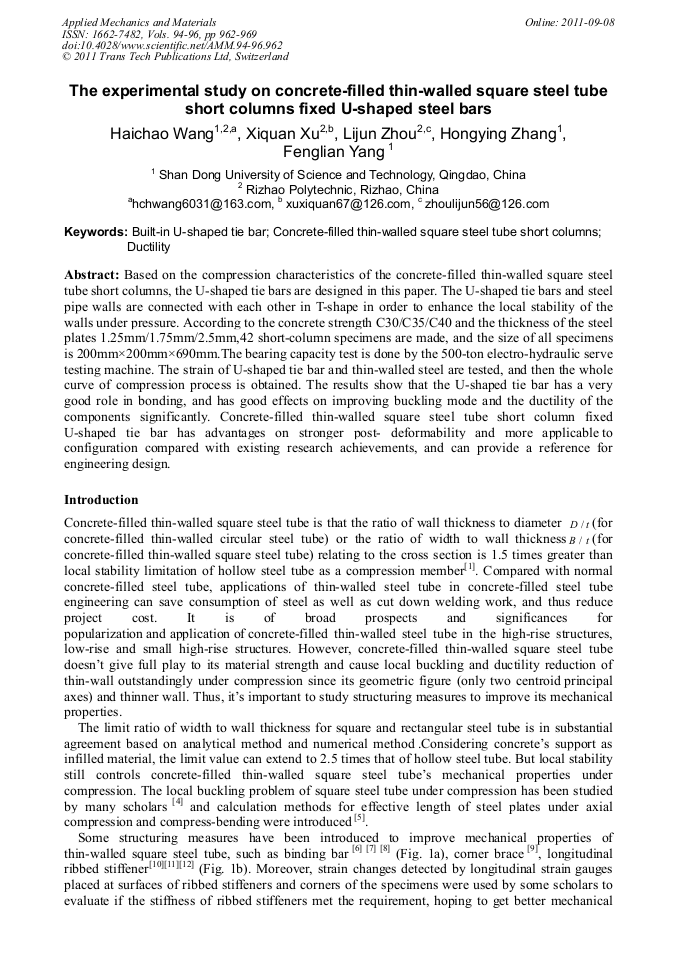

The Experimental Study on Concrete-Filled Thin-Walled Square Steel Tube Short Columns Fixed U-Shaped Steel Bars

Abstract:

Based on the compression characteristics of the concrete-filled thin-walled square steel tube short columns, the U-shaped tie bars are designed in this paper. The U-shaped tie bars and steel pipe walls are connected with each other in T-shape in order to enhance the local stability of the walls under pressure. According to the concrete strength C30/C35/C40 and the thickness of the steel plates 1.25mm/1.75mm/2.5mm,42 short-column specimens are made, and the size of all specimens is 200mm×200mm×690mm.The bearing capacity test is done by the 500-ton electro-hydraulic serve testing machine. The strain of U-shaped tie bar and thin-walled steel are tested, and then the whole curve of compression process is obtained. The results show that the U-shaped tie bar has a very good role in bonding, and has good effects on improving buckling mode and the ductility of the components significantly. Concrete-filled thin-walled square steel tube short column fixed U-shaped tie bar has advantages on stronger post- deformability and more applicable to configuration compared with existing research achievements, and can provide a reference for engineering design.

• Periodical: Applied Mechanics and Materials (Volumes 94-96)
• Pages: 962-969
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.94-96.962
• Online since: September 2011
• Authors: Hai Chao Wang, Xi Quan Xu, Li Jun Zhou, Hong Ying Zhang, Feng Lian Yang
• Keywords: Built-in U-Shaped Tie Bar, Concrete-Filled Thin-Walled Square Steel Tube Short Columns, Ductility

References

[1] Han Linhai and Yang Youfu： Modern technique of concrete-filled steel structure[M],China architecture&building press.Beijing(2004) (in Chinese)

[2] Tao Zhong andYu Qing: The novel composite structure column [M]. Science Press(2006),pp.11-38 (in Chinese)

[3] Cao Baozhu: The experimental study on the static behavior for concrete-filled steel component[D],Harbin institute of technology(2004)(in Chinese)

[4] Uy B: Local and post-local buckling of concrete filled steel welded tube columns[J].Journal of Constructional Steel research(1998) pp.47-72

DOI: 10.1016/s0143-974x(98)80102-8

[5] shanmugam N E and Lakshmi B,Uy B: An analytical model for thin-walled steel tube columns with concrete in-fill[J].Engineering Structure,vol24(6)(2002),pp.825-838

DOI: 10.1016/s0141-0296(02)00019-6

[6] Chenyong and Zhang yaochun: Experimental study and finite element analysis of square stub columns with tensile sheets of concrete-filled thin-walled steel tube[J]. Journal of building structures(2006),p.P23-29 (in Chinese)

[7] Chen Zongxi, Chen Xing,Ye Qunying and Luo Chiyu: The design of Guangzhou New China building [J].Journal of building structures,vol21(3)(2000),pp.2-9 (in Chinese)

[8] Li Zhijun: Basic research of the performance of concrete-filled Square Steel Tube fixed with Binding Bars under Axial and bias ComPression. South china university of technology(2002) (in Chinese)

DOI: 10.15407/fm24.03.427

[9] Huang C S,Yeh Y K and Liu G Y: Axial load behavior of stiffened concrete-filled steel columns[J].Journal of structure Engineering,ASCE,vol128(9) (2002),pp.1222-1230

DOI: 10.1061/(asce)0733-9445(2002)128:9(1222)

[10] Ge H B and Usami T: Strength of concrete-filled thin-walled steel tube column experiment[J]. Journal of structure Engineering,ASCE, ,vol118(11)(1992),pp.3036-3054

DOI: 10.1061/(asce)0733-9445(1992)118:11(3036)

[11] Kwon Y B,Song J Y,Kon K Y.The structural behaviour of concrete-filled steel piers[J].Proceedings of 16th Congress of IABSE,Iucerne,Switzerland.2000.

DOI: 10.2749/222137900796299075

[12] Tao Z,Han L H,Wang Z B.Experimental behaviour of stiffened concrete-filled thin-walled hollow steel structural(HSS)stub columns[J].Journal of Constructional Steel Rearch,2005,61(7): 962-958. [13]Desmond T P,Pekoz T,Intermediate stiffeners for thin-walled members[J].Journal of structure Engineering ASCE,1981,107(4): 627-64

DOI: 10.1016/j.jcsr.2004.12.003
