Dielectric Behavior of PVDF/PP-PT Nanocomposite Thin Films

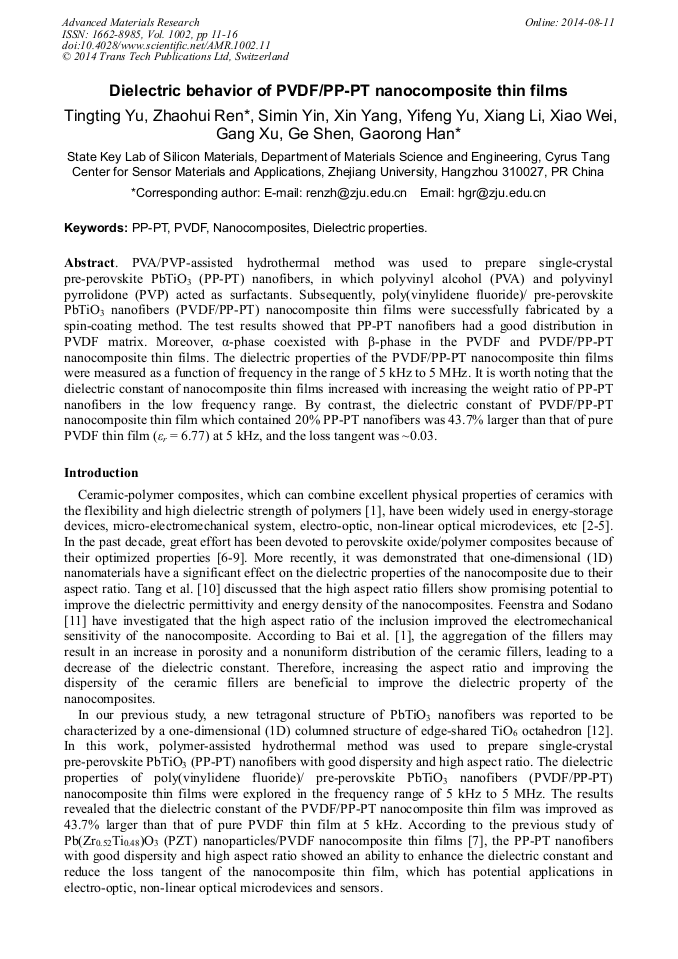

Article Preview

Abstract:

PVA/PVP-assisted hydrothermal method was used to prepare single-crystal pre-perovskite PbTiO₃ (PP-PT) nanofibers, in which polyvinyl alcohol (PVA) and polyvinyl pyrrolidone (PVP) acted as surfactants. Subsequently, poly (vinylidene fluoride)/ pre-perovskite PbTiO₃ nanofibers (PVDF/PP-PT) nanocomposite thin films were successfully fabricated by a spin-coating method. The test results showed that PP-PT nanofibers had a good distribution in PVDF matrix. Moreover, α-phase coexisted with β-phase in the PVDF and PVDF/PP-PT nanocomposite thin films. The dielectric properties of the PVDF/PP-PT nanocomposite thin films were measured as a function of frequency in the range of 5 kHz to 5 MHz. It is worth noting that the dielectric constant of nanocomposite thin films increased with increasing the weight ratio of PP-PT nanofibers in the low frequency range. By contrast, the dielectric constant of PVDF/PP-PT nanocomposite thin film which contained 20% PP-PT nanofibers was 43.7% larger than that of pure PVDF thin film (ε_r = 6.77) at 5 kHz, and the loss tangent was ~0.03.

You might also be interested in these eBooks

Environment-Enhancing Technology and Material Science Conference

Info:

Periodical:

Advanced Materials Research (Volume 1002)

Pages:

11-16

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1002.11

Citation:

Cite this paper

Online since:

August 2014

Authors:

Ting Ting Yu, Zhao Hui Ren*, Si Min Yin, Xin Yang, Yi Feng Yu, Xiang Li, Xiao Wei, Gang Xu, Ge Shen, Gao Rong Han

Keywords:

Dielectric Property, Nanocomposite, PP-PT, PVDF

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] Y. Bai, Z. Y. Cheng, V. Bharti, H. S. Xu, Q. M. Zhang: Appl. Phys. Lett. Vol. 76 (2000), p.3804.

[2] M. Arbatti, X. Shan, Z. Y. Cheng: Adv. Mater. Vol. 19 (2007), p.1369.

[3] R. O. P. Ortiz, A. Facchetti, T. J. Marks: Chem. Rev. Vol. 110 (2009), p.205.

[4] T. R. Gururaja, W. A. Schulze, L. E. Cross, R. E. Newnham, B. A. Auld, Y. J. Wang: IEEE T. Son. Ultrason. Vol. 32 (1985), p.481.

[5] M. Goel: Ceram. Int. Vol. 30 (2004), p.1147.

[6] A. Pelaiz-Barranco, R. Lopez-Noda: J. Appl. Phys. Vol. 102 (2007), p.114102.

[7] A. K. Zak, W. C. Gan, W. H. Abd. Majid, M. Darroudi, T. S. Velayutham: Ceram. Int. Vol. 37 (2011), p.1653.

[8] H. X. Tang, Y. R. Lin, H. A. Sodano: Proc. SPIE. Vol. 7978 (2011).

[9] R. Gregorio, M. Cestari, F. E. Bernardino: J. Mater. Sci. Vol.31 (1996), p.2925.

[10] H. X. Tang, Y. R. Lin, C. Andrews, H. A. Sodano: Nanotechnology Vol. 22 (2011), p.1.

[11] J. Feenstra, H. A. Sodano: J. Appl. Phys. Vol. 103 (2008), p.124108.

[12] Z. H. Ren, G. Xu, Y. Liu, X. Wei, Y. H. Zhu, X. B. Zhang, G. L. Lv, Y. W. Wang, Y. W. Zeng, P. Y. Du, W. J. Weng, G. Shen, J. Z. Jiang, G. R. Han: J. Am. Chem. Soc. Vol. 132 (2010), p.5572.

DOI: 10.1021/ja1011614

[13] Z. H. Ren, G. Xu, X. Wei, Y. Liu, G. Shen, G. R. Han: J. Am. Ceram. Soc. Vol. 90 (2007), p.2645.

[14] H. S. Qian, S. H. Yu, J. Y. Gong, L. B. Luo, L. F. Fei: Langmuir Vol. 22 (2006), p.3830.

[15] K. S. Chou, S. J. Lee: Colloids Surf. A Vol. 336 (2009), p.23.

[16] W. Ma, J. Zhang, S. Chen, X. Wang: Appl. Surf. Sci. Vol. 254 (2008), p.5635.

[17] S. S. Yu, W. T. Zheng, W. X. Yu, Y. J. Zhang, Q. Jiang, Z. D. Zhao: Macromolecules Vol. 42 (2009), p.8870.

[18] L. Yu, P. Cebe: Polymer Vol. 50 (2009), p.2133.

[19] S. Lanceros-Mendez, J. F. Mano, A. M. Costa, V. H. Schmidt: J. Macromol. Sci. Phys. B Vol. 40 (2001), p.517.

[20] K. Arshak, D. Morris, A. Arshak, O. Korostynska, E. Jafer, D. Waldron, J. Harris: Biomol. Eng. Vol. 23 (2006), p.253.

DOI: 10.1016/j.bioeng.2006.07.003

[21] H. Han, Y. Nakagawa, Y. Takai, K. Kikuchi, S. Tsuchitani, Y. Kosimoto: J. Micromech. Microeng. Vol. 22 (2012), p.085030.

DOI: 10.1088/0960-1317/22/8/085030

[22] M. Roy, J. Nelson, R. MacCrone, L. Schadler, C. Reed, R. Keefe: IEEE T. Dielect. El. In. Vol. 12 (2005), p.629.

[23] H. L. W. Chan, Q. Q. Zhang, W. Y. Ng, C. L. Choy: IEEE T. Dielect. El. In. Vol. 7 (2000), p.204.
