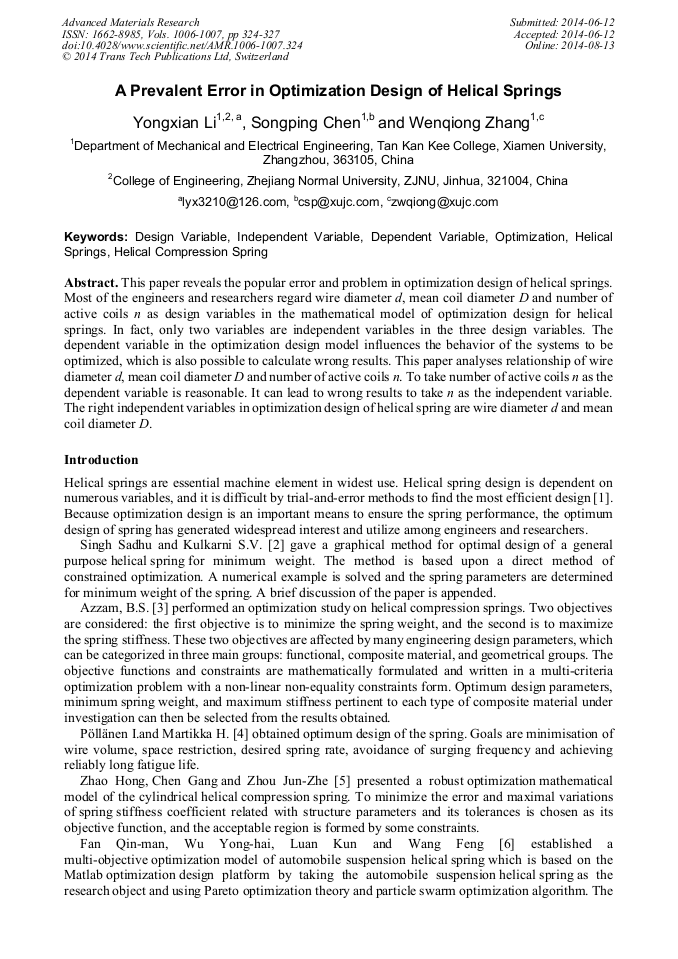

A Prevalent Error in Optimization Design of Helical Springs

Abstract:

This paper reveals the popular error and problem in optimization design of helical springs. Most of the engineers and researchers regard wire diameter d, mean coil diameter D and number of active coils n as design variables in the mathematical model of optimization design for helical springs. In fact, only two variables are independent variables in the three design variables. The dependent variable in the optimization design model influences the behavior of the systems to be optimized, which is also possible to calculate wrong results. This paper analyses relationship of wire diameter d, mean coil diameter D and number of active coils n. To take number of active coils n as the dependent variable is reasonable. It can lead to wrong results to take n as the independent variable. The right independent variables in optimization design of helical spring are wire diameter d and mean coil diameter D.

• Periodical: Advanced Materials Research (Volumes 1006-1007)
• Pages: 324-327
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1006-1007.324
• Online since: August 2014
• Authors: Yong Xian Li*, Song Ping Chen, Wen Qiong Zhang
• Keywords: Dependent Variable, Design Variable, Helical Compression Spring, Helical Springs, Independent Variable, Optimization

References

[1] M.F. Spotts, T.E. Shoup and L.E. Hornberger: Design of Machine Elements (Prentice-Hall, Inc., 2004).

[2] Singh Sadhu and Kulkarni S.V.: Journal of the Institution of Engineers (India): Mechanical Engineering Division, Vol. 57 (1976) No. 9, p.72.

[3] Azzam, B.S.: Proceedings of the Institution of Mechanical Engineers, Part D: Journal of Automobile Engineering, Vol. 224 (2010) No. 3, p.347.

[4] Pöllänen I. and Martikka H.: Advances in Engineering Software, Vol. 41 (2010) No. 3, p.410.

[5] Zhao Hong, Chen Gang and Zhou Jun-Zhe: Advanced Materials Research, Vol. 433-440 (2012), p.2201.

[6] Fan Qin-man, Wu Yong-hai, Luan Kun and Wang Feng: ICIC 2010 - 3rd International Conference on Information and Computing (Wuxi, China, June 4 - 6, 2010). Vol. 1, p.219.

DOI: 10.1109/cinc.2010.5643716

[7] Mohamed Taktak, Khalifa Omhenia, Abdessattar Alouia, Fakhreddine Dammakb and Mohamed Haddarb: Applied Acoustics, Vol. 77 (2014) No. 3, p.178.

[8] Ansel C. Ugural: Mechanical Design: An Integrated Approach (McGraw-Hall, Inc., 2004).

[9] Robert L. Mott: Machine Elements in Mechanical Design (Prentice-Hall, Inc., 2004).
