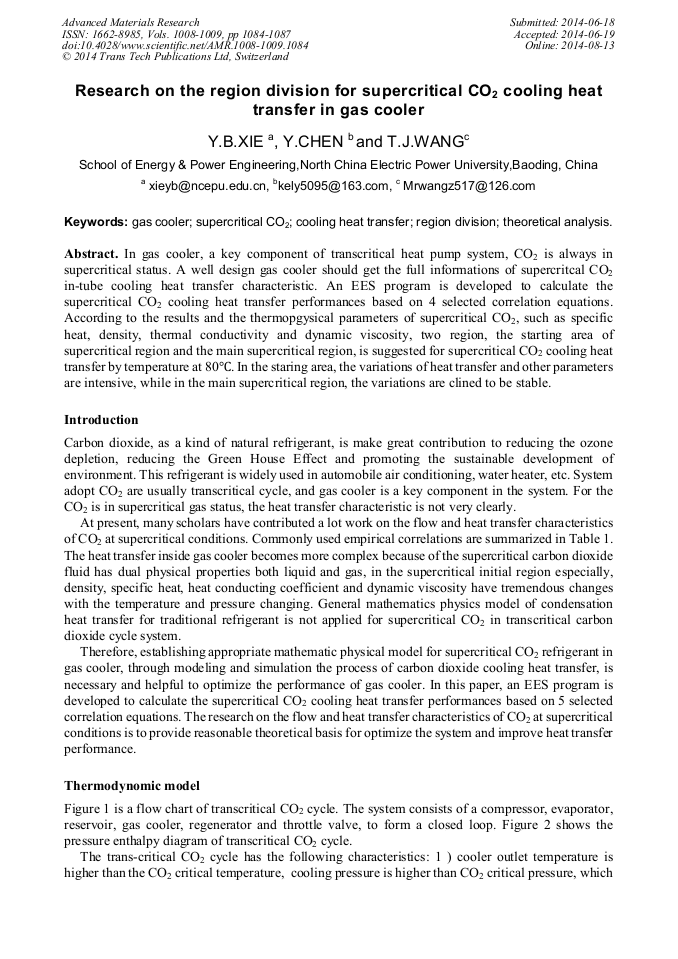

Research on the Region Division for Supercritical CO₂ Cooling Heat Transfer in Gas Cooler

Abstract:

In gas cooler, a key component of transcritical heat pump system, CO2 is always in supercritical status. A well design gas cooler should get the full informations of supercritcal CO2 in-tube cooling heat transfer characteristic. An EES program is developed to calculate the supercritical CO2 cooling heat transfer performances based on 4 selected correlation equations. According to the results and the thermopgysical parameters of supercritical CO2, such as specific heat, density, thermal conductivity and dynamic viscosity, two region, the starting area of supercritical region and the main supercritical region, is suggested for supercritical CO2 cooling heat transfer by temperature at 80°C. In the staring area, the variations of heat transfer and other parameters are intensive, while in the main supercritical region, the variations are clined to be stable.

• Periodical: Advanced Materials Research (Volumes 1008-1009)
• Pages: 1084-1087
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1008-1009.1084
• Online since: August 2014
• Authors: Ying Bai Xie, Yi Chen, Ti Jun Wang
• Keywords: Cooling Heat Transfer, Gas Cooler, Region Division, Supercritical CO₂, Theoretical Analysis

References

[1] Dittus FW, Boelter LMK. Heat transfer in automobileradiators of the tubular type[J]. University of CaliforniaPublications of Engineering, 1930, 2: 443–61.

[2] Petukhov BS, AV Polyakov, Boundaries of Regimes with worsened, Heat Transfer for Supercritical Pressure Coolant [J]. Teplofizika Vysokikh Temperature, 1974, 12(1): 221-224.

[3] Chen, N., Kwon, H., Ray, A. & Wong, R. Flow in the Pipes: Correlation between Fanning Friction Factor and Reynolds Number. Transport Process Laboratory, Carnegie Mellon University, Pittsburgh, Pennsylvania. (2005).

[4] Petrov NE, Popov VN. Heat transfer and resistance of carbon dioxide being cooled in the supercritical region [J]. Thermal Engineering, 1985, 32(3): 131–4.

[5] Son, C.H. & Park, S.J. An experimental study on heat transfer and pressure drop characteristics of carbon dioxide during gas cooling process in a horizontal tube [J]. International Journal of Refrigeration, 2006, 29: 539-546.

DOI: 10.1016/j.ijrefrig.2005.10.010

[6] Fang X, Bullard CW, Hrnjak PS. Heat transfer and pres- sure drop of gas cooling. ASHRAE Trans, 2001, 107 (Part1): 255–66.

[7] Gnielinski V. New equations for heat and mass transfer in turbulent pipe and channel flow[J]. International Chemical Engineering 1976, 16(2): 359–68.

[8] Huai, X.L., Koyama, S. & Zhao, T.S. An experimental study of flow and heat transfer of supercritical carbon dioxide in multiport mini channels under cooling conditions [J]. Chemical Engineering Science, 2005, 60: 3337-3345.

DOI: 10.1016/j.ces.2005.02.039

[9] Seok Ho Yoon, Ju Hyok Kim, Yun Wook Hwang. Heat transfer and pressure drop characteristics during the in-tube cooling process of carbon dioxide in thesupercritical reign [J]. International Journal of Refrigeration, 2003, (26): 857–864.

DOI: 10.1016/s0140-7007(03)00096-3
