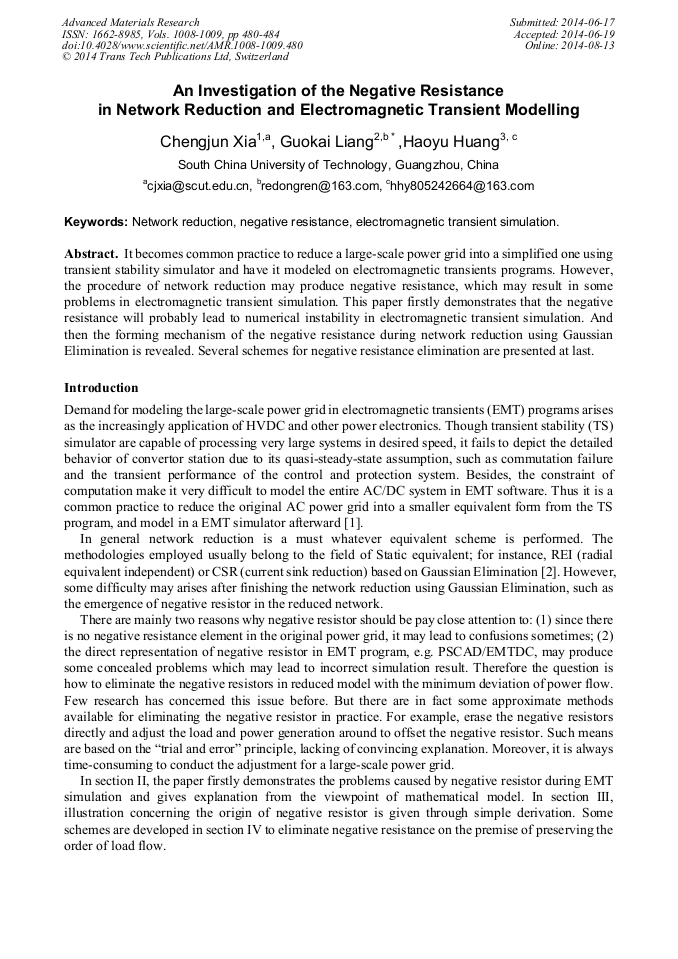

An Investigation of the Negative Resistance in Network Reduction and Electromagnetic Transient Modelling

Abstract:

It becomes common practice to reduce a large-scale power grid into a simplified one using transient stability simulator and have it modeled on electromagnetic transients programs. However, the procedure of network reduction may produce negative resistance, which may result in some problems in electromagnetic transient simulation. This paper firstly demonstrates that the negative resistance will probably lead to numerical instability in electromagnetic transient simulation. And then the forming mechanism of the negative resistance during network reduction using Gaussian Elimination is revealed. Several schemes for negative resistance elimination are presented at last.

• Periodical: Advanced Materials Research (Volumes 1008-1009)
• Pages: 480-484
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1008-1009.480
• Online since: August 2014
• Authors: Cheng Jun Xia*, Guo Kai Liang, Hao Yu Huang
• Keywords: Electromagnetic Transient Simulation, Negative Resistance, Network Reduction

References

[1] Xiaojiang Guo, Guangquan Bu, Xinli Song, Jian Zhang, Yong Tang, Comparison between electromagnetic And electromechanical transient simulation for large-scale multi-infeed DC system, in Proc. 2010 Power System Technology (POWERCON) Conf., pp.1-6.

DOI: 10.1109/powercon.2010.5666115

[2] Ni Yi-xin, Chen Shou-sun, and Zhang Bao-lin, Theory and analysis of dynamic power system,. vol. 1, Beijing: Tsinghua University Press, 2002. pp.339-340 (in chinese).

[3] Neville Watson and Jos Arrillaga, Power Systems Electromagnetic Transients Simulation,. Appendix C, London: Institution of engineering and technology pp.351-357.
