Influence of Evaporation Temperature on the Morphology, Polymorph and Mechanical Properties of Poly(vinylidene fluoride) Solution-Cast Membranes

Jie Liu; Ji Ding Li; Xiao Long Lu

doi:10.4028/www.scientific.net/AMR.1015.536

Paper Titles

The Influence of Donor-Doped Content on PTCR Effect of (Ba_1-_xSm_x)TiO₃ Based Ceramics Prepared by the Reduction Sintering-Reoxidation Method
p.517

First Principles Study on Adsorption for Different Concentration of H₂S on Fe(100)
p.521

The Plasma Treatment Influence on the Adhesive Wafer Bonding by the PDAP
p.526

Interaction between Enrofloxacin and the Extracellular Polymeric Substances from Platymonas Subcordiformis
p.531

Influence of Evaporation Temperature on the Morphology, Polymorph and Mechanical Properties of Poly(vinylidene fluoride) Solution-Cast Membranes
p.536

Progress in Research of the Combined Adsorption-Photocatalysis for the Removal of Volatile Organic Compounds
p.540

Phase Equilibrium Study at 220°C of Li⁺,Mg²⁺//Cl^-, SiO₃^2--H₂O Systerm
p.544

Investigation on the Fano Line Shaped Raman Modes of the Hydroxyl and Deuteroxyl Cobalt Chlorides
p.548

Factor Group Analysis on the Deformed Pyrochlore-Structure Hydroxyl Transition Metal Halides
p.553

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 1015Influence of Evaporation Temperature on the...

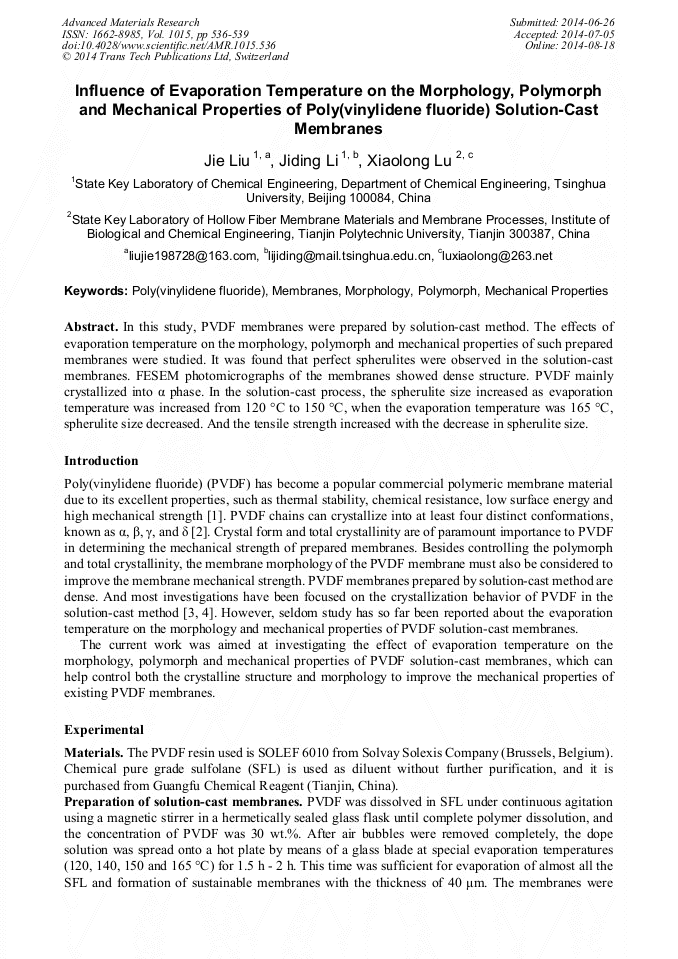

Influence of Evaporation Temperature on the Morphology, Polymorph and Mechanical Properties of Poly(vinylidene fluoride) Solution-Cast Membranes

Abstract:

In this study, PVDF membranes were prepared by solution-cast method. The effects of evaporation temperature on the morphology, polymorph and mechanical properties of such prepared membranes were studied. It was found that perfect spherulites were observed in the solution-cast membranes. FESEM photomicrographs of the membranes showed dense structure. PVDF mainly crystallized into α phase. In the solution-cast process, the spherulite size increased as evaporation temperature was increased from 120 °C to 150 °C, when the evaporation temperature was 165 °C, spherulite size decreased. And the tensile strength increased with the decrease in spherulite size.
