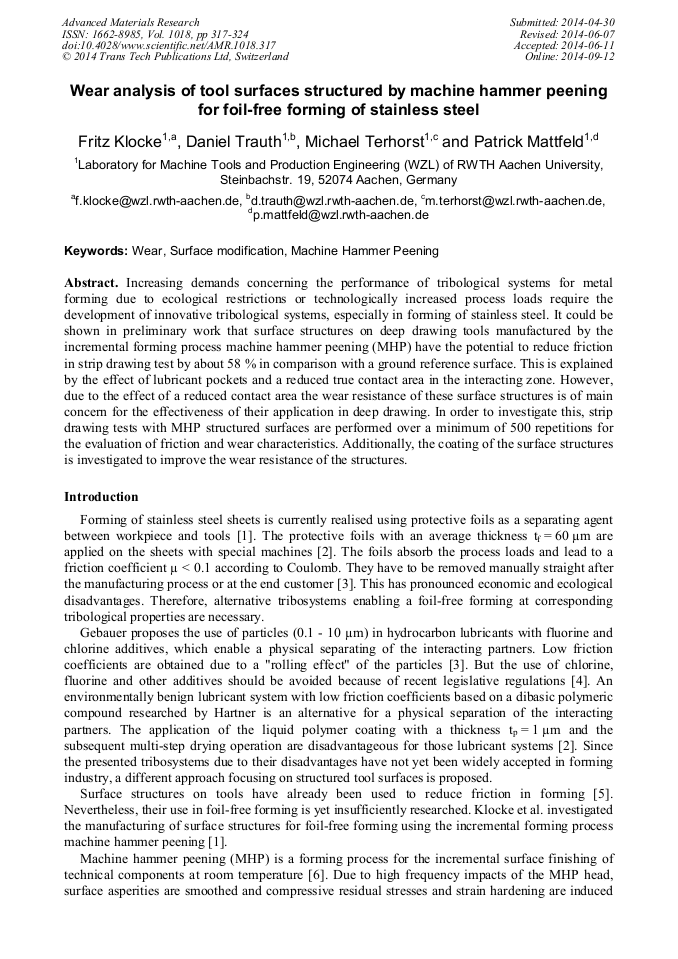

Wear Analysis of Tool Surfaces Structured by Machine Hammer Peening for Foil-Free Forming of Stainless Steel

Abstract:

Increasing demands concerning the performance of tribological systems for metal forming due to ecological restrictions or technologically increased process loads require the development of innovative tribological systems, especially in forming of stainless steel. It could be shown in preliminary work that surface structures on deep drawing tools manufactured by the incremental forming process machine hammer peening have the potential to reduce friction in strip drawing test by about 58 % in comparison with a ground reference surface. This is explained by the effect of lubricant pockets and a reduced true contact area in the interacting zone. However, due to the effect of a reduced contact area, the wear resistance of these surface structures is of main concern for the effectiveness of their application in deep drawing. Therefore, in this work strip drawing tests are performed over a minimum of 500 repetitions for the evaluation of friction characteristics. Additionally, the coating of the surface structures is investigated to improve the wear resistance of the structures.

• Periodical: Advanced Materials Research (Volume 1018)
• Pages: 317-324
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1018.317
• Online since: September 2014
• Authors: Fritz Klocke*, Daniel Trauth, Michael Terhorst, Patrick Mattfeld
• Keywords: Machine Hammer Peening, Surface Modification, Wear

References

[1] F. Klocke, D. Trauth, F. Schongen, A. Shirobokov, Analysis of friction between stainless steel sheets and machine hammer peened structured tool surfaces: experimental and numerical investigation of the lubricated interaction gap, WGP J. Production Engineering (2013).

DOI: 10.1007/s11740-013-0519-6

[2] E. Hartner, Verfahren zum Umformen eines flächigen Blechzuschnitts sowie zugehöriges Hausgerät, European patent application DE 10 2008 043 359 A1 (12. 05. 2010), BSH Bosch und Siemens Hausgeräte GmbH (2010).

[3] H. Gebauer, Verfahren zum Tiefziehen eines flächigen Blechzuschnitts mit einem Tiefziehwerkzeug, European patent application DE 10 2005 0236 158 A1 (23. 11. 2006), BSH Bosch und Siemens Hausgeräte GmbH (2006).

DOI: 10.1007/978-3-322-93425-3_12

[4] N. Bay, A. Azushima, P. Groche, I. Ishibashi, M. Merklein, M. Morishita, T. Nakamura, S. Schmid, M. Yoshida, Environmentally benign tribosystems for metal forming, CIRP Annals - Manufacturing Technology 59 (2) (2010) 760-780.

DOI: 10.1016/j.cirp.2010.05.007

[5] R. Wahl, Untersuchung des Einflusses von Mikrotexturierungen auf den einsinnigen, ölgeschmierten Gleitkontakt von Stahl/Saphir-Paarungen, KIT Scientific Publishing, Karlsruhe (2011).

[6] P. Groche, M. Steitz, Prozesskettenverkürzung im Werkzeugbau - Integration von Verfahren der maschinellen Oberflächeneinglättung, wt online 10, Düsseldorf (2011) 655-659.

DOI: 10.37544/1436-4980-2011-10-655

[7] F. Bleicher, C. Lechner, C. Habersohn, E. Kozeschnik, B. Adjassoho, H. Kaminski, Mechanism of surface modification using machine hammer peening technology, CIRP Annals - Manufacturing Technology 61(1) (2012) 375-378.

DOI: 10.1016/j.cirp.2012.03.139

[8] J. Wied, Oberflächenbehandlung von Umformwerkzeugen durch Festklopfen, PHD-Thesis TU Darmstadt (2011).

[9] F. Lienert, J. Hoffmeister, V. Schulze, Residual Stress Depth Distribution after Piezo Peening of Quenched and Tempered AISI 4140 - Proceedings of ICSR 9, Materials Science Forum (2013) 768-769.

DOI: 10.4028/www.scientific.net/msf.768-769.526

[10] D. Trauth, F. Klocke, F. Schongen, A. Shirobokov, Analyse und Modellierung der Schlagkraft beim elektro-dynamischen Festklopfen zur kraftbasierten Prozessauslegung, UTFScience III (2013).

DOI: 10.37544/1436-4980-2013-10-758

[11] F. Klocke, C. Kuwer, C. Zeppenfeld, Tribological Analysis of Diverse Ceramics in Contact with Stainless Steel under Different Lubricating Conditions, WGP J. Production Engineering, Annals of the German Academic Society for Production Engineering (2006).

[12] F. Klocke, D. Trauth, M. Terhorst, P. Mattfeld, Friction analysis of alternative tribosystems for a foil free forming of stainless steel using strip drawing test, accepted by WGP J. Production Engineering (June 2014).

DOI: 10.1007/s11740-014-0560-0

[13] M. Steitz, K. Weigel, M. Weber, J. Scheil, C. Müller, Coating of Deep Rolled and Hammer Peened Deep Drawing Tools, Advanced Materials Research 769 (2013) 245-252.

DOI: 10.4028/www.scientific.net/amr.769.245
