Comparison and Analysis on the Impact of Two Typical Rearview Mirrors on Aerodynamic Performance

Abstract:

This paper aims to study the impact of the rearview mirror shape on aerodynamic performance. Two typical rearview mirrors were selected to conduct the wind tunnel test, and the test result showed that the noise on the rear monitoring point of the mirror 1 was lower than that of the mirror 2. This paper then conducted simulating computation through computational fluid mechanics (CFD) theory and Fluent software, and obtained the size of the monitoring points of the two typical rearview mirrors, static pressure chart, motion pattern and turbulent kinetic energy distribution diagram, and sequentially analyzed the reason for more noise of the mirror 2. The study shows that different mirror cover structures have a great influence on the flow line flowing through the rearview mirror cover, and significantly influenced the rear flow field of the rearview mirror and the static pressure and the turbulent kinetic energy of the monitoring point.

You might also be interested in these eBooks

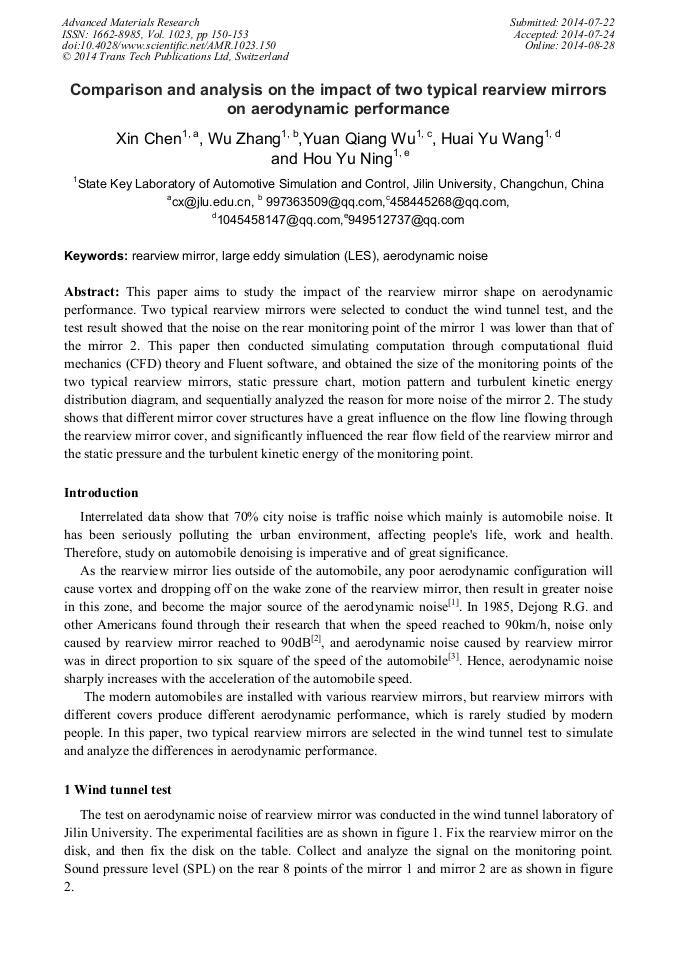

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1023)

Pages:

150-153

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1023.150

Citation:

Cite this paper

Online since:

August 2014

Authors:

Xin Chen, Wu Zhang*, Yuan Qiang Wu, Huai Yu Wang, Hou Yu Ning

Keywords:

Aerodynamic Noise, Large Eddy Simulation (LES), Rearview Mirror

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] YANG Bo, FU Li-min: The application Steady state numerical simulation in aerodynamic noise out of car. Journal of Jilin University (Engineering and Technology Edition), 2007, Vol. 37.

Google Scholar

[2] Ye L, Naohiko K, Hiroyuki T, at al. Evaluation of wind noise sources using experimental and computational methods[R]. SAE Technical Paper 2006-01-0343, (2006).

Google Scholar

[3] Wang Yiping, Gu Zhengqi, Yang Xue, etc. Simulated Analysis and Control of Aerodynamic Noise of Rearview Mirror of Minibus. Journal of Aerospace Power 2009, Vol24(7）.

Google Scholar

[4] Jun Wei, Wu Yafeng, Chen Geng. Comparison and Application of Numerical Computation Methods on Aerodynamic Noise. Noise and Vibration Control, 2012, Vol4.

Google Scholar
