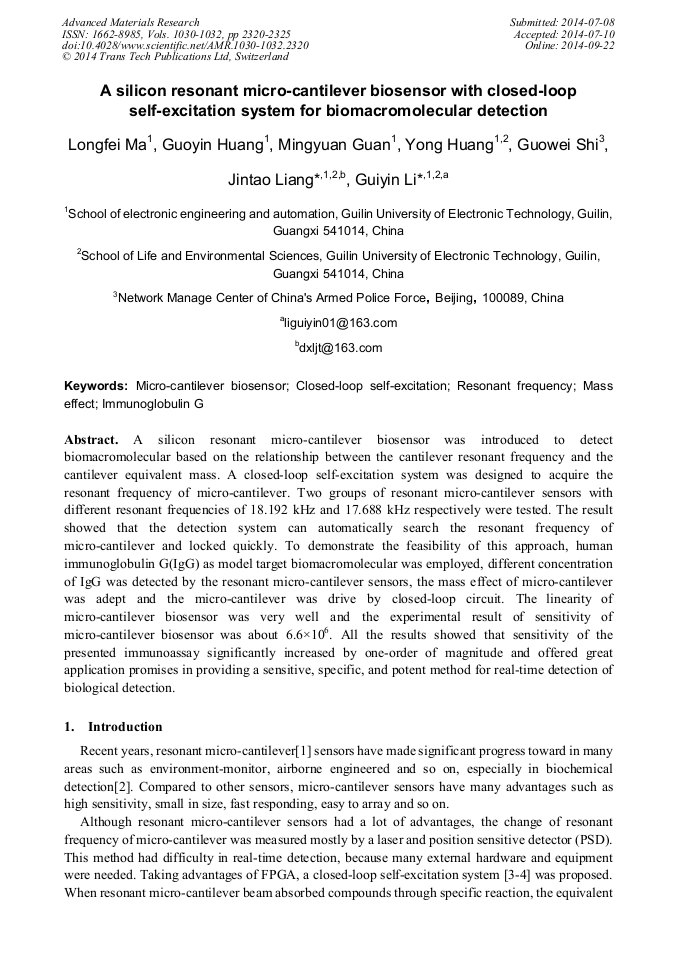

A Silicon Resonant Micro-Cantilever Biosensor with Closed-Loop Self-Excitation System for Biomacromolecular Detection

Abstract:

A silicon resonant micro-cantilever biosensor was introduced to detect biomacromolecular based on the relationship between the cantilever resonant frequency and the cantilever equivalent mass. A closed-loop self-excitation system was designed to acquire the resonant frequency of micro-cantilever. Two groups of resonant micro-cantilever sensors with different resonant frequencies of 18.192 kHz and 17.688 kHz respectively were tested. The result showed that the detection system can automatically search the resonant frequency of micro-cantilever and locked quickly. To demonstrate the feasibility of this approach, human immunoglobulin G(IgG) as model target biomacromolecular was employed, different concentration of IgG was detected by the resonant micro-cantilever sensors, the mass effect of micro-cantilever was adept and the micro-cantilever was drive by closed-loop circuit. The linearity of micro-cantilever biosensor was very well and the experimental result of sensitivity of micro-cantilever biosensor was about 6.6×10⁶. All the results showed that sensitivity of the presented immunoassay significantly increased by one-order of magnitude and offered great application promises in providing a sensitive, specific, and potent method for real-time detection of biological detection.

• Periodical: Advanced Materials Research (Volumes 1030-1032)
• Pages: 2320-2325
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1030-1032.2320
• Online since: September 2014
• Authors: Long Fei Ma, Guo Yin Huang, Ming Yuan Guan, Yong Huang, Guo Wei Shi, Jin Tao Liang, Gui Yin Li*
• Keywords: Closed-Loop Self-Excitation, Immunoglobulin G, Mass Effect, Micro-Cantilever Biosensor, Resonant Frequency

References

[1] Roy S Fleischman A, Benzel E C, et al. Basic science symposium II: MEMS technology. SAS Journal, 2008, 2(2): 120-129.

[2] Yihan Tao, Xinxin Lia, Tiegang Xua, Haitao Yua, Pengcheng Xua, Bin Xiong, Changzheng Wei. Resonant cantilever sensors operated in a high-Q in-plane mode for real-time bio/chemical detection in liquids. Sensors and Actuators B, vol. 157, (2011).

DOI: 10.1016/j.snb.2011.05.030

[3] Bo GUO, Shibin LIU, Jintao LIANG, Wenguang Feng, Yuxin LIU and Juping LI. Study on resonant characteristics of closed-loop controlled Micro-cantilever. Key Engineering Materials, vol. 483, (2011), 177-121.

DOI: 10.4028/www.scientific.net/kem.483.117

[4] Yeolho Lee, Geunbae Lim, Wonkyu Moon. A self-excited micro-cantilever biosensor actuated by PZT using the mass micro balancing technique. Sensors and Actuators A, vol. 130-131, (2006) , 105-110.

DOI: 10.1016/j.sna.2005.11.067

[5] Dunckley, Heather, Fulcher, Rachael H. N. S, et al: IgG and the sum of the subclasses: What is it good for? Pathology - Journal of the RCPA, (2014).

DOI: 10.1097/01.pat.0000443486.27787.dc

[6] Delic-Sarac M, Izetbegovic S, Karamehic J, et al: Detection methods of immunoglobulin IgG in CSF and serum, Med Arh, vol. 67, (2013), 368-371.

DOI: 10.5455/medarh.2013.67.368-371

[7] Tianhua Zhang, Shantan Talla, Zhongcheng Gong, et al: Biochemical sensing with a polymer-based micromachined Fabry-Perot sensor, Optics Express, (2010).

DOI: 10.1364/oe.18.018394

[8] Lvov Y. Handbook of surfaces and interfaces of materials, (2001).

[9] Lavalle Ph, Voegel J, Vautier D, et al.: Dynamic aspects of films prepared by a sequential deposition of species, perspectves for smart and responsive materials Adv. Mater, (2011), 1191-1221.

DOI: 10.1002/adma.201003309

[10] Hutomo Suryo Wasisto, Stephan Merzsch, Andreas Waag, Erik Uhd, Tunga Salthammer, Erwin Peiner, Airborne Engineered nanoparticle mass sensor based on a silicon resonant cantilever, Sensors and Actuators B 180(2013)77-89.

DOI: 10.1016/j.snb.2012.04.003
