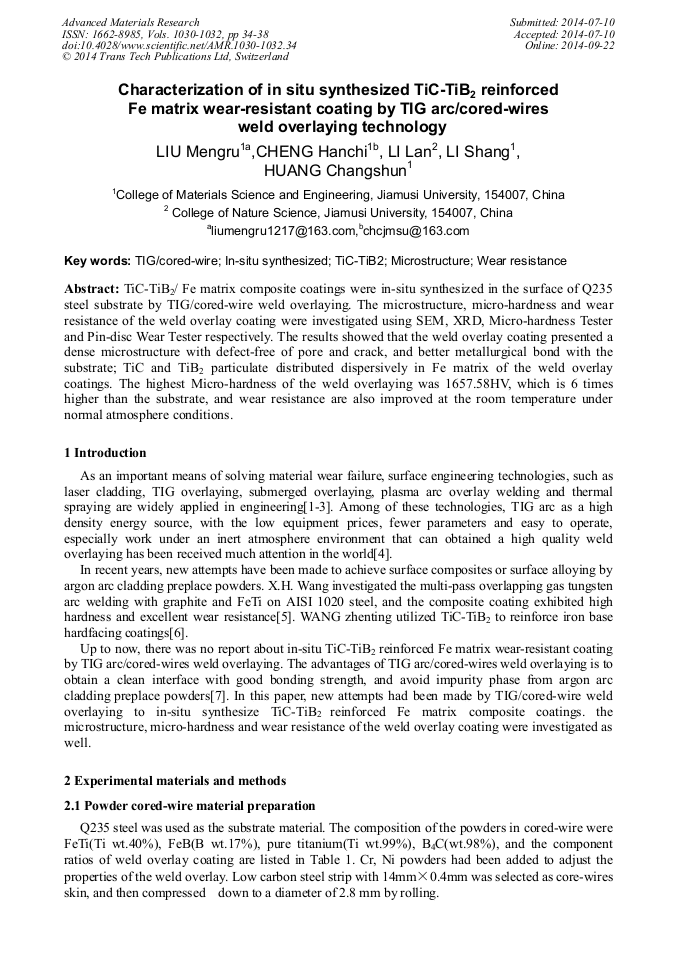

Characterization of In Situ Synthesized TiC-TiB₂ Reinforced Fe Matrix Wear-Resistant Coating by TIG Arc/Cored-Wires Weld Overlaying Technology

Abstract:

TiC-TiB₂/ Fe matrix composite coatings were in-situ synthesized in the surface of Q235 steel substrate by TIG/cored-wire weld overlaying. The microstructure, micro-hardness and wear resistance of the weld overlay coating were investigated using SEM, XRD, Micro-hardness Tester and Pin-disc Wear Tester respectively. The results showed that the weld overlay coating presented a dense microstructure with defect-free of pore and crack, and better metallurgical bond with the substrate; TiC and TiB₂ particulate distributed dispersively in Fe matrix of the weld overlay coatings. The highest Micro-hardness of the weld overlaying was 1657.58HV, which is 6 times higher than the substrate, and wear resistance are also improved at the room temperature under normal atmosphere conditions.

You might also be interested in these eBooks

Materials, Transportation and Environmental Engineering II

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 1030-1032)

Pages:

34-38

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1030-1032.34

Citation:

Cite this paper

Online since:

September 2014

Authors:

Meng Ru Liu*, Han Chi Cheng, Lan Li, Shang Li, Chang Shun Huang

Keywords:

In Situ Synthesized, Microstructure, TiC-TiB2, TIG/Cored-Wire, Wear Resistance

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Menon.R. Recent advances in cored wires for hardfacing [J]. Welding Journal. 2002, 82 (11): 53~58.

Google Scholar

[2] B. J. Kooi, Y. T. Pei, J. Th. M. De Hosson. The evolution of microstructure in a laser clad TiB-Ti composite coating [J]. Act a Materialia. 2003, 51(1) : 831~845.

DOI: 10.1016/s1359-6454(02)00475-5

Google Scholar

[3] Chiang K A, Chen Y C. Microstructural characterization and microscopy analysis of laser cladding Stellite 12 and tungsten carbide[J]. Journal of Materials Processing Technology. 2007, 182 (1-3): 297~302.

DOI: 10.1016/j.jmatprotec.2006.08.007

Google Scholar

[4] S. Buytoz, M. Ulutan, M. M. Yildirim. Dry sliding wear behavior of TIG welding clad WC composite coatings[J]. Applied Surface Science. 2005 (252): 1313~1323.

DOI: 10.1016/j.apsusc.2005.02.088

Google Scholar

[5] X.H. Wang, S.L. Song. Characterization of in situ synthesized TiC particle reinforced Fe-based composite coatings produced by multi-pass overlapping GTAW melting process[J]. Surface & Coatings Technology. 201, 2007: 5899–5905.

DOI: 10.1016/j.surfcoat.2006.10.042

Google Scholar

[6] WANG Zhen-ting, ZHOU Xiao-hui, ZHAO Guo-gang. Microstructure and formation mechanism of in-situ TiC-TiB2/Fe composite coating[J]. Trans. Nonferrous Met. Soc. China. 2008(18): 831~835.

DOI: 10.1016/s1003-6326(08)60144-2

Google Scholar

[7] A. Monfared, A.H. Kokabi. Microstructural studies and wear assessments of Ti/TiC surface composite coatings on commercial pure Ti produced by titanium cored wires and TIG process[J]. Materials Chemistry and Physics. 137, 2013: 959~966.

DOI: 10.1016/j.matchemphys.2012.11.009

Google Scholar
