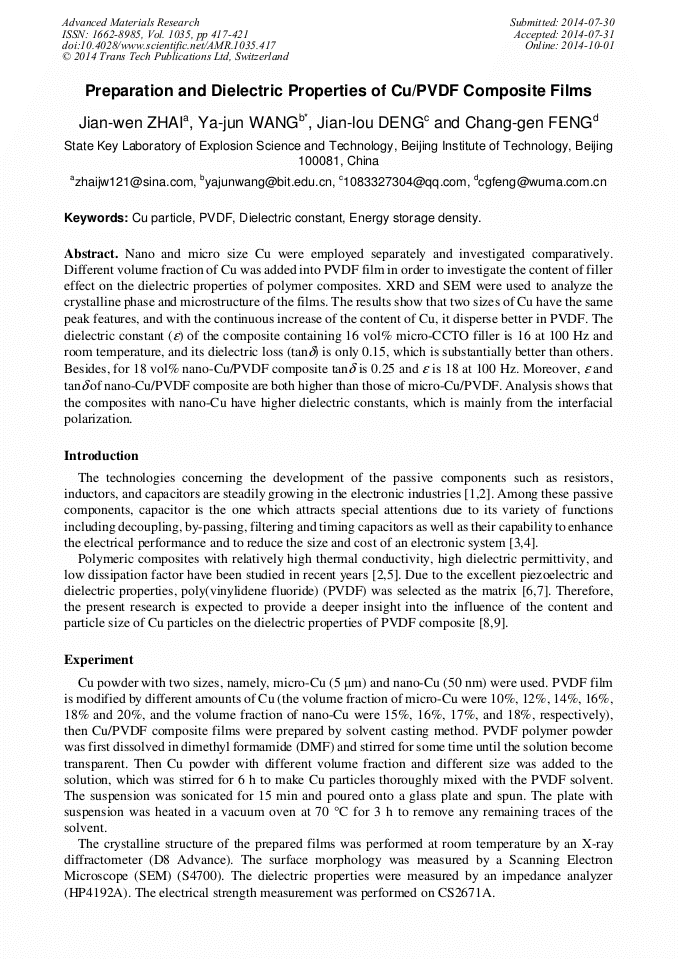

Preparation and Dielectric Properties of Cu/PVDF Composite Films

Abstract:

nanoand micro size Cu were employed separately and investigated comparatively. Different volume fraction of Cu was added into PVDF film in order to investigate the content of filler effect on the dielectric properties of polymer composites. XRD and SEM were used to analyze the crystalline phase and microstructure of the films. The results show that two sizes of Cu have the same peak features, and with the continuous increase of the content of Cu, it disperse better in PVDF. The dielectric constant (ε) of the composite containing 16 vol% micro-CCTO filler is 16 at 100 Hz and room temperature, and its dielectric loss (tanδ) is only 0.15, which is substantially better than others. Besides, for 18 vol% nanoCu/PVDF composite tanδ is 0.25 and ε is 18 at 100 Hz. Moreover, ε and tanδ of nanoCu/PVDF composite are both higher than those of micro-Cu/PVDF. Analysis shows that the composites with nanoCu have higher dielectric constants, which is mainly from the interfacial polarization.

You might also be interested in these eBooks

Proceedings of 2014 International Conference on Material Science and Engineering

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1035)

Pages:

417-421

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1035.417

Citation:

Cite this paper

Online since:

October 2014

Authors:

Jian Wen Zhai, Ya Jun Wang*, Jian Lou Deng, Chang Gen Feng

Keywords:

Cu Particle, Dielectric Constant, Energy Storage Density, PVDF

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] J. Lu, C.P. Wong, Recent advances in high-k nanocomposite materials for embedded capacitor applications, IEEE. T. Dielect. El. In. 5 (2008) 1322-1328.

DOI: 10.1109/tdei.2008.4656240

Google Scholar

[2] K. Sonoda, M. Teirikangas, J. Juuti, Y. Moriya, H. Jantunen, Effect of surface modification on dielectric and magnetic properties of metal powder/polymer nanocomposites, J. Magn. Magn. Mater. 17 (2011) 2281-2286.

DOI: 10.1016/j.jmmm.2011.04.007

Google Scholar

[3] W. Zhou, J. Zuo, W. Ren, Thermal conductivity and dielectric properties of Al/PVDF composites, Compos. Part A-Appl. S. 4 (2012) 658-664.

DOI: 10.1016/j.compositesa.2011.11.024

Google Scholar

[4] L. Chu, Q. Xue, J. Sun, F. Xia, W. Xing, D. Xia, M. Dong, Porous graphene sandwich/poly(vinylidene fluoride) composites with high dielectric properties, Compos. Sci. Technol. 86 (2013) 70-75.

DOI: 10.1016/j.compscitech.2013.07.001

Google Scholar

[5] X. Wu, Y. Wang, Q. Zeng, Reliability of high energy density ceramic capacitors, Procedia Eng. 45 (2012) 998-1003.

DOI: 10.1016/j.proeng.2012.08.272

Google Scholar

[6] Y.J. Wang, F.F. Wang, L.J. Xu, Effect of BiCl3 on the morphology and property of PVDF films, Adv. Mater. Res. 804 (2013) 74-78.

Google Scholar

[7] F.F. Wang, Y.J. Wang, Z.B. Ren, Dielectric properties of CCTO/PVDF composite films, Adv. Mater. Res. 816-817 (2013) 276-279.

DOI: 10.4028/www.scientific.net/amr.816-817.276

Google Scholar

[8] W. Yang, S. Yu, R. Sun, R. Du, Nano- and microsize effect of CCTO fillers on the dielectric behavior of CCTO/PVDF composites, Acta Mater. 14 (2011) 5593-5602.

DOI: 10.1016/j.actamat.2011.05.034

Google Scholar

[9] H. Rekik, Z. Ghallabi, I. Royaud, M. Arous, G. Seytre, G. Boiteux, A. Kallel, Dielectric relaxation behaviour in semi-crystalline polyvinylidene fluoride (PVDF)/TiO2 nanocomposites, Compos. Part B-Eng. 45 (2013) 1199-1206.

DOI: 10.1016/j.compositesb.2012.08.002

Google Scholar
