Changes in the Structure and Properties of the Steel S700MC by Heat Treatment

Article Preview

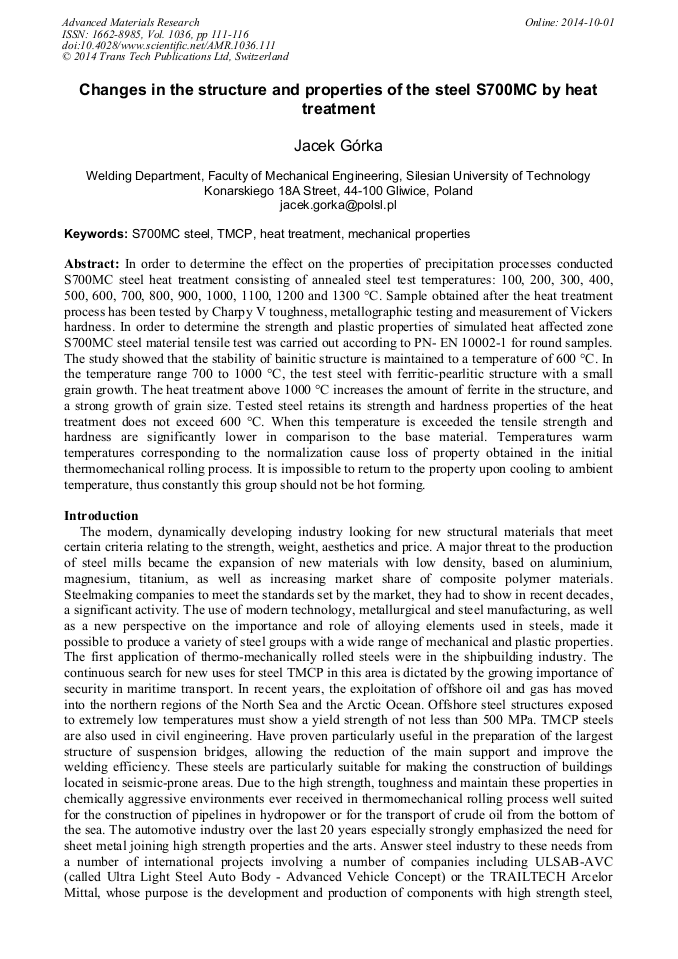

Abstract:

In order to determine the effect on the properties of precipitation processes conducted S700MC steel heat treatment consisting of annealed steel test temperatures: 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1100, 1200 and 1300 °C. Sample obtained after the heat treatment process has been tested by Charpy V toughness, metallographic testing and measurement of Vickers hardness. In order to determine the strength and plastic properties of simulated heat affected zone S700MC steel material tensile test was carried out according to PN-EN 10002-1 for round samples. The study showed that the stability of bainitic structure is maintained to a temperature of 600 °C. In the temperature range 700 to 1000 °C, the test steel with ferritic-pearlitic structure with a small grain growth. The heat treatment above 1000 °C increases the amount of ferrite in the structure, and a strong growth of grain size. Tested steel retains its strength and hardness properties of the heat treatment does not exceed 600 °C. When this temperature is exceeded the tensile strength and hardness are significantly lower in comparison to the base material. Temperatures warm temperatures corresponding to the normalization cause loss of property obtained in the initial thermomechanical rolling process. It is impossible to return to the property upon cooling to ambient temperature, thus constantly this group should not be hot forming.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

111-116

Citation:

Online since:

October 2014

Authors:

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] V. Flaxa, J. Shaw: Material applications in ULSAB-AVC, Steel Grips 1/4, 2003, s. 255-261.

Google Scholar

[2] C. Mikia, K. Homma, T. Tominaga: High strength and high performance steels and their use in bridge structures Journal of Constructional Steel Research 58 (2002), p.3–20.

DOI: 10.1016/s0143-974x(01)00028-1

Google Scholar

[3] C. Lee, H. Shin, K. Park: Evaluation of high strength TMCP steel weld for use in cold regions, Journal of Constructional Steel Research 74 (2012) p.134–139.

DOI: 10.1016/j.jcsr.2012.02.012

Google Scholar

[4] V. Ollilainen, H. Hurmola, H. Pontinen: Mechanical properties and machinability of a high-strength, medium-carbon, microalloyed steel, Journal materials for energy systems, Volume 5, No. 4, March (1984).

DOI: 10.1007/bf02835720

Google Scholar

[5] J. Górka: Influence of welding thermal cycling on the join properties of S700MC steel treated using thermomechanical method, 15th International Conference on Experimental Mechanics, 22-27 June 2012, Porto, Portugal, pp.197-198.

Google Scholar

[6] T. Węgrzyn, J. Piwnik, R. Wieszala, D. Hadys: Control over the steel welding structure parameters by micro-jet cooling, vol 57, iss 3 Archives of Metallurgy and Materials, pp.679-684.

DOI: 10.2478/v10172-012-0073-9

Google Scholar

[7] T. Węgrzyn, J. Piwnik, R. Wieszala, D. Hadys: Acicular ferrite in micro welding technologies, Archives of Metallurgy and Materials, Tom 59, nr 2, (2014).

DOI: 10.2478/amm-2014-0096

Google Scholar

[8] A. Lisiecki : Diode laser welding of high yield steel. Proc. of SPIE Vol. 8703, Laser Technology 2012: Applications of Lasers, 87030S (January 22, 2013), DOI: 10. 1117/12. 2013429.

DOI: 10.1117/12.2013429

Google Scholar

[9] D. Janicki, High Power Diode Laser Cladding of Wear Resistant Metal Matrix Composite Coatings, Solid State Phenomena, Mechatronic Systems and Materials V, 199 (2013) 587-592 DOI: 10. 4028/www. scientific. net/SSP. 199. 587.

DOI: 10.4028/www.scientific.net/ssp.199.587

Google Scholar

[10] T. Tański, L.A. Dobrzanski, L. Cizek: Influence of heat treatment on structure and properties of the cast magnesium alloys, Advanced Materials Research 15-17 (2007) 491-496 DOI: 10. 4028/www. scientific. net/AMR. 15-17. 491.

DOI: 10.4028/www.scientific.net/amr.15-17.491

Google Scholar

[11] W. Sitek W, L.A. Dobrzański: Comparison of hardenability calculation methods of the heat-treatable constructional steels, Journal Of Materials Processing Technology, Vol. 64, Issue: 1-3  (1995)  117-126.

DOI: 10.1016/s0924-0136(96)02559-9

Google Scholar

[12] W. Ozgowicz, K. Labisz: Analysis of the state of the fine-dispersive precipitations in the structure of high strength steel Weldox 1300 by means of electron diffraction, Journal of Iron and Steel Research, International 18, 135-142 (2011).

Google Scholar

[13] L.A. Dobrzański, A. Grajcar, W. Borek: Microstructure evolution of C-Mn-Si-Al-Nb high-manganese steel during the thermomechanical processing, Materials Science Forum 638 (2010) 3224-3229.

DOI: 10.4028/www.scientific.net/msf.638-642.3224

Google Scholar

[14] A. Grajcar, W. Borek: The thermo-mechanical processing of high-manganese austenitic TWIP-type steels, Archives of Civil and Mechanical Engineering 8 (4) (2008) 29-38.

DOI: 10.1016/s1644-9665(12)60119-8

Google Scholar
