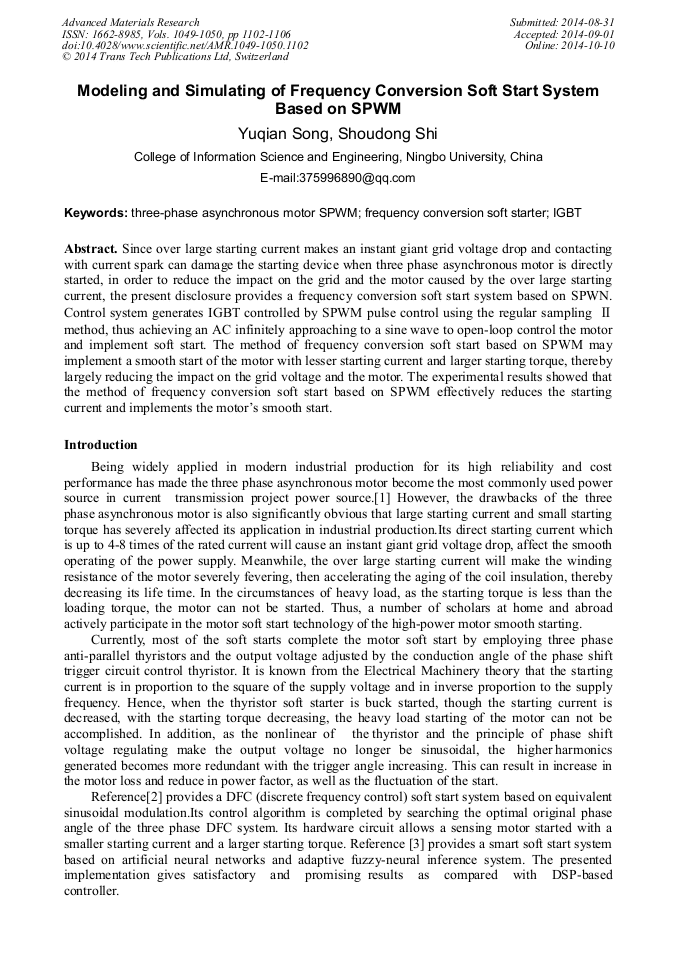

Modeling and Simulating of Frequency Conversion Soft Start System Based on SPWM

Abstract:

Since over large starting current makes an instant giant grid voltage drop and contacting with current spark can damage the starting device when three phase asynchronous motor is directly started, in order to reduce the impact on the grid and the motor caused by the over large starting current, the present disclosure provides a frequency conversion soft start system based on SPWN. Control system generates IGBT controlled by SPWM pulse control using the regular sampling II method, thus achieving an AC infinitely approaching to a sine wave to open-loop control the motor and implement soft start. The method of frequency conversion soft start based on SPWM may implement a smooth start of the motor with lesser starting current and larger starting torque, thereby largely reducing the impact on the grid voltage and the motor. The experimental results showed that the method of frequency conversion soft start based on SPWM effectively reduces the starting current and implements the motor’s smooth start.

• Periodical: Advanced Materials Research (Volumes 1049-1050)
• Pages: 1102-1106
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1049-1050.1102
• Online since: October 2014
• Authors: Yu Qian Song*, Shou Dong Shi
• Keywords: Frequency Conversion Soft Starter, IGBT, Three-Phase Asynchronous Motor SPWM

References

[1] Zhang C, Liao Z, Yang M. Research on Soft Start Method for Buck-Boost Bi-directional DC-DC Converter of Fuel Cell Power System[C]/Circuits, Communications and Systems, 2009. PACCS'09. Pacific-Asia Conference on. IEEE, 2009: 326-329.

DOI: 10.1109/paccs.2009.129

[2] Hongwei Ma , Yongdong Li , Zedong Zheng. A Discrete Frequency Control Method Based on Equivalent Sinusoidal　Modulation for Thyristorized Soft Starters[C] . IEEE CONFERENCE Electrical Machines and Systems (ICEMS), 2010 : 937 - 941.

[3] Syed Abdul Rahman Kashif , Muhammad Asghar Saqib. Soft Starting of Induction Motors using Neuro Fuzzy and Soft Computing[C]. Second International Conference on Electrical Engineering; 2008: 1-7.

DOI: 10.1109/icee.2008.4553943

[4] Yuan Y, Yong G, Nan L. Design of three-phase SPWM signal generation system based on soft-switch technology[C]/Electronic Measurement and Instruments, 2007. ICEMI'07. 8th International Conference on. IEEE, 2007: 937-941.

DOI: 10.1109/icemi.2007.4351299

[5] Yang Ping , Shiping Yang. An Improved Algorithm for Harmonic Suppression of VVVF[C]. International Conference on Mechatronics & Automation, 2005: 1429-1432.

DOI: 10.1109/icma.2005.1626764

[6] Zhang L, Wu R, Yang Y. A high-speed and low-power synchronous and asynchronous packaging circuit based on standard gates under four-phase one-hot encoding[C]/Electronic Packaging Technology (ICEPT), 2013 14th International Conference on. IEEE, 2013: 521-524.

DOI: 10.1109/icept.2013.6756525

[7] Janin L, Edwards D. Software visualisation techniques adapted and extended for asynchronous hardware design[C]/Information Visualisation, 2005. Proceedings. Ninth International Conference on. IEEE, 2005: 347-356.

DOI: 10.1109/iv.2005.119
