An Improved Bootstrapped Switch

Abstract:

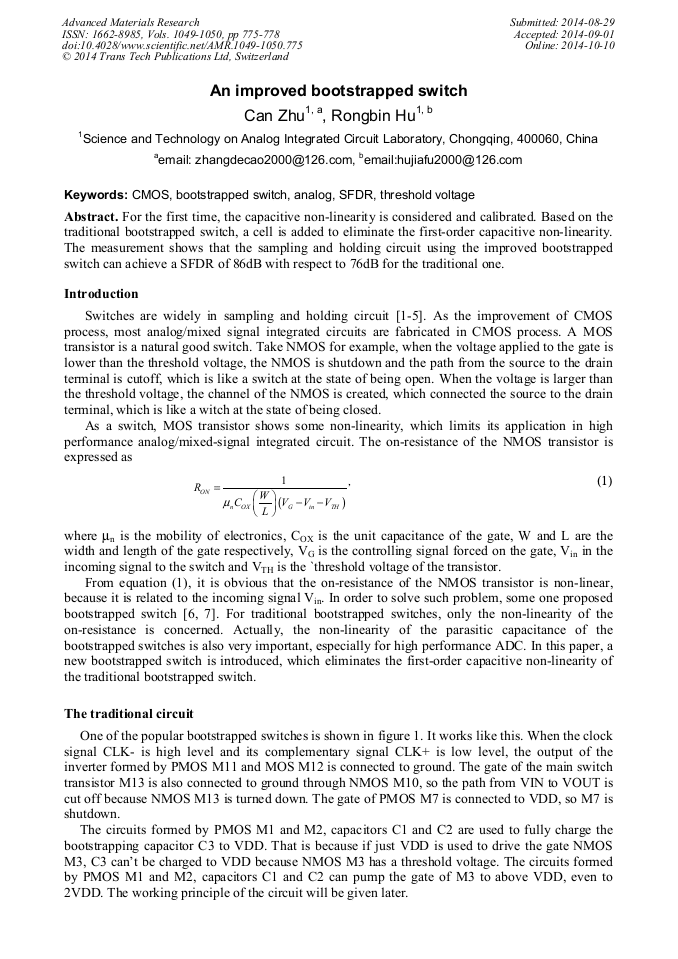

For the first time, the capacitive non-linearity is considered and calibrated. Based on the traditional bootstrapped switch, a cell is added to eliminate the first-order capacitive non-linearity. The measurement shows that the sampling and holding circuit using the improved bootstrapped switch can achieve a SFDR of 86dB with respect to 76dB for the traditional one.
