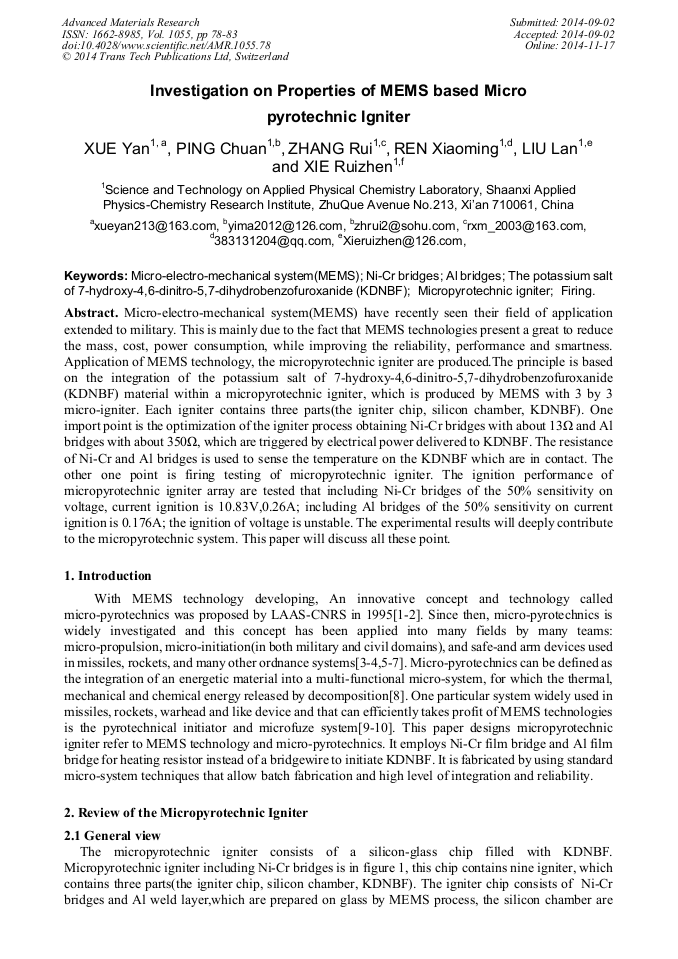

Investigation on Properties of MEMS Based Micropyrotechnic Igniter

Abstract:

Micro-electro-mechanical system (MEMS) have recently seen their field of application extended to military. This is mainly due to the fact that MEMS technologies present a great to reduce the mass, cost, power consumption, while improving the reliability, performance and smartness. Application of MEMS technology, the micropyrotechnic igniter are produced.The principle is based on the integration of the potassium salt of 7-hydroxy-4,6-dinitro-5,7-dihydrobenzofuroxanide (KDNBF) material within a micropyrotechnic igniter, which is produced by MEMS with 3 by 3 micro-igniter. Each igniter contains three parts (the igniter chip, silicon chamber, KDNBF). One import point is the optimization of the igniter process obtaining Ni-Cr bridges with about 13Ω and Al bridges with about 350Ω, which are triggered by electrical power delivered to KDNBF. The resistance of Ni-Cr and Al bridges is used to sense the temperature on the KDNBF which are in contact. The other one point is firing testing of micropyrotechnic igniter. The ignition performance of micropyrotechnic igniter array are tested that including Ni-Cr bridges of the 50% sensitivity on voltage, current ignition is 10.83V,0.26A; including Al bridges of the 50% sensitivity on current ignition is 0.176A; the ignition of voltage is unstable. The experimental results will deeply contribute to the micropyrotechnic system. This paper will discuss all these point.

• Periodical: Advanced Materials Research (Volume 1055)
• Pages: 78-83
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1055.78
• Online since: November 2014
• Authors: Xue Yan, Chuan Ping, Rui Zhang, Ren Xiaoming, Liu Lan, Rui Zhen Xie
• Keywords: Al Bridges, Firing, Micro-Electro-Mechanical System (MEMS), Micropyrotechnic Igniter, Ni-Cr Bridges, Potassium Salt of 7-hydroxy-4,6-dinitro-5,7-dihydrobenzofuroxanide (KDNBF)

References

[1] C. Rossi,D. Estève, 1997. Pyrotechnic Micro Actuator. EUROSENSORS XI, Varsovie (Pologne), pp.21-24.

[2] C. Rossi,D. Estève, C, Mingués. 1999. Pyrotechnic Actuator: a New Generation of Si Integrated Actuator, Sensors and Actuators. A74. pp.211-215.

DOI: 10.1016/s0924-4247(98)00319-7

[3] H.H. DiBiaso B.A. English M.G. Allen. 2004. Solid-phase Conductive Fuels for Chemical Microactuators. Sensors and Actuators. A111. pp.260-266.

DOI: 10.1016/j.sna.2003.10.062

[4] T. Troianello. 2001. Precision Foil Resistors used as Electro-pyrotechnic Initiators. Proceedings of the 51st electronic components and technology conference.

DOI: 10.1109/ectc.2001.928019

[5] Helene Pezous, Carole Rossi, Marjorie Sanchez. 2010. Fabrication, Assembly and Tests of a MEMS-based Safe , Arm and Fire Device. Journal of Physics and Chemistry of Solids 71. pp.75-79.

DOI: 10.1016/j.jpcs.2009.08.018

[6] Helene Pezous, Carole Rossi, Marjorie Sanchez. 2010. Integration of a MEMS based Safe Arm and Fire Device. Sensors and Actuators A159. p.157-167Y.

DOI: 10.1016/j.sna.2010.03.017

[7] Manel Puig-Vidal, Jaime Lopez, eta, 2003. Electronic Circuitry Development in a Micropyrotechnic system for Micropropulsion appllications. Smart Sensors, Actuators, and MEMS, Proceedings of SPIE Vol. 5116, pp.260-269.

DOI: 10.1117/12.501504

[8] C. Rossi, D. Estève. 2005. Micropyotechnics, a New Technology for Making Energetic Microsystems: review and prospective. Sensors and Actuators A120. pp.297-300.

DOI: 10.1016/j.sna.2005.01.025

[9] Pierre Pennarun, Carole Rossi, Daniel Esteve, Veronique Conedera, 2005. Development of MEMS based safe Electro-thermal Pyrotechnie Igniter for a new Generation of Microfuze, Smart Sensors, Actuators, and MEMS Ⅱ, Proceedings of SPIE Vol. 5836, pp.558-566.

DOI: 10.1117/12.608082

[10] Y. Xue C.J. Shi X.M. Ren, eta, Study of MEMS Based Micropyrotechnic Igniter. Mechanical Science and Engineering Ⅳ. 2013. 10.
