The Vibration Model Establishment and Solution of Bending-Torsion-Axial-Swing Coupled the Helical Gear Transmission System Based on Lumped Parameter Approximation Method

Abstract:

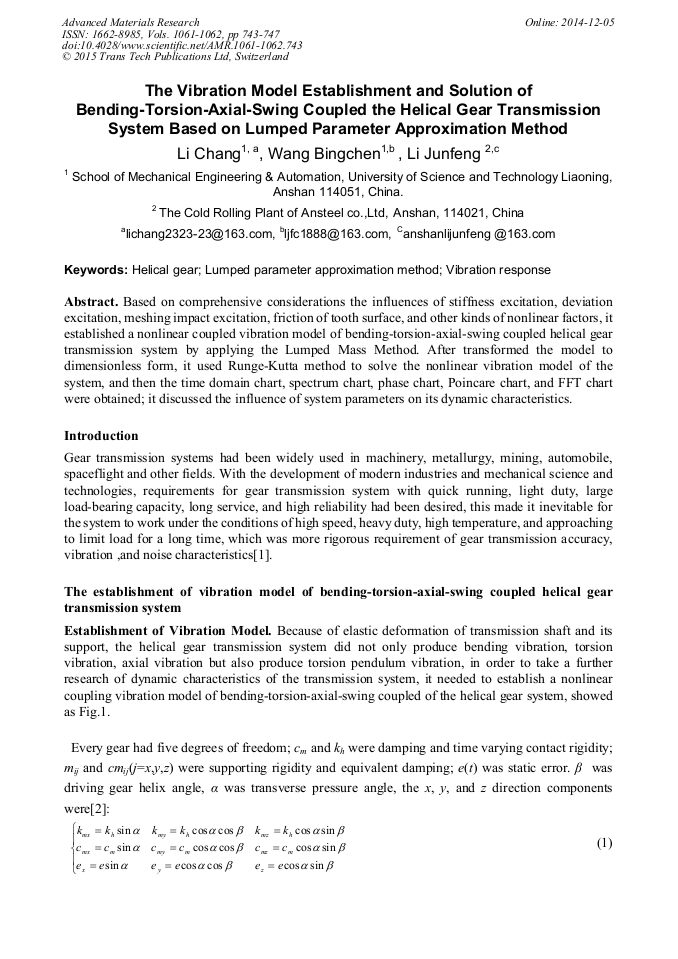

Based on comprehensive considerations the influences of stiffness excitation, deviation excitation, meshing impact excitation, friction of tooth surface, and other kinds of nonlinear factors, it established a nonlinear coupled vibration model of bending-torsion-axial-swing coupled helical gear transmission system by applying the Lumped Mass Method. After transformed the model to dimensionless form, it used Runge-Kutta method to solve the nonlinear vibration model of the system, and then the time domain chart, spectrum chart, phase chart, Poincare chart, and FFT chart were obtained; it discussed the influence of system parameters on its dynamic characteristics.
