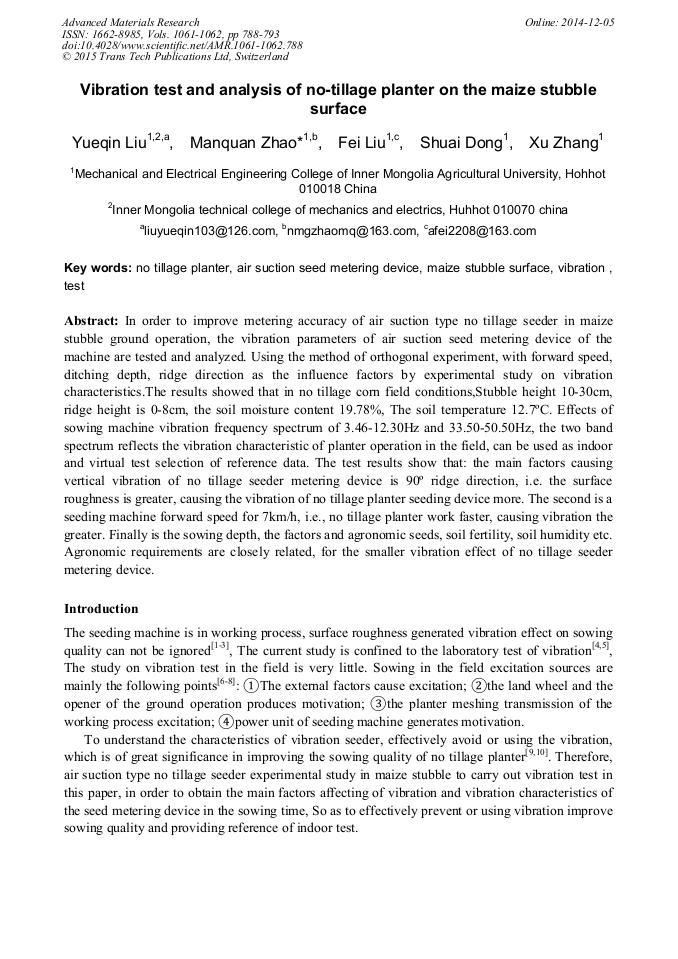

Vibration Test and Analysis of No-Tillage Planter on the Maize Stubble Surface

Abstract:

In order to improve metering accuracy of air suction type no tillage seeder in maize stubble ground operation, the vibration parameters of air suction seed metering device of the machine are tested and analyzed. Using the method of orthogonal experiment, with forward speed, ditching depth, ridge direction as the influence factors by experimental study on vibration characteristics.The results showed that in no tillage corn field conditions,Stubble height 10-30cm, ridge height is 0-8cm, the soil moisture content 19.78%, The soil temperature 12.7oC. Effects of sowing machine vibration frequency spectrum of 3.46-12.30Hz and 33.50-50.50Hz, the two band spectrum reflects the vibration characteristic of planter operation in the field, can be used as indoor and virtual test selection of reference data. The test results show that: the main factors causing vertical vibration of no tillage seeder metering device is 90o ridge direction, i.e. the surface roughness is greater, causing the vibration of no tillage planter seeding device more. The second is a seeding machine forward speed for 7km/h, i.e., no tillage planter work faster, causing vibration the greater. Finally is the sowing depth, the factors and agronomic seeds, soil fertility, soil humidity etc. Agronomic requirements are closely related, for the smaller vibration effect of no tillage seeder metering device.

• Periodical: Advanced Materials Research (Volumes 1061-1062)
• Pages: 788-793
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1061-1062.788
• Online since: December 2014
• Authors: Yue Qin Liu, Man Quan Zhao*, Fei Liu, Shuai Dong, Xu Zhang
• Keywords: Air Suction Seed Metering Device, Maize Stubble Surface, No-Tillage Planter, Test, Vibration

References

[1] Lu Zhixiong, Wu Xiaoping, U.D. Perdok, et al．Analysis of tillage soil surface roughness[J]. Transactions of the Chinese Society for Agricultural Machinery, 2004, 35 (1) : 112-116.

[2] Zhang Xiaodong, Li Chenghua, Tang Qiuyan, et al．Vibration properties of spade punch planter of maize[J]. Journal of Shenyang Agricultural University, 2009, 40(6): 732-735.

[3] Yang Zidong，Geng Duanyang，Peng Lifang， Deduction of input spectrum of tractor-implement combination and vibration simulation base on farm surface roughness［J］. Transactions of the Chinese Society for Agricultural Machinery，2009, 40 ( 4) : 62-66.

[4] Sun Xiaohu. Study on key technology of mechanical vibrating precision metering device[D]. Nanjing: Nanjing Agricultural University, (2012).

[5] Liu gang. Electromagnetic vibratory planter's seeding speed numerical analysis and parameter optimization[D]. Guangxi: Guangxi University, (2013).

[6] Peng Shao-bing, Yang Jian-chang. Current Status of the Research on High-Yielding and High Efficiency in Resource Use and Improving Grain Quality in Rice [J]. Chinese J Rice Sci, 2003, 17(3): 275-280.

[7] Xu Liang, Wang Yanxiao. Finite Element Modal Analysis of Vibration for Mountain Miniature Corn Planter Frame Based on NASTRAN[J]. Agricultural Engineering, 2012, 2(5): 59-62.

[8] Gao Rui. Study on vibration control precision seeder soil working parts[J]. Transactions of the CSAE, 1993, 9(3): 33-36.

[9] Hu Yongwen, Zhao Manquan, Liu Yueqin. Research on Test-bed for Air-suction Seed Metering Device[J]. Journal of Agricultural Mechanization Research, 2011, 33(6): 111-114.

[10] Zhao Manquan, Hu Yongwen, Liu Yueqin. Measurement and analysis on vibration characteristics of pneumatic seed metering device of no-till seeder[J]. Transactions of the Chinese Society of Agricultural Engineering, 2012, 28(Supp. 2): 78-83.

[11] Zheng Zhiguo, Wang Yufeng. Introduction of Parameters in Random Vibration and their Calculation[J]. Electronic Product Reliability and Environmental Testing, 2009, 27(6): 45-48.

[12] GB/T7031-2005 mechanical vibration, Report the measurement data of road surface spectrum[S]. The national standard of the people's Republic of China.

[13] Dai Bin. Characterization and measurement of random vibration[J]. China Measurement & Testing Technology, 2004, (6): 43-44.

[14] GB/T13860-92 Methods of describing the mechanical vibration measurement data of ground vehicles[S]. The national standard of the people's Republic of China.
