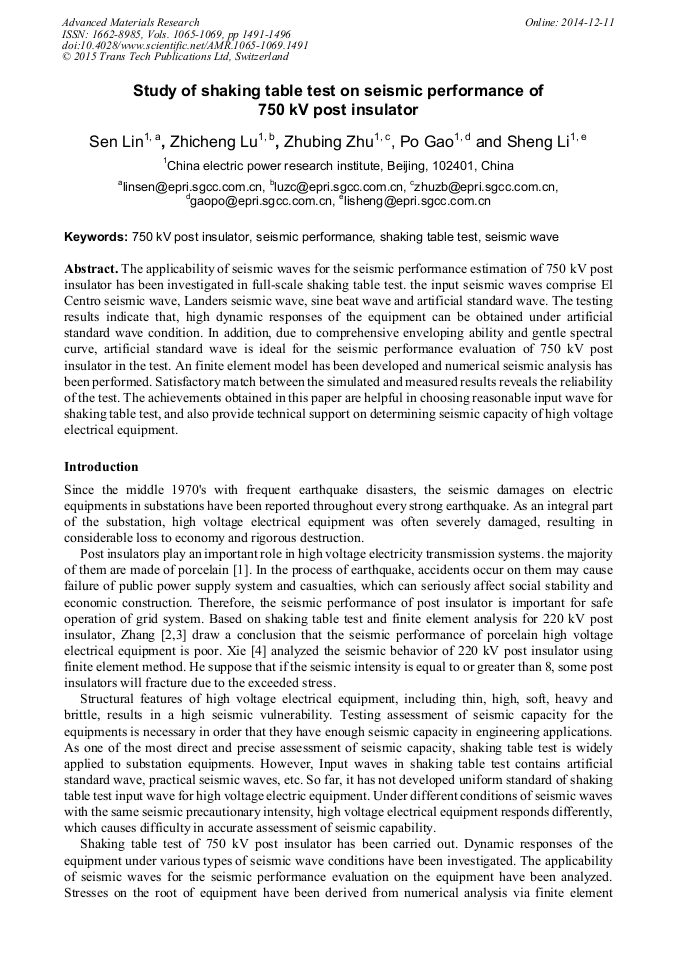

Study of Shaking Table Test on Seismic Performance of 750 kV Post Insulator

Abstract:

The applicability of seismic waves for the seismic performance estimation of 750 kV post insulator has been investigated in full-scale shaking table test. the input seismic waves comprise El Centro seismic wave, Landers seismic wave, sine beat wave and artificial standard wave. The testing results indicate that, high dynamic responses of the equipment can be obtained under artificial standard wave condition. In addition, due to comprehensive enveloping ability and gentle spectral curve, artificial standard wave is ideal for the seismic performance evaluation of 750 kV post insulator in the test. An finite element model has been developed and numerical seismic analysis has been performed. Satisfactory match between the simulated and measured results reveals the reliability of the test. The achievements obtained in this paper are helpful in choosing reasonable input wave for shaking table test, and also provide technical support on determining seismic capacity of high voltage electrical equipment.

• Periodical: Advanced Materials Research (Volumes 1065-1069)
• Pages: 1491-1496
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1065-1069.1491
• Online since: December 2014
• Authors: Sen Lin*, Zhi Cheng Lu, Zhu Bing Zhu, Po Gao, Sheng Li
• Keywords: 750 kV Post Insulator, Seismic Performance, Seismic Wave, Shaking Table Test

References

[1] Liming Wang, Chuang Wang, Guanjun Fu, Fei Shan, Zhicheng Guan. Antiseismic Characteristics of Composite Post Insulators for Smoothing Reactors on UHVDC. High Voltage Engineering, 2011, 37(9): 2081-2088. (In Chinese).

[2] Jun Zhang, Lizhong Qi, Kewen Li, Dabin Chen. Shock Test and Finite Element Analysis of Porcelain High-voltage Electrical Equipment. Electric Power Construction, 2011, 32(7): 6-10. (In Chinese).

[3] Jun Zhang, Dabin Chen, Ziyin Zhang, Xiantie Wang. Vibration Test Study on 220 kV Insulators and Lightning Arrester. Electric Power Technologic Economics, 2009, 21(4): 47-50. (In Chinese).

[4] Tao Xie, Qilin Sun, Kangli Lin, Guanglin Yuan, Rui Zhang, Qianjin Shu. Seismic Behavior of Supported Tubular Bus Structure in 220 kV Substation. Electric Power Construction, 2013, 34(3): 98-103. (In Chinese).

[5] GB 50260-2013 Code for Seismic Design of Electrical Installations. China Planning Press, Beijing, 2013. (In Chinese).

[6] Hongbing You, Yushan Zhang, Fengxin Zhao. Reasonable Determination of Input Waves for Shake-Table Test of Electrical Equipments. Power System Technology, 2012, 36(5): 118-124. (In Chinese).

[7] GB 50011―2010 Code for Seismic Design of Building. China Architecture and Building Press, Beijing, 2010. (In Chinese).

[8] Xianzheng Meng, Zebing Dai, Zhicheng LU, Zhubing Zhu, Po Gao. Shaking Table Test for Seismic Performance of 500 kV Arrester. Electric Power Construction, 2014, 35(1): 35-39. (In Chinese).

DOI: 10.1109/powercon.2010.5666554

[9] IEEE Standard 693 Recommended Practice for Seismic Design of Substations. Institute of Electrical and Electronic Engineers, USA, (2005).
