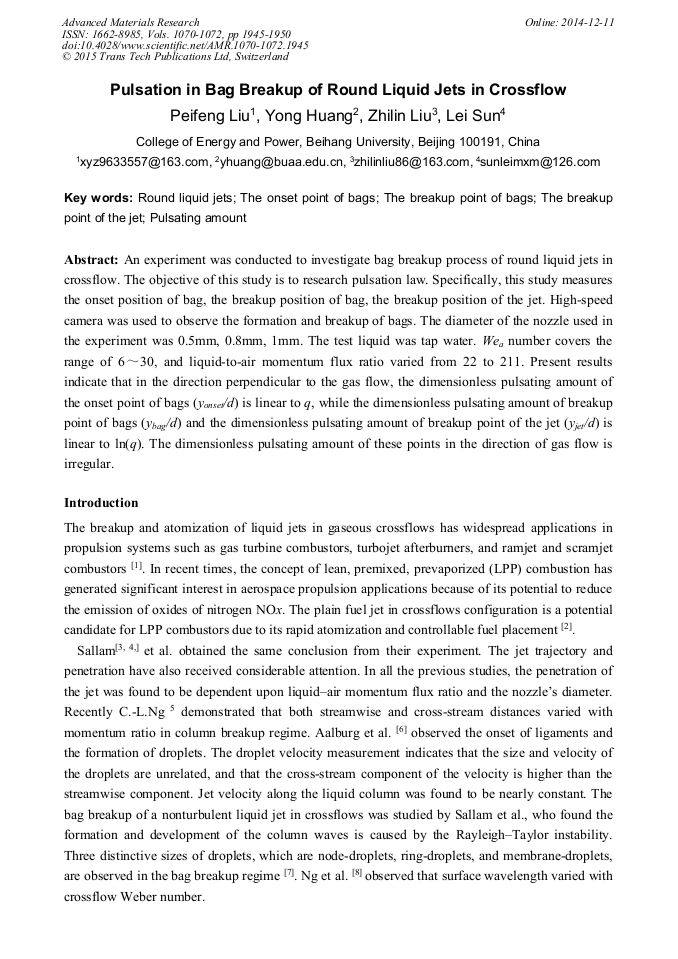

Pulsation in Bag Breakup of Round Liquid Jets in Crossflow

Abstract:

An experiment was conducted to investigate bag breakup process of round liquid jets in crossflow. The objective of this study is to research pulsation law. Specifically, this study measures the onset position of bag, the breakup position of bag, the breakup position of the jet. High-speed camera was used to observe the formation and breakup of bags. The diameter of the nozzle used in the experiment was 0.5mm, 0.8mm, 1mm. The test liquid was tap water. We_a number covers the range of 6~30, and liquid-to-air momentum flux ratio varied from 22 to 211. Present results indicate that in the direction perpendicular to the gas flow, the dimensionless pulsating amount of the onset point of bags (y_onset/d) is linear to q, while the dimensionless pulsating amount of breakup point of bags (y_bag/d) and the dimensionless pulsating amount of breakup point of the jet (y_jet/d) is linear to ln (q). The dimensionless pulsating amount of these points in the direction of gas flow is irregular.

• Periodical: Advanced Materials Research (Volumes 1070-1072)
• Pages: 1945-1950
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1070-1072.1945
• Online since: December 2014
• Authors: Pei Feng Liu, Yong Huang, Zhi Lin Liu, Lei Sun
• Keywords: Breakup Point of Bags, Breakup Point of the Jet, Onset Point of Bags, Pulsating Amount, Round Liquid Jets

References

[1] K. M. Pandey, Member IACSIT, T. Sivasakthivel, Recent advances in scramjet fuel injection a review [J]. International Journal of Chemical Engineering and Applications, 2010, V1(4): 294-301.

DOI: 10.7763/ijcea.2010.v1.52

[2] Julian Becker, and Christoph Hassa, Breakup and Atomization of a Kerosene Jet in Crossflow at Elevated Pressure [J]. Atomization and Sprays, 2002, V11(1-3): 49-67.

DOI: 10.1615/atomizspr.v12.i123.30

[3] Sallam K A, Aalburg C, Faeth G M. Breakup of Round Nonturbulent Liquid Jets in Gaseous Crossflows [C]. Reno, Nevada: 41st AIAA Aerospace Sciences Meeting and Exhibit, (2003).

DOI: 10.2514/6.2003-1326

[4] Sallam K A, Ng C L, Sankarakrishnan R, et al. Breakup of Turbulent and Non-Turbulent Liquid Jets in Gaseous Crossflows [C]. Reno: 44th AIAA Aerospace Sciences Meeting and Exhibit, 2006.

DOI: 10.2514/6.2006-1517

[5] C. -L. Ng, R. Sankarakrishinan, K. A. Sallam, Bag breakup of nonturbulent liquid jets in crossflow [J]. International Journal of Multiphase Flow, 2008, V34(3): 241-259.

DOI: 10.1016/j.ijmultiphaseflow.2007.07.005

[6] Aalburg, C., Faeth, G. M., and Sallam, K. A., Primary Breakup of Round Turbulent Liquid Jets in Uniform Crossflows, 43rd AIAA Aerospace Sciences Meeting and Exhibit, AIAA, Reston, VA, (2005).

DOI: 10.2514/6.2005-734

[7] Sallam, K. A., Ng, C. -L., Sankarakrishnan, R., Aalburg, C., and Lee, K., Breakup of Turbulent and Nonturbulent Liquid Jets in Gaseous Crossflows, 44th AIAA Aerospace Sciences Meeting and Exhibit, AIAA, Reston, VA, (2006).

DOI: 10.2514/6.2006-1517

[8] Ng, C. -L., Sankarakrishinan, R., and Sallam, K. A., Bag Breakup of Nonturbulent Liquid Jets in Crossflow, International Journal of Multiphase Flow, Vol. 34, No. 3, 2008, p.241–259. doi: 10. 1016/j. ijmultiphaseflow. 2007. 07. 005.

DOI: 10.1016/j.ijmultiphaseflow.2007.07.005

[9] Zhu, Y., Huang, Y., and Guo, Z., Experiment on Round Liquid Jet Deformation and Breakup Length, Symposium of Ramjet Engine Technology, Jilin, 2005 (in Chinese).

[10] Wan,Y., Huang, Y, and Zhu,Y., Experiment on the Breakup Process of Free Round Liquid Jet, Journal of Aerospace Power, Vol. 23, No. 2, 2008, p.208–214 (in Chinese).
