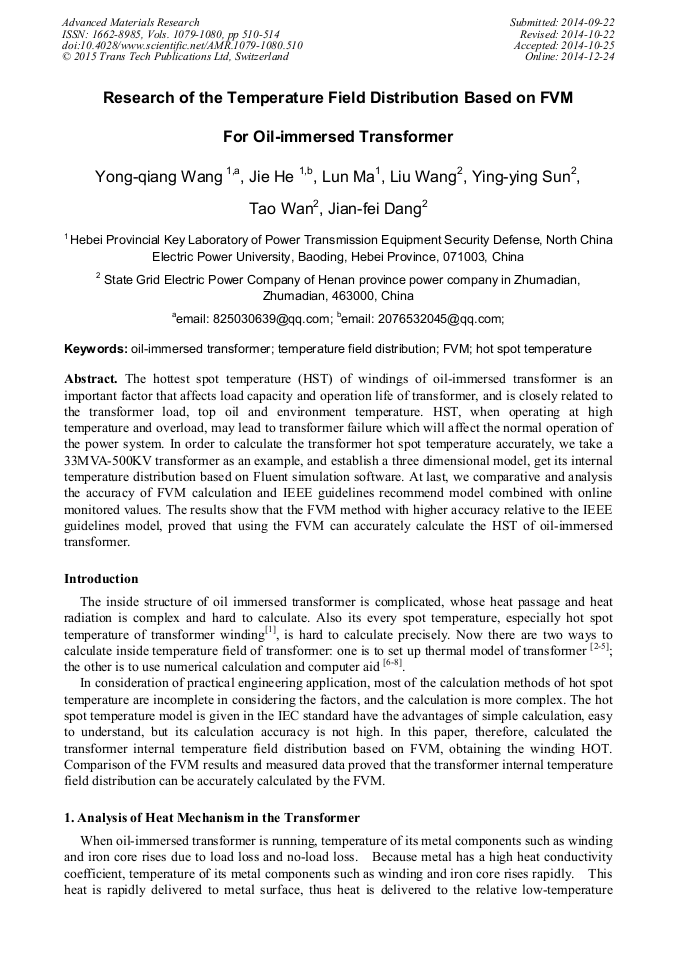

Research of the Temperature Field Distribution Based on FVM for Oil-Immersed Transformer

Abstract:

Thehottest spot temperature (HST) of windings of oil-immersed transformer is animportant factor that affects load capacity and operation life of transformer,and is closely related to the transformer load, top oil and environmenttemperature. HST, when operating at high temperature and overload, may lead totransformer failure which will affect the normal operation of the power system.In order to calculate the transformer hot spot temperature accurately, we takea 33MVA-500KV transformer as an example, and establish a three dimensionalmodel, get its internal temperature distribution based on Fluent simulationsoftware. At last, we comparative and analysis the accuracy of FVM calculation andIEEE guidelines recommend model combined with online monitored values. Theresults show that the FVM method with higher accuracy relative to the IEEEguidelines model, proved that using the FVM can accurately calculate the HST ofoil-immersed transformer.

• Periodical: Advanced Materials Research (Volumes 1079-1080)
• Pages: 510-514
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1079-1080.510
• Online since: December 2014
• Authors: Yong Qiang Wang, Jie He*, Lun Ma, Liu Wang, Ying Ying Sun, Tao Wan, Jian Fei Dang
• Keywords: FVM, Hot Spot Temperature, Oil-Immersed Transformer, Temperature Field Distribution

References

[1] national standard GB 1094. 1-1996. The power transformer part 1 general [S]. Beijing: China standard press, (1996).

[2] V. Galdi, V. Pierro, I. Pinto. Evaluation of stochastic-resonance-based detectors of weak harmonic signals in additive white Gaussian noise[J]. Physical review E, 1998, 57(6): 6470-6479.

DOI: 10.1103/physreve.57.6470

[3] V. Galdi, L. Ippolito, A. Piccolo, A. Vaccaro. Neural diagnostic system for transformer thermal overload protection[C]. IEE Proceedings Electric Power Applications, 2000. 415-421.

DOI: 10.1049/ip-epa:20000519

[4] G. Swift, T. S. Molinski, W. Lehn. A fundamental approach to transformer thermal modeling. I. Theory and equivalent circuit[J]. IEEE Transactions on Power Delivery, 2001, 16(2): 171一175.

DOI: 10.1109/61.915478

[5] B. Lesieutre, W. Hagman, J. Kirtley. An improved transformer top oil temperature model use in an on-line monitoring and diagnostic system[J] . IEEE Transactions on Power Delivery, 1997, 12(1): 249-256.

DOI: 10.1109/61.568247

[6] CHEN Wei-gen, SU Xiao-ping, SUN Cai-xin, PAN Chong. , et al. Temperature distribution calculation based on FVM for oil-immersed power transformer windings[J]. Electric Power Automation Equipment, 2011, 31(6): 23-27.

[7] LIU Yong-zhi, LI Yan, JING Yong-teng. Calculation and analysis of temperature field of power transformer based on software fluent[J]. High Voltage Apparatus, 2012, 48(10): 9-11.
