Digital Controlled High Power Mid-Frequency Pulsed Power Supply

Abstract:

In this article a novel scheme of high power mid-frequency pulse power supply is proposed. The supply is made up of two major stages. First stage is dual interleaved buck chopper stage in order to make the DC bus and output pulse voltage controllable. Second stage is a inverter converting the DC voltage into a series of square AC voltage pulse. IGBT module(300A-1200V) is used as the main switch device for the proposed supply is a high power application. As we know large capacity power IGBT module can hardly work as high as 40Khz[1], so to solve this problem, interleaved control scheme is incorporated. Basic ideas are to share the total switching losses. To combine several converters working under certain sequence is the key point. Final output pulse frequency is 20-40Khz,voltage level is 0-800V, and pulse width is 0-90% changeable. The whole system is concise effective. Experimental results verified the feasibility of abovementioned power supply.

You might also be interested in these eBooks

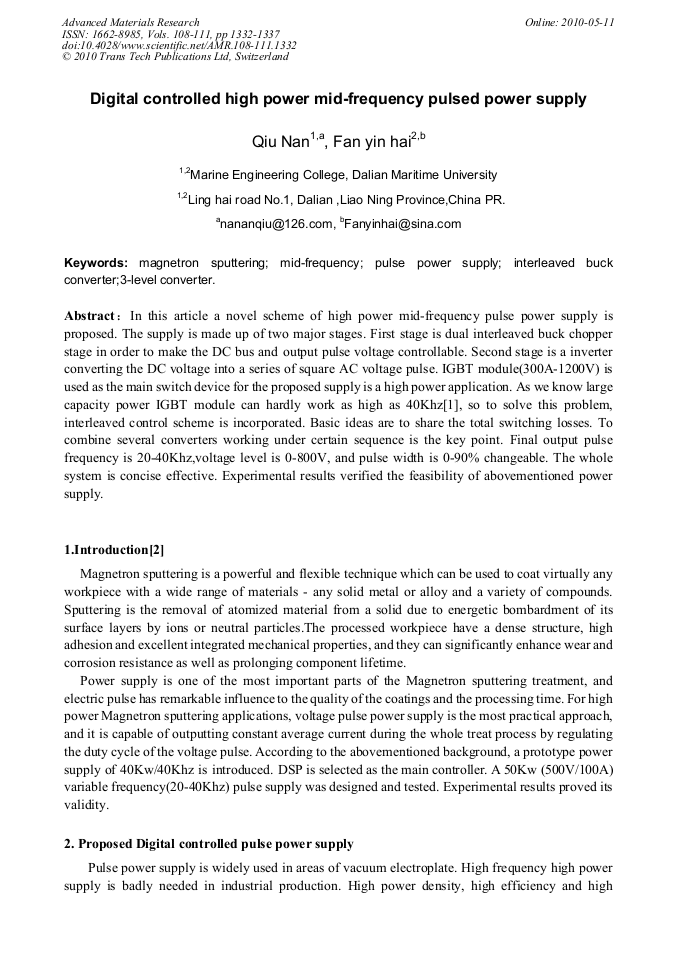

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 108-111)

Pages:

1332-1337

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.108-111.1332

Citation:

Cite this paper

Online since:

May 2010

Authors:

Qiu Nan, Fan Yin Hai

Keywords:

3-Level Converter, Interleaved Buck Converter, Magnetron Sputtering, Mid-Frequency, Pulse Power Supply

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Eric R. Motto, John F Donlon. Optimizing 1200V IGBT Modules for High Frequency Applications . Applied Power Electronics Conference, APEC 2007 - Twenty Second Annual IEEE.

DOI: 10.1109/apex.2007.357675

Google Scholar

[2] Yang Wei, Yang Shiyan, Zhao Yufeng. High Power Current Pulse Power Supply for Micro-arc Oxidation; IEEE International Symposium on Industrial Electronics (ISlE 2009).

DOI: 10.1109/isie.2009.5219764

Google Scholar

[3] GuiChao Hua. Fred C. Lee. Soft- Switching Techniques in PWM converters[J]. IEEE Trans. on Industrial Electronics，，（）） 1995 42 6 56- 61.

DOI: 10.1109/iecon.1993.339005

Google Scholar

[4] Francisco Canales, Peter M. Barbosa, Fred C. Lee, A Zero Voltage and Zero Current Switching Three Level DCDC Converter, APEC, (2000).

DOI: 10.1109/apec.2000.826121

Google Scholar

[5] Z.L. Lou, Z. S. Wang; An improved Three-level Soft-switching DC/DC Converter; IPEMC2006.

Google Scholar

[6] TMS320F2812 Digital Signal Processors Data Manual. SPRS174 Texas Instruments.

Google Scholar
