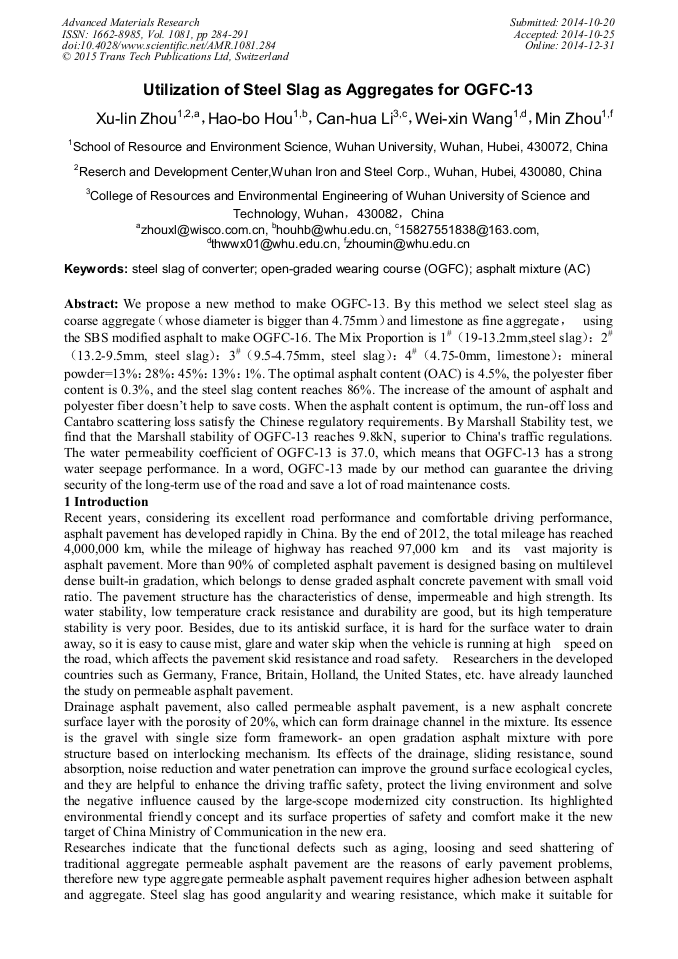

Utilization of Steel Slag as Aggregates for OGFC-13

Abstract:

We propose a new method to make OGFC-13. By this method we select steel slag as coarse aggregate (whose diameter is bigger than 4.75mm) and limestone as fine aggregate, using the SBS modified asphalt to make OGFC-16. The Mix Proportion is 1^#(19-13.2mm,steel slag):2^#(13.2-9.5mm, steel slag):3^#(9.5-4.75mm, steel slag):4^#(4.75-0mm, limestone):mineral powder=13%:28%:45%:13%:1%. The optimal asphalt content (OAC) is 4.5%, the polyester fiber content is 0.3%, and the steel slag content reaches 86%. The increase of the amount of asphalt and polyester fiber doesn’t help to save costs. When the asphalt content is optimum, the run-off loss and Cantabro scattering loss satisfy the Chinese regulatory requirements. By Marshall Stability test, we find that the Marshall stability of OGFC-13 reaches 9.8kN, superior to China's traffic regulations. The water permeability coefficient of OGFC-13 is 37.0, which means that OGFC-13 has a strong water seepage performance. In a word, OGFC-13 made by our method can guarantee the driving security of the long-term use of the road and save a lot of road maintenance costs.

You might also be interested in these eBooks

Materials Science and Advanced Technologies in Manufacturing II

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1081)

Pages:

284-291

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1081.284

Citation:

Cite this paper

Online since:

December 2014

Authors:

Xu Lin Zhou, Hao Bo Hou, Can Hua Li, Wei Xin Wang, Min Zhou

Keywords:

Asphalt Mixture (AC), Open-Graded Wearing Course (OGFC), Steel Slag of Converter

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] JTG E20-2011, Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering[S]. (2011).

Google Scholar

[2] JTGF40-2004, Technical specifications for construction of highway asphalt pavements [S]. (2004).

Google Scholar

[3] JTG E42-2005, Test Methods of Aggregate for Highway Engineering[S]. (2005).

Google Scholar

[4] ZHANG Xi, WU Shao-peng, CAO Ting-wei, et a1. Analysis on The Material Composing and Characteristics of Porous Asphalt Pavements[J]. The Science and Technology of Overseas Construction Material，2007，28（2）：32-33. (in Chinese).

Google Scholar

[5] HUANG Xiao-ming, WU Shao-peng, ZHAO Yong-li, et a1. Asphalt and Asphalt Mixture [M]. Nanjing：East-south University of China Press, 2002: 149. (in Chinese).

Google Scholar

[6] Japanese Transportation Association. Porous Asphalt Pavement Construction Manual's Guide[S], (1996).

Google Scholar
