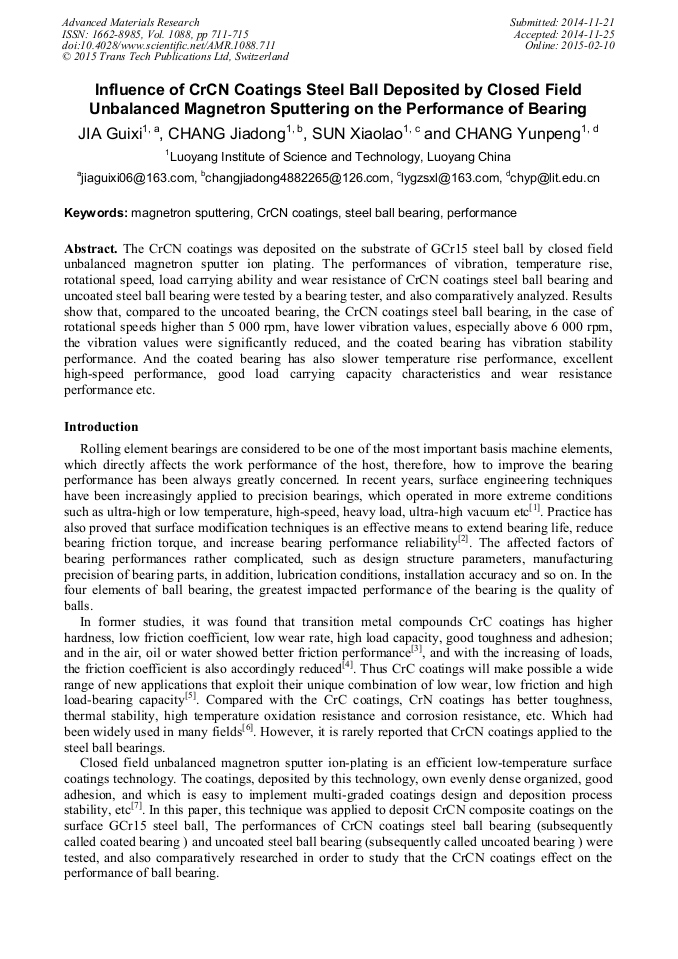

Influence of CrCN Coatings Steel Ball Deposited by Closed Field Unbalanced Magnetron Sputtering on the Performance of Bearing

Abstract:

The CrCN coatings was deposited on the substrate of GCr15 steel ball by closed field unbalanced magnetron sputter ion plating. The performances of vibration, temperature rise, rotational speed, load carrying ability and wear resistance of CrCN coatings steel ball bearing and uncoated steel ball bearing were tested by a bearing tester, and also comparatively analyzed. Results show that, compared to the uncoated bearing, the CrCN coatings steel ball bearing, in the case of rotational speeds higher than 5 000 rpm, have lower vibration values, especially above 6 000 rpm, the vibration values were significantly reduced, and the coated bearing has vibration stability performance. And the coated bearing has also slower temperature rise performance, excellent high-speed performance, good load carrying capacity characteristics and wear resistance performance etc.

• Periodical: Advanced Materials Research (Volume 1088)
• Pages: 711-715
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1088.711
• Online since: February 2015
• Authors: Gui Xi Jia*, Jia Dong Chang, Xiao Lao Sun, Yun Peng Chang
• Keywords: CrCN Coatings, Magnetron Sputtering, Performance, Steel Ball Bearing

References

[1] C. Donnet, A. Eedemir. Solid lubricant coatings recent developments and future trends[J]. Tribology Letters, 2004, 17: 389-397.

DOI: 10.1023/b:tril.0000044487.32514.1d

[2] C. Brecher, G. Spachtholz, K. Bobziz, et a. l. Supere-lastic (Cr, Al)N coatings for high end spindle bearings[J]. Surface & Coatings Technology, 2005, 200: 1738 – 1744.

DOI: 10.1016/j.surfcoat.2005.08.043

[3] J. StallardT, D. Mercs, M. Janatt, et a. l. A study of the tribological behaviour of three carbon-based coatings, tested in air water and oil environments at high loads[J]. Surface & Coatings Technology, 2004, 177-178: 545-551.

DOI: 10.1016/s0257-8972(03)00925-3

[4] D. Camind, A. H. S Jones, D. Jones Mercs, et a. l. High performance sputtered carbon coatings for wear resistant applications[J]. Vacuum, 1999, 52: 125-131.

DOI: 10.1016/s0042-207x(98)00205-x

[5] S. Yang, D. Camino, A. H. S Jones, et a. l. Deposition and tribological behaviour of sputtered carbon hard coatings[J]. Surface & Coatings Technology, 2000, 124 : 110-116.

DOI: 10.1016/s0257-8972(99)00634-9

[6] G. C. Jeong, I. H. Kim, S. I. Kwun. Influence of process parameters on the adhesive strength of CrN coatings[J]. Eco-Materials Processing and Design VII, 2007, 544 /545(1): 367-370.

DOI: 10.4028/www.scientific.net/msf.544-545.367

[7] Z. H. Han, J. W. Tian, Q. X. Lai, et a. l. Effect of N2 partial pressure on the microstructure and mechanical properties of magnetron sputtered CrN films[J]. Surface & Coatings Technology, 2003, 162(2 /3): 189-193.

DOI: 10.1016/s0257-8972(02)00667-9

[8] Yan Heng Zhi, Wang Hong Zhi, Zhong Jue. Simulation and Analysis of Elastohydrodynamic Lubrication Line Contact Problem under Sine Wave Vibration[J]. Tribology, 2002, 22(1): 62-65.

[9] G. Luedberg & A. Palmgren: Dynamic Capacity of Rolling Bearings, IVA Handlingar 196 (1947).
