Effect of Turbulence Inhibitor on the Molten Steel Flow in Tundish

Abstract:

The flow pattern and temperature distribution of molten steel in tundish were calculated by CFD and heat transfer method. Comparing the tundish flow field and the temperature field of empty packet and turbulence inhibitor installed, the role of turbulence inhibitor in tundish was analyzed, and the advantages and disadvantages of turbulence inhibiter were illuminated. The results show that: the turbulence inhibitor can eliminate the short circuit flow at tundish bottom, stabilize flow, and homogenize molten steel composition; but the turbulence inhibitor can consume energy of molten steel, and reduce the temperature of molten steel in the tundish. Without the turbulence inhibitor, the surface minimum temperature is far from the narrow corner, it is not easy to knot cold steel; installing turbulence inhibitor can raise the molten steel temperature near inlet, steel flow will scour inlet refractory intensively, service life of which shortens.

You might also be interested in these eBooks

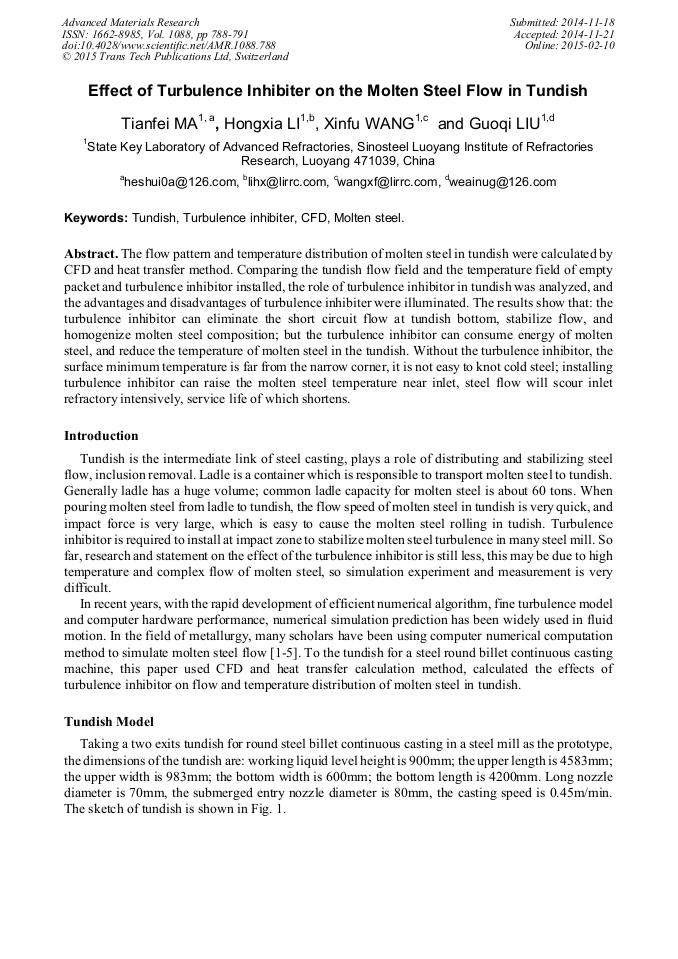

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1088)

Pages:

788-791

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1088.788

Citation:

Cite this paper

Online since:

February 2015

Authors:

Tian Fei Ma*, Hong Xia Li, Xin Fu Wang, Guo Qi Liu

Keywords:

CFD, Molten Steel, Tundish, Turbulence Inhibiter

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] R.D. Morales, S. Lopez-Ramirez, J. Palafox-Ramos, et al.: Numerical and modeling analysis of fluid flow and heat transfer of liquid steel in a tundish with different flow control devices, ISIJ Int. 39(5) (1999) 455-461.

DOI: 10.2355/isijinternational.39.455

Google Scholar

[2] Y. Zheng, G.D. Zhang, Y. Chen, et al.: Physical simulation on gas curtain of single flow tundish, Refractories & Line. 38(5) (2013) 11-17.

Google Scholar

[3] Y.H. Tian, Y.P. Bao, Y.H. Li, et al.: Study on optimization of the baffle for two-strand slab caster's 80 t tundish, Iron Steel Vanadium Titanium. 34(2) (2013) 67-72.

Google Scholar

[4] A. Ramos-Banderas, R.D. Morales, L. Garcia-Demedices, et al.: Mathematical simulation and modelling of steel flow with gas bubbling in trough type tundishes, ISIJ Int. 43(5) (2003) 653-658.

DOI: 10.2355/isijinternational.43.653

Google Scholar

[5] L. Chen, Y.L. Dai, S.J. Zhu: Study on TangGang FTSC tundish with gas curtain, Iron Steel Vanadium Titanium. 34(6) (2013) 65-71.

Google Scholar

[6] Z.N. Wu: Basic Principles of Computational Fluid Dynamics, third ed., Science Press, Beijing, (2001).

Google Scholar

[7] S.M. Yang: Heat Transfer, second ed., Higher Education Press, New Beijing, (2010).

Google Scholar
