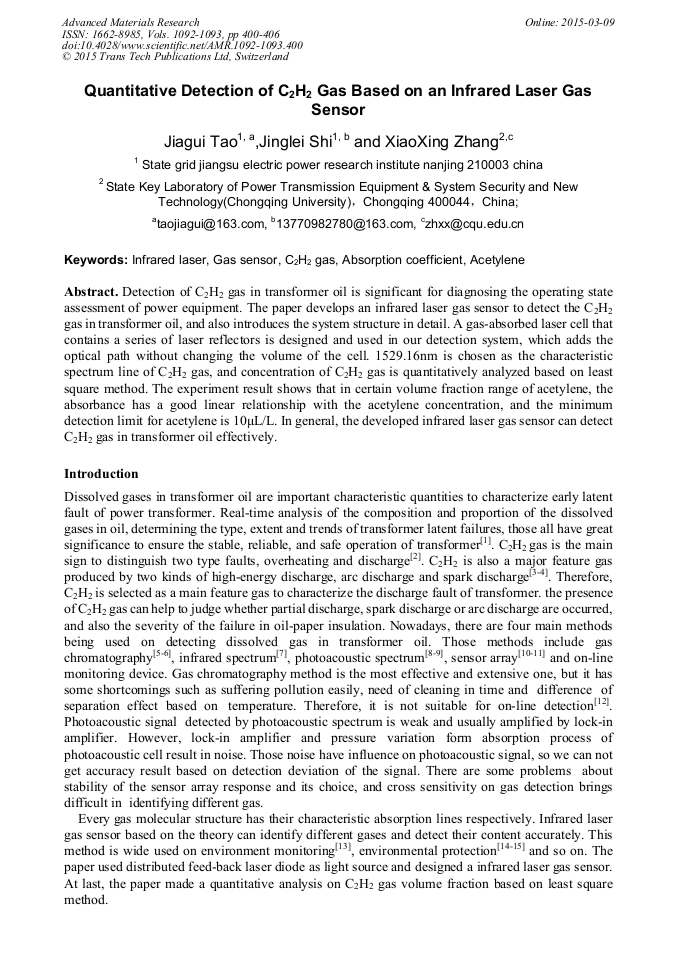

Quantitative Detection of C₂H₂ Gas Based on an Infrared Laser Gas Sensor

Abstract:

Detection of C₂H₂ gas in transformer oil is significant for diagnosing the operating state assessment of power equipment. The paper develops an infrared laser gas sensor to detect the C₂H₂ gas in transformer oil, and also introduces the system structure in detail. A gas-absorbed laser cell that contains a series of laser reflectors is designed and used in our detection system, which adds the optical path without changing the volume of the cell. 1529.16nm is chosen as the characteristic spectrum line of C₂H₂ gas, and concentration of C₂H₂ gas is quantitatively analyzed based on least square method. The experiment result shows that in certain volume fraction range of acetylene, the absorbance has a good linear relationship with the acetylene concentration, and the minimum detection limit for acetylene is 10μL/L. In general, the developed infrared laser gas sensor can detect C₂H₂ gas in transformer oil effectively.

• Periodical: Advanced Materials Research (Volumes 1092-1093)
• Pages: 400-406
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1092-1093.400
• Online since: March 2015
• Authors: Jia Gui Tao, Jing Lei Shi, Xiao Xing Zhang
• Keywords: Absorption Coefficient, Acetylene, C₂H₂ Gas, Gas Sensor, Infrared Laser

References

[1] Xiaoxing Zhang, Jinbin Zhang and Ju Tang: Proceedings of the CSEE, Vol. 31, No. 4 (2011), pp.119-124. In Chinese.

[2] Yuxin Yun, Xiaoxiao Zhao and Weigen Chen: High Voltage Engineering, Vol. 35, No. 9 (2009), pp.2156-2162. In Chinese.

[3] Weigen Chen, Hengyi Zhou and Huixian Huang: Chinese Journal of Scientific Instrument, Vol. 31, No. 3 (2010), pp.665-670. In Chinese.

[4] Ting Huang, Zhangqi Wang and Tiankui Wei: High Voltage Apparatus, Vol. 41, No. 1 (2005), p.21. In Chinese.

[5] Ningxian Li, Jinmou Zhang and Jia Li: Transformer, Vol. 40, No. 8 (2003), pp.20-23. In Chinese.

[6] Liping Hang, Tieze Cao and Xianyong Liu: Transformer, Vol. 41, No. 8 (2004), pp.36-39. In Chinese.

[7] Honglei Li, Fangjie Zhou and Kexiong Tan: Automation of Electric Power Systems, Vol. 29, No. 18 (2004), pp.62-65. In Chinese.

[8] Chramm D U, Sthel M S and Silva M G: Infrared Physics & Technology, Vol. 44, No. 4 (2003), pp.263-269.

[9] Ju Tang, Min Fan and Yingjun Qiu: High Voltage Engineering, Vol. 38, No. 11 (2012), pp.2919-2926. In Chinese.

[10] Jianhua Yang, Hong Hou and Lei Wang: Journal of Transducer Technology, Vol. 22, No. 8 (2003), pp.21-23. In Chinese.

[11] Lijun Zhou, Guangning Wu and Ping Tang: Automation of Electric Power Systems, Vol. 30, No. 10 (2006), pp.75-79. In Chinese.

[12] Yaogai Hu, Xiaoxing Zhang and Zhen Wang: High Voltage Engineering, Vol. 37, No. 5 (2011), pp.1166-1171. In Chinese.

[13] Ying He, Yujun Zhang and Ruifeng Kan: Spectroscopy and Spectral Analysis, Vol. 29, No. 1 (2009), pp.10-13. In Chinese.

[14] Xiaoming Gao, Wei Huang and Ziyao Li: Acta Optica Sinica, Vol. 23, No. 5 (2003), pp.10-13. In Chinese.

[15] Dongfang Wang, Qingnong Wei and Shisheng Li: Journal of Atmospheric and Environmental Optics, Vol. 3, No. 2 (2008), pp.139-141. In Chinese.
