Preparation of WPU Wet-Rubbing Fastness Improver

Shu Ling Cui

doi:10.4028/www.scientific.net/AMR.1094.109

Paper Titles

Effect of Grafting Conditions on NR-s-g-HFMA Copolymer and its Thermal Stability
p.91

Polypropylene/Wood Flour Composites Prepared by Solid State Shear Milling
p.96

Preparation and Crystallization of Modifed Talc/Poly(L-Lactic Acid) Composites
p.100

Preparation and Properties of Wood Flour/HDPE Microcellular Foamed Composites
p.105

Preparation of WPU Wet-Rubbing Fastness Improver
p.109

Progress on Preparation and Application of Calcium Carbonate Whisker
p.113

The Tween-60-Assisted Preparation of Pd/C Catalyst and its Application in Suzuki Coupling Reactions
p.118

Application of Atomic Force Microscopy Characterization Technology in MgAl-CO₃^2--LDH Exfoliation Behavior
p.122

The Effect of Different Colloidal Silica Binders on Strengths of Corundum-Mullite Castables
p.127

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 1094Preparation of WPU Wet-Rubbing Fastness Improver

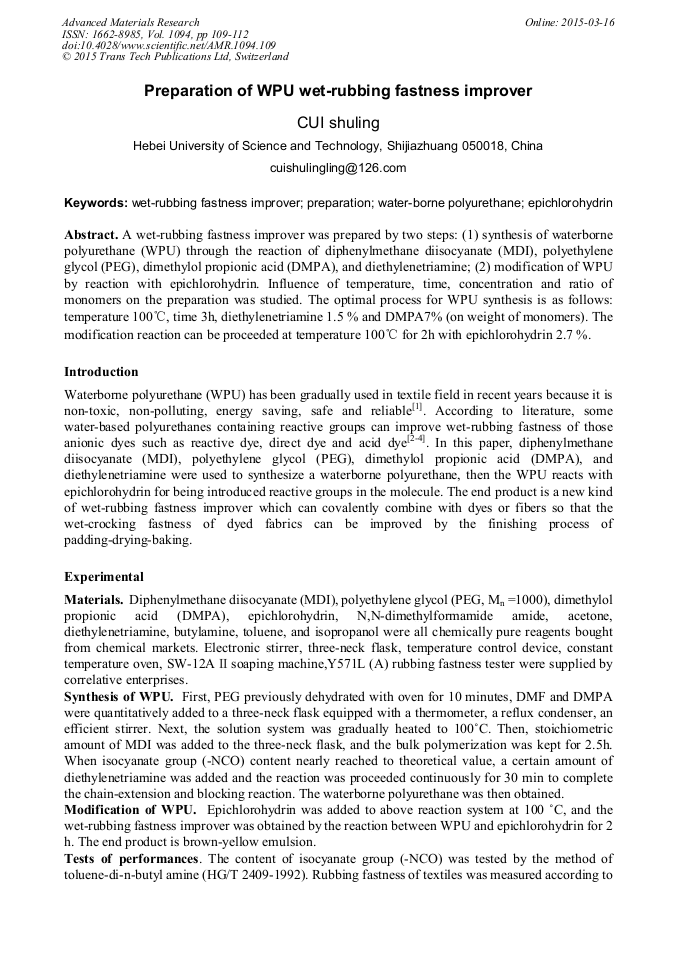

Preparation of WPU Wet-Rubbing Fastness Improver

Abstract:

A wet-rubbing fastness improver was prepared by two steps: (1) synthesis of waterborne polyurethane (WPU) through the reaction of diphenylmethane diisocyanate (MDI), polyethylene glycol (PEG), dimethylol propionic acid (DMPA), and diethylenetriamine; (2) modification of WPU by reaction with epichlorohydrin. Influence of temperature, time, concentration and ratio of monomers on the preparation was studied. The optimal process for WPU synthesis is as follows: temperature 100°C, time 3h, diethylenetriamine 1.5 % and DMPA7% (on weight of monomers). The modification reaction can be proceeded at temperature 100°C for 2h with epichlorohydrin 2.7 %.
