High Current Pulsed Electron Beam Effect on Micro-Arc Oxidation Film of Ti Alloy

Hui Zhao; Chun Yan Du; Jin Hua Yang; Xiao Hui Wang

doi:10.4028/www.scientific.net/AMR.1094.320

Paper Titles

Microstructural Evolution of Cr-Ta Powder in the Process of Mechanical Alloying
p.300

Jointing of Zirconia Ceramic and Titanium Alloy
p.305

Effect of V, Ti, and Ce on Structure and Performance of NM400
p.311

Equivalent Circuit for EIS Study on Rusted Marine Cast Iron Artifacts
p.316

High Current Pulsed Electron Beam Effect on Micro-Arc Oxidation Film of Ti Alloy
p.320

Effect of Al₂O₃ and CaF₂ on Melting Temperature of High Calcium Ladle Desulfurization Slag
p.325

Temperature Field Simulation of Electron Beam Cladding W Coating on Cu Substrate
p.331

A New High Precise Powder Feeder for Fabricating Functionally Gradient Metal Component
p.335

Experimental Study on Ultrasonic Shot Peening Forming and Surface Properties of AALY12
p.339

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 1094High Current Pulsed Electron Beam Effect on...

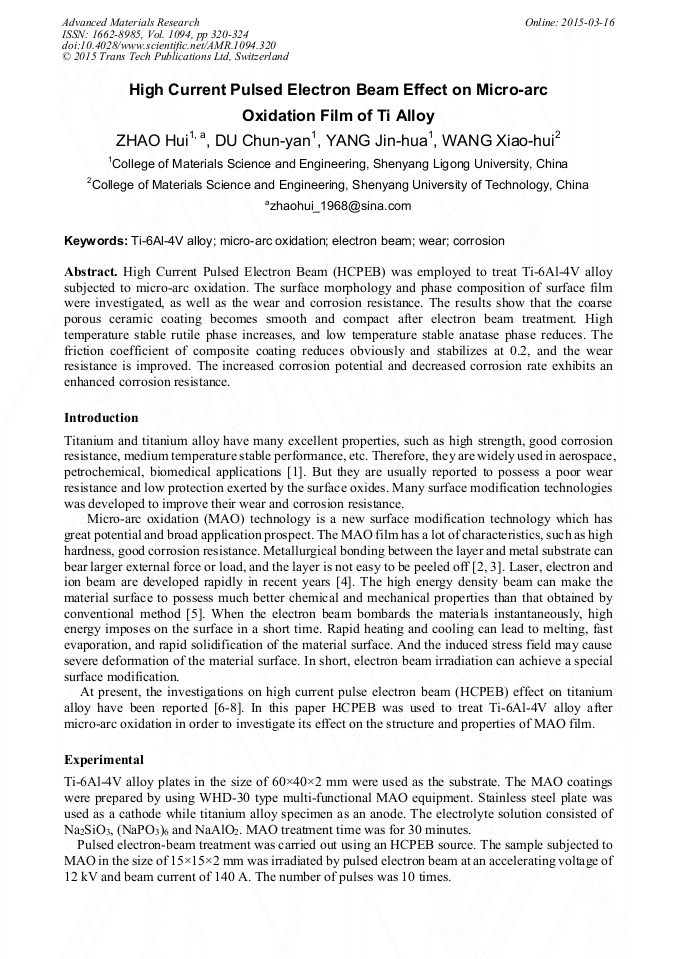

High Current Pulsed Electron Beam Effect on Micro-Arc Oxidation Film of Ti Alloy

Abstract:

High Current Pulsed Electron Beam (HCPEB) was employed to treat Ti-6Al-4V alloy subjected to micro-arc oxidation. The surface morphology and phase composition of surface film were investigated, as well as the wear and corrosion resistance. The results show that the coarse porous ceramic coating becomes smooth and compact after electron beam treatment. High temperature stable rutile phase increases, and low temperature stable anatase phase reduces. The friction coefficient of composite coating reduces obviously and stabilizes at 0.2, and the wear resistance is improved. The increased corrosion potential and decreased corrosion rate exhibits an enhanced corrosion resistance.
