Study on Preparation of Carbonaceous Pelletizing in Industrial Silicon Production

Ni Yang; Xiao Hua Yu; Gang Xie; Chong Jun Bao; Xiao Cai He

doi:10.4028/www.scientific.net/AMR.1094.82

Paper Titles

Preparation of Sulfur-Free Exfoliated Graphite in the Graphite-HClO₄-CH₃COOH Systerms
p.61

Preparation of Chitosan Nanospheres by Miniemulsion Crosslinking Method
p.68

Kelvin Probe Force Microscopy Study of the Photogeneration of Surface Charges in Polymer Photovoltaic Film
p.72

Gold Catalysts on TiO₂-Modified Silica Gel for the Selective Cyclopentane Oxidation to Cyclopentanone
p.76

Study on Preparation of Carbonaceous Pelletizing in Industrial Silicon Production
p.82

Preparation and Visible-Light Catalytic Activities of Fe-TiO₂ Loaded on Activated Carbon Fiber Felts
p.86

Effect of Grafting Conditions on NR-s-g-HFMA Copolymer and its Thermal Stability
p.91

Polypropylene/Wood Flour Composites Prepared by Solid State Shear Milling
p.96

Preparation and Crystallization of Modifed Talc/Poly(L-Lactic Acid) Composites
p.100

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 1094Study on Preparation of Carbonaceous Pelletizing...

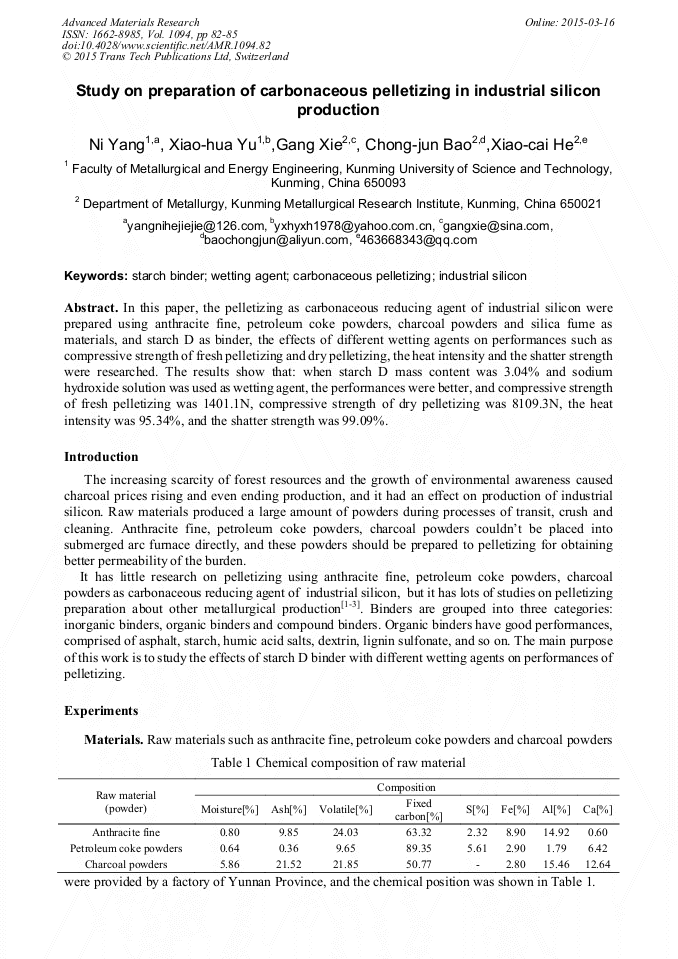

Study on Preparation of Carbonaceous Pelletizing in Industrial Silicon Production

Abstract:

In this paper, the pelletizing as carbonaceous reducing agent of industrial silicon were prepared using anthracite fine, petroleum coke powders, charcoal powders and silica fume as materials, and starch D as binder, the effects of different wetting agents on performances such as compressive strength of fresh pelletizing and dry pelletizing, the heat intensity and the shatter strength were researched. The results show that: when starch D mass content was 3.04% and sodium hydroxide solution was used as wetting agent, the performances were better, and compressive strength of fresh pelletizing was 1401.1N, compressive strength of dry pelletizing was 8109.3N, the heat intensity was 95.34%, and the shatter strength was 99.09%.
