Fast Fourier Transform Analysis of Images of Scanning Electron Microscope of Porous Anodic Alumina

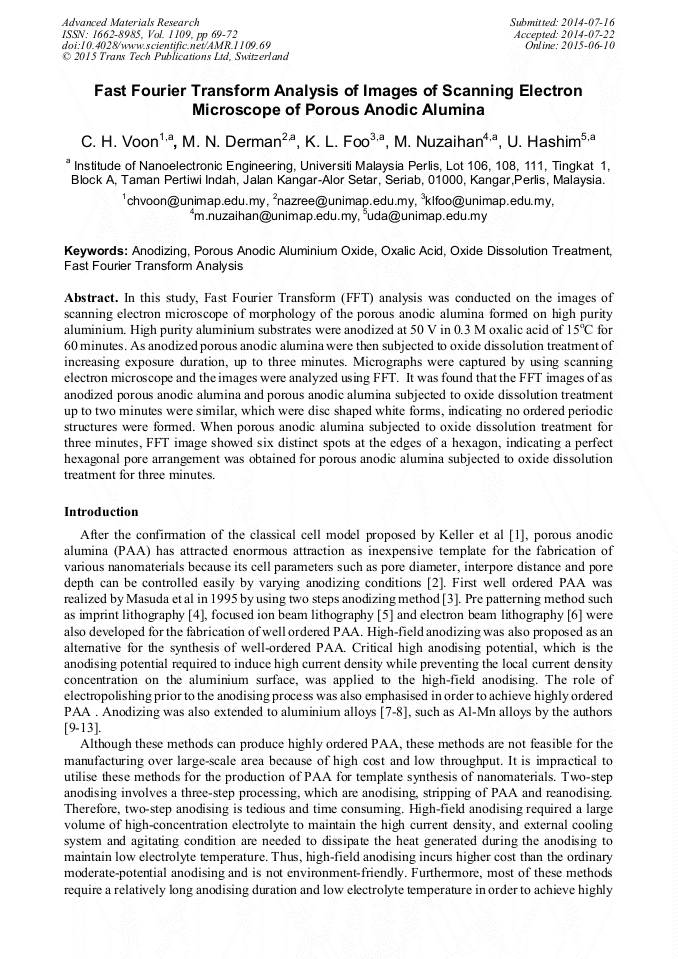

Article Preview

Abstract:

In this study, Fast Fourier Transform (FFT) analysis was conducted on the images of scanning electron microscope of morphology of the porous anodic alumina formed on high purity aluminium. High purity aluminium substrates were anodized at 50 V in 0.3 M oxalic acid of 15°C for 60 minutes. As anodized porous anodic alumina were then subjected to oxide dissolution treatment of increasing exposure duration, up to three minutes. Micrographs were captured by using scanning electron microscope and the images were analyzed using FFT. It was found that the FFT images of as anodized porous anodic alumina and porous anodic alumina subjected to oxide dissolution treatment up to two minutes were similar, which were disc shaped white forms, indicating no ordered periodic structures were formed. When porous anodic alumina subjected to oxide dissolution treatment for three minutes, FFT image showed six distinct spots at the edges of a hexagon, indicating a perfect hexagonal pore arrangement was obtained for porous anodic alumina subjected to oxide dissolution treatment for three minutes.

You might also be interested in these eBooks
Nanoscience, Nanotechnology, and Nanoengineering: Fundamentals and Applications View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1109)

Pages:

69-72

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1109.69

Citation:

Cite this paper

Online since:

June 2015

Authors:

Chun Hong Voon*, Mohd Nazree B. Derman, Kai Loong Foo, M. Nuzaihan, Uda Hashim

Keywords:

Anodizing, Fast Fourier Transform Analysis, Oxalic Acid, Oxide Dissolution Treatment, Porous Anodic Aluminium Oxide

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] F. Keller, M.S. Hunter, and D.L. Robinson, Structural features of oxide coatings on aluminium, J. Electrochem. Soc. 100 (1953), 411-419.

DOI: 10.1149/1.2781142

Google Scholar

[2] S. Ono and N. Masuko, Evaluation of pore diameter of anodic porous films formed on aluminium, Surf. Coat. Technol. 169 (2003), 139-142.

DOI: 10.1016/s0257-8972(03)00197-x

Google Scholar

[3] H. Masuda and K. Fukuda, Ordered metal nanohole arrays made by a two-step replication of honeycomb structures of anodic alumina, Science. 268 (1995), 1466-1468.

DOI: 10.1126/science.268.5216.1466

Google Scholar

[4] N. Kwon, K. Kim, J. Heo, and I. Chung, Fabrication of ordered anodic aluminum oxide with matrix arrays of pores using nanoimprint, J. Vac. Sci. Technol. A 27 (2009), 803-807.

DOI: 10.1116/1.3139884

Google Scholar

[5] C.Y. Liu, A. Datta, and Y.L. Wang, Ordered anodic alumina nanochannels on focused-ion-beam-prepatterned aluminum surfaces, Appl. Phys. Lett. 78 (2001), 120-122.

DOI: 10.1063/1.1335543

Google Scholar

[6] G.H. Jeong, S.K. Lim, J.K. Park, D. Lee, B.K. Lee, and S.J. Suh, Microprocesses and Nanotechnology, 2007 Digest of papers (2007),192-193 .

Google Scholar

[7] L. Zaraska, G.D. Sulka, J. Szeremeta, and M. Jaskuła, Porous anodic alumina formed by anodization of aluminum alloy (AA1050) and high purity aluminium, Electrochim. Acta 55 (2010), 4377-4386.

DOI: 10.1016/j.electacta.2009.12.054

Google Scholar

[8] Tsangaraki-Kaplanoglou, S. Theohari, T. Dimogerontakis, Y.-M. Wang, H.-H. Kuo, and S. Kia, Effect of alloy types on the anodizing process of aluminium, Surf. Coat. Technol. 200 (2006), 2634-2641.

DOI: 10.1016/j.surfcoat.2005.07.065

Google Scholar

[9] C. H. Voon, M. N. Derman, and U. Hashim, Effect of manganese content on the fabrication of porous anodic alumina, J.Nanomater. 2012 (2012), 1-9.

DOI: 10.1155/2012/752926

Google Scholar

[10] C. H. Voon, M. N. Derman, U. Hashim, K. R. Ahmad, and K. L. Foo, Effect of temperature of oxalic acid on the fabrication of porous anodic alumina from Al-Mn alloys, J.Nanomater. 2013 (2013), 1-8.

DOI: 10.1155/2013/167047

Google Scholar

[11] C. H. Voon, M. N. Derman, U. Hashim, and K. L. Foo, Effect of anodizing voltage on the formation of porous anodic alumina on Al-0.5wt% Mn alloys, Adv. Mat. Res. 626 (2013), 610-614.

DOI: 10.4028/www.scientific.net/amr.925.455

Google Scholar

[12] C. H. Voon, M. N. Derman, U. Hashim and K. R. Ahmad, Effect of anodizing voltage on the growth kinetics of porous anodic alumina on Al-0.5 wt% Mn alloys, Adv. Mat. Res. 795 (2013), 56-59.

DOI: 10.4028/www.scientific.net/amr.795.56

Google Scholar

[13] C. H. Voon, M. N. Derman, U. Hashim, and K. L. Foo and T. Adam, Effect of anodizing voltage on the morphology and growth kinetics of porous anodic alumina on Al-0.5 wt% Mn alloys, Adv. Mat. Res. 832 (2014), 101-106.

DOI: 10.4028/www.scientific.net/amr.832.101

Google Scholar

[14] W. J. Stepniowski, D. Zasada, & Z. Bojar, Synthesis of anodic aluminum oxide (AAO) at relatively high temperatures. Study of the influence of anodization conditions on the alumina structural features, Surf. Coating Tech. 206(2011), 265-272.

DOI: 10.1016/j.surfcoat.2011.07.020

Google Scholar

[15] K. Nielsch, J. Choi, K. Schwirn, R. B. Wehrspohn, & U. Gösele, Self-ordering regimes of porous alumina:  the 10 porosity rule, Nano Lett. 2 (2002), 677-680.

DOI: 10.1021/nl025537k

Google Scholar

[16] C.H. Voon, M.N. Derman, U. Hashim, K.R. Ahmad & L.N. Ho, A simple one-step anodising method for the synthesis of ordered porous anodic alumina, J. Exp. Nanosci. 9 (2014), 106-112.

DOI: 10.1080/17458080.2011.630151

Google Scholar

[17] Y. L. Rao, V. Anandan, & G. Zhang, FFT analysis of pore pattern in anodized alumina formed at various conditions, J. Nanosci. Nanotechnol. 5 (2005), 2070-2075.

DOI: 10.1166/jnn.2005.509

Google Scholar

[18] L. Ba, & W. S. Li, Influence of anodizing conditions on the ordered pore formation in anodic alumina, Phys. D: Appl. Phys 33(2000), 2527-2531.

DOI: 10.1088/0022-3727/33/20/302

Google Scholar
