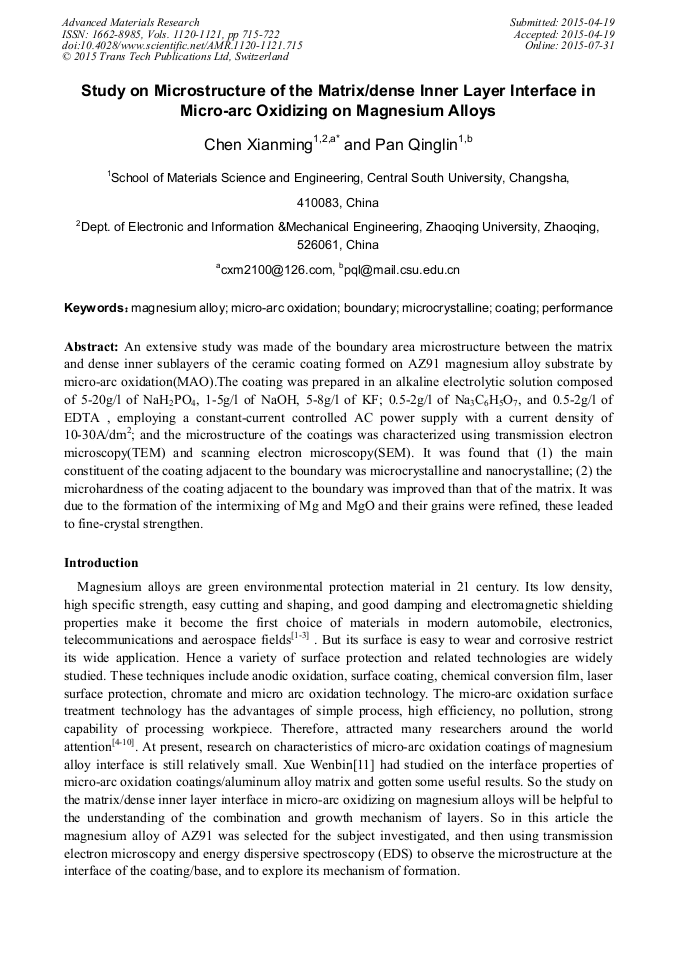

Study on Microstructure of the Matrix/Dense Inner Layer Interface in Micro-Arc Oxidizing on Magnesium Alloys

Abstract:

An extensive study was made of the boundary area microstructure between the matrix and dense inner sublayers of the ceramic coating formed on AZ91 magnesium alloy substrate by micro-arc oxidation(MAO).The coating was prepared in an alkaline electrolytic solution composed of 5-20g/l of NaH₂PO₄, 1-5g/l of NaOH, 5-8g/l of KF; 0.5-2g/l of Na₃C₆H₅O₇, and 0.5-2g/l of EDTA , employing a constant-current controlled AC power supply with a current density of 10-30A/dm²; and the microstructure of the coatings was characterized using transmission electron microscopy(TEM) and scanning electron microscopy(SEM). It was found that (1) the main constituent of the coating adjacent to the boundary was microcrystalline and nanocrystalline; (2) the microhardness of the coating adjacent to the boundary was improved than that of the matrix. It was due to the formation of the intermixing of Mg and MgO and their grains were refined, these leaded to fine-crystal strengthen.

• Periodical: Advanced Materials Research (Volumes 1120-1121)
• Pages: 715-722
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1120-1121.715
• Online since: July 2015
• Authors: Xian Ming Chen*, Qing Lin Pan
• Keywords: Boundary, Coating, Magnesium Alloy, Micro-Arc Oxidation, Microcrystalline, Performance

References

[1] Ding Wenjiang, Fu Penghuai, Peng Liming, etal. Advanced magnesium alloys and their applications in aerospace. Spacecraft Environment Engineering, 2011 , 2(2011)103-109.

[2] DING Wenjiang, WU Yujuan, PENG Liming, etal. Research and application development of advanced magnesium alloys. Materials China, 2010, 8(2010)37-45.

[3] ZHANG Chunxiang, CHEN Peilei, CHEN Haijun, etal. Application and research progress of magnesium alloys in automobile industry[J]. Foundry Technology, 2008, 4(2008) 531-535.

[4] ZHANG R F. Film formation in the second step of micro-arc oxidation on magnesium alloys. Corrosion Science, 52(2010)1285−1290.

DOI: 10.1016/j.corsci.2009.12.025

[5] WEI Tong, YAN Fengyuan, TIAN Jun. Characterization and wear- and corrosion-resistance of microarc oxidation ceramic coatings on aluminum alloy. Journal of Alloys and Compounds, 389 (2005)169-176.

DOI: 10.1016/j.jallcom.2004.05.084

[6] Salih Durdu, Metin Usta. Characterization and mechanical properties of coatings on magnesium by mico arc oxidation. Applied Surface Science, 261 (2012)774– 782.

DOI: 10.1016/j.apsusc.2012.08.099

[7] Jinghua Jiang, Qi Zhou, Jisen Yu, etal. Comparative analysis for corrosion resistance of micro-arc oxidation coatings on coarse-grained and ultra-fine grained AZ91D Mg alloy. Surface & Coatings Technology, 216 (2013)259-266.

DOI: 10.1016/j.surfcoat.2012.11.055

[8] GUO Hui-xia, MA Ying, WANG Jing-song, etal. Corrosion behavior of micro-arc oxidation coating on AZ91D magnesium alloy in NaCl solutions with different concentrations. Trans. Nonferrous Met. Soc. China , 22 (2012)1786-1793.

DOI: 10.1016/s1003-6326(11)61388-5

[9] Da Forno, M. Bestetti. Effect of the electrolytic solution composition on the performance of micro-arc anodic oxidation films formed on AM60B magnesium alloy. Surface & Coatings Technology, 205 (2010)1783–1788.

DOI: 10.1016/j.surfcoat.2010.05.043

[10] WANG Ping, LIU Dao-xin, LI Jian-ping, etal. Growth process and corrosion resistance of micro-arc oxidation coating on Mg-Zn-Gd magnesium alloys. Trans. Nonferrous Met. Soc. China, 20 (2010)2198−2203.

DOI: 10.1016/s1003-6326(09)60442-8

[11] XUE Wenbin, DENG Zhiwei, CHEN Ruyi, etal. Distributions of hardness and elastic modulus near the interface between aluminum alloy substrate and microarc oxidation coating. ACTA Metallurgic Sinica, 6(1999) 638-642.

[12] VAN T. B., BROWN S.D., and WIRTZ G. P. Mechanism of anodic spark deposition. Am. Ceram. Soc. Bull., 6 (1977)563~566.

[13] Krysmann W., Kurze P., Dittrich K.H., etal. Process characteristics and parameters of anodic oxidation by spark discharge(ANOF)[J]. Cryst Res Techol， 7 (1984)973-979.

DOI: 10.1002/crat.2170190721

[14] Yerokhin A.L., Nie X., Leyland A., etal. Plasma electrolysis for surface engineering[J]. Surface and Coatings Technology, 122 (1999): 73-93.

DOI: 10.1016/s0257-8972(99)00441-7

[15] YAN Yun-qi, DENG Ju, ZHANG Ting-jie, etal. Superplastic behavior of AZ91 alloy with coarse grains[J]. Transactions of Materids and Heat Treatment, 25(2004)26-29.
