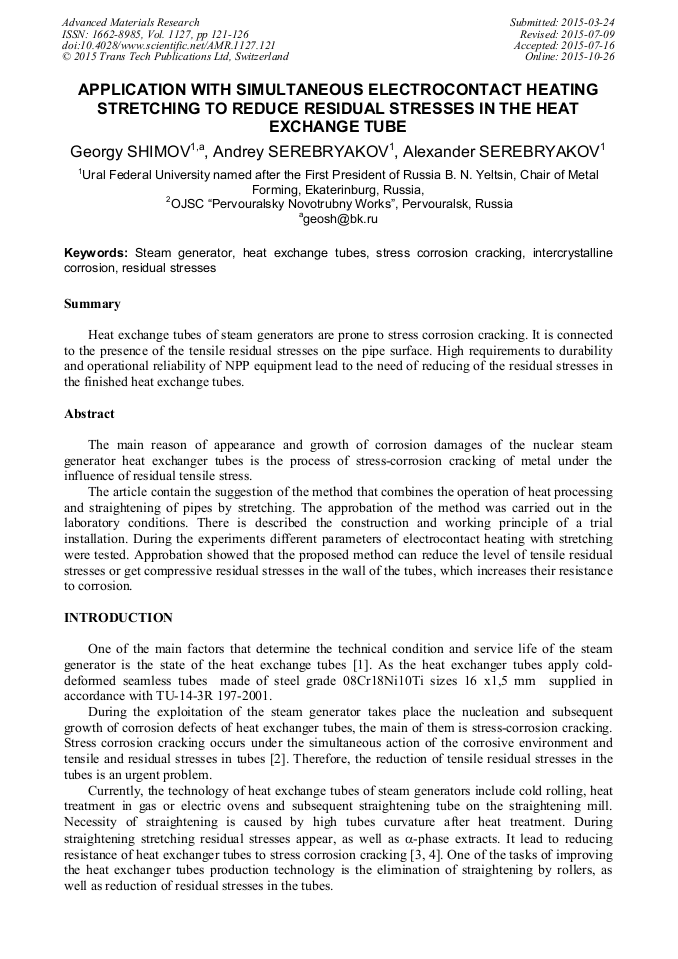

Application with Simultaneous Electrocontact Heating Stretching to Reduce Residual Stresses in the Heat Exchange Tube

Abstract:

The main reason of appearance and growth of corrosion damages of the nuclear steam generator heat exchanger tubes is the process of stress-corrosion cracking of metal under the influence of residual tensile stress.The article contain the suggestion of the method that combines the operation of heat processing and straightening of pipes by stretching. The approbation of the method was carried out in the laboratory conditions. There is described the construction and working principle of a trial installation. During the experiments different parameters of electrocontact heating with stretching were tested. Approbation showed that the proposed method can reduce the level of tensile residual stresses or get compressive residual stresses in the wall of the tubes, which increases their resistance to corrosion.Keywords:Steam generator, heat exchange tubes, stress corrosion cracking, intercrystalline corrosion, residual stresses

• Periodical: Advanced Materials Research (Volume 1127)
• Pages: 121-126
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1127.121
• Online since: October 2015
• Authors: Georgy Shimov*, Andrey Serebryakov, Aleksander Serebryakov
• Keywords: Heat Exchange Tubes, Intercrystalline Corrosion, Residual Stresses, Steam Generator, Stress Corrosion Cracking

References

[1] BAKIROV M.B., KLESHHUK S.M., NEMYTOV D.S. CHUBAROV S.V., BEREZANIN A.A. Analysis of the state, modes of operation and a design of the generator NPP for example, the power unit №2 of Kalinin NPP and №3 Balakovo NPP. Ensuring the safety of nuclear power plants. Podol'sk: «Gidropress», (2007).

[2] AZARENKOV N.A., LITOVCHENKO S.V., NEKLJUDOV I.M., STOEV P.I. Corrosion and Protection of Metals. Chemical corrosion of metals. Kharkiv: V. N. Karazin Kharkiv National University, 2007, 187 p.

[3] GINDIN I.A., NEKLJUDOV I.M., NETESOV V.M., STAROLAT M.P. Effect of alternating load on the martensitic transformation of austenitic steel. Problems of the strength. № 9, 1976, s. 76–78.

DOI: 10.1007/bf01529859

[4] NEKLJUDOV I.M., NETESOV V.M. Some possible ways of influence on the phase composition, structure and properties of austenitic steels. Problems of Atomic Science and Technology. №5, 2005, s. 164–167.

[5] BIRGER I.A. Residual stresses. Moscow: State Scientific and Technical Publishing engineering literature, 1963, 233 p.

[6] SHIMOV G.V., BURKIN S.P., SEREBRJAKOV AN. V., SEREBRJAKOV AL. V., ISHAKOV R.F. Method of heat treatment and straightening of pipes for nuclear steam generators. Chernye metally. №11, 2013, s. 31-37.

[7] BURKIN S.P., SHIMOV G.V., SEREBRJAKOV AL. V., SEREBRJAKOV AN. V. Electrocontact heating pipes with stretching. Proceedings of the Conference Metal Week in Moscow,. Moscow: MISIS, November, 2012 VNIIMETMASH, 2013, s. 552-562.
