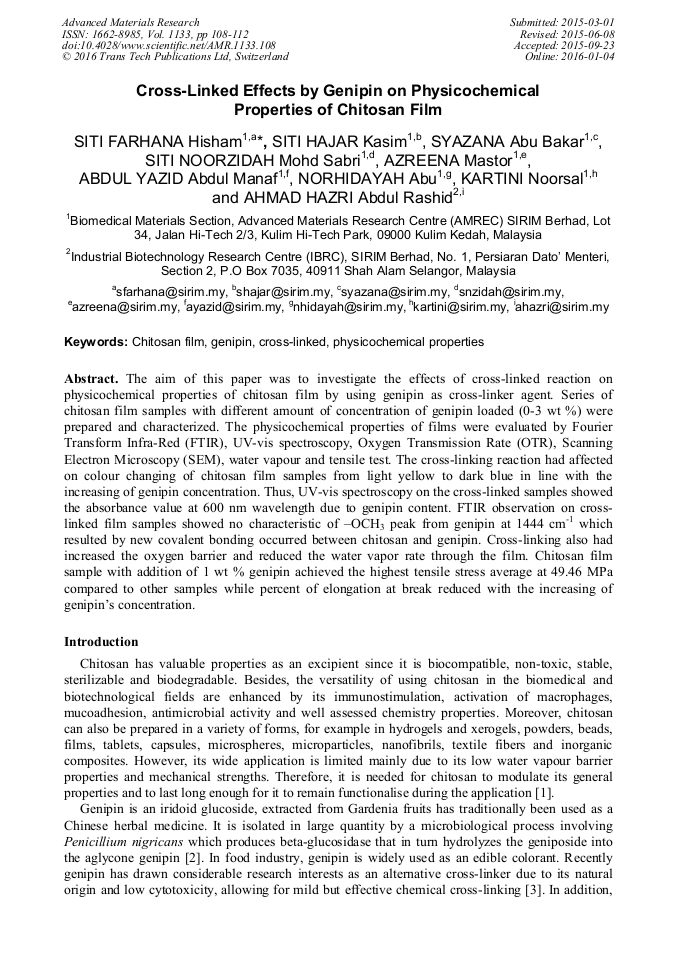

Cross-Linked Effects by Genipin on Physicochemical Properties of Chitosan Film

Abstract:

The aim of this paper was to investigate the effects of cross-linked reaction on physicochemical properties of chitosan film by using genipin as cross-linker agent. Series of chitosan film samples with different amount concentration of genipin loaded (0-3 wt %) were prepared and characterized. The physicochemical properties of films were evaluated by Fourier Transform Infra-red (FTIR), UV-vis spectroscopy, Oxygen Transmission Rate (OTR), Scanning Electron Microscopy (SEM), water vapour and tensile test. The cross-linking reaction had affected on colour changing of chitosan film samples from light yellow to dark blue in line with the increasing of genipin concentration. Thus, UV-vis spectroscopy on the cross-linked samples showed the absorbance value at 600 nm wavelength due to genipin content. FTIR observation on cross-linked film samples showed no characteristic of –OCH₃ peak from genipin at 1444 cm^-1 which resulted by new covalent bonding occurred between chitosan and genipin. Cross-linking also had increased the oxygen barrier and reduced the water vapor rate through the film. Chitosan film sample with addition of 1 wt% genipin achieved the highest tensile stress average at 49.46 MPa compared to other samples while percent of elongation at break reduced with the increasing of genipin concentration loaded

• Periodical: Advanced Materials Research (Volume 1133)
• Pages: 108-112
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1133.108
• Online since: January 2016
• Authors: Siti Farhana Hisham*, Siti Hajar Kasim, Syazana Abu Bakar, Siti Noorzidah Mohd Sabri, Azreena Mastor, Abdul Yazid Abdul Manaf, Norhidayah Abu, Kartini Noorsal, Ahmad Hazri Abdul Rashid
• Keywords: Chitosan Film, Cross-Linked, Genipin, Physicochemical Properties

References

[1] A.A. Aldana, A. Gonzalez, C.M. Strumia, M. Martinelli, Preparation and characterization of chitosan/genipin/poly(N-vinyl-2-pyrrolidone) films for controlled release drugs, Materials Chemistry and Physics. 134 (2012) 317-324.

DOI: 10.1016/j.matchemphys.2012.02.071

[2] Y. Liu, I. Kim. Characterization and antibacterial properties of genipin cross-linked chitosan poly(ethylene glycol)/ZnO/Ag nanocomposites, Carbohydrate Polymers. 89. 111-116.

DOI: 10.1016/j.carbpol.2012.02.058

[3] H. Chen, W. Ouyang, C. Martoni, S. Prakash, Genipin cross-linked polymeric alginate-chitosan microcapsules for oral delivery: in-vitro analysis, International Journal of Polymer Science. (2009).

DOI: 10.1155/2009/617184

[4] E. Mirzaei, R. Faridi-Majidi, M.A. Shokrgozar, F.A. Paskiabi, Genipin cross-linked electrospun chitosan-based nanofibrous mat as tissue engineering scaffold. Nanomedicine Journal. 1 (2014) 137-146.

[5] J. Li, N. Ren, J. Qiu, X. Mou, H. Liu, Graphene oxide-reinforced biodegradable genipin-cross-linked chitosan fluorescent biocomposite film and its cytocompatibility, International Journal of Nanomedicine. 8 (2013) 3415-3426.

DOI: 10.2147/ijn.s51203

[6] Y. Liu, H-I. Kim, Characterization and antibacterial properties of genipin cross-linked chitosan poly(ethylene glycol)/ZnO/Ag nanocomposites, Carbohydrate Polymers. 89 111-116.

DOI: 10.1016/j.carbpol.2012.02.058

[7] A.A. Aldana, A. Gonzalez, C.M. Strumia, M. Martinelli, Preparation and characterization of chitosan/genipin/poly(N-vinyl-2-pyrrolidone) films for controlled release drugs, Materials Chemistry and Physics. 134 (2012) 317-324.

DOI: 10.1016/j.matchemphys.2012.02.071

[8] S. Liang, L. Liu, Q. Huang, K.L. Yam, Preparation of single or double network chitosan/poly(vinyl alcohol) gel film through selectively cross-linking method, Carbohydrate Polymers. 77 (2009) 718-724.

DOI: 10.1016/j.carbpol.2009.02.007
